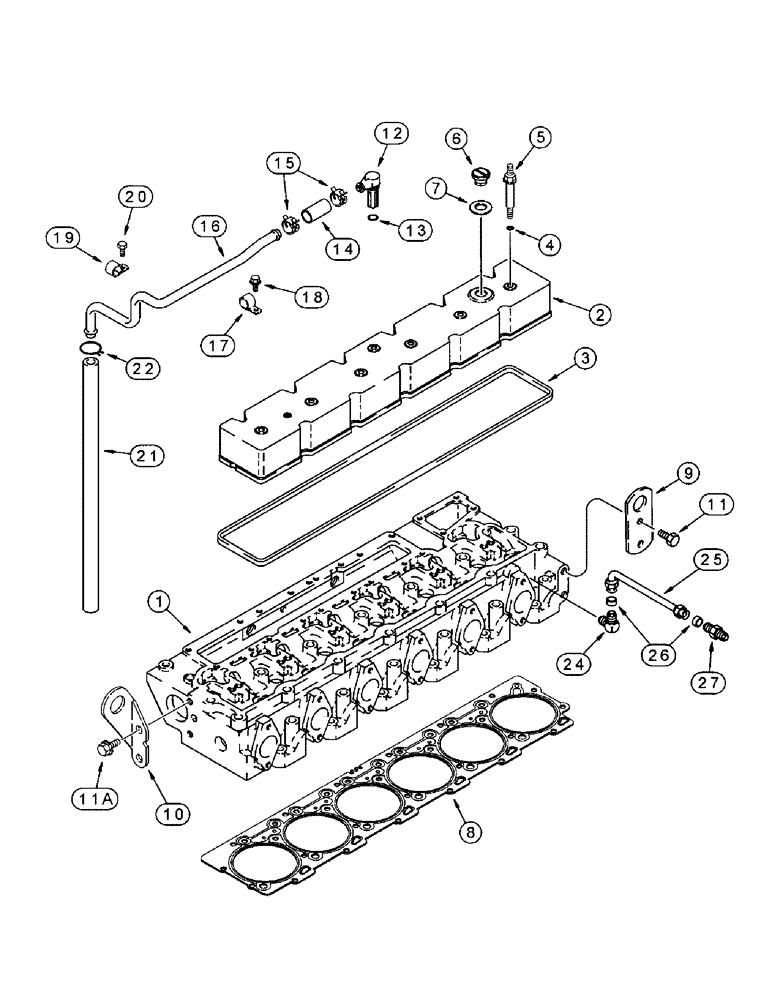

Запчасти Case IH 8950 (2-040) - CYLINDER HEAD COVER, 6T-830 AND 6TA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see page 2-45 and 2-47 for correct assembly and component parts

1шт.

2

J930903

VALVE COVER

replaces J927907 cover

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

5

J922639

STUD

STUD - valve cover and tube, wastegate actuator mounting

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

cap

1шт.

8

J935585

GASKET

cylinder head, standard, replaces J928168 gasket

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

0.25 mm thicker, Replaces J931026 gasket

1шт.

8

J935587

CYLINDER HEAD GASKET,2.38mm Thk

0.50 mm thicker, Replaces J931027

1шт.

9

J907861

LIFTING EYE

lifting, front

1шт.

10

J906440

LIFTING EYE

lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads, Front lifting bracket to cylinder head

2шт.

11a

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy, Rear lifting bracket to cylinder head

2шт.

12

J920497

ELBOW

CONNECTOR - 90 degree, breather vent, no longer available, order J935113 connector and item 13, J934865 O-ring

1шт.

12

J935113

ELBOW

CONNECTOR - 90 degree, breather vent, replaces J920497 connector, not shown

1шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

If used with J920497 connector

1шт.

13

J934865

SEAL

17.4 mm ID x 4.3 mm, If used, used with J935113 connector, not shown

1шт.

14

J930827

HOSE,51.00 mm

To Connector, Replaces J918610

1шт.

15

J934496

CLIP

CLAMP - spring type, replaces J918163 clamp

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Tube retaining

1шт.

18

J912072

SELF-TAP SCREW

Hex washer head, special, 8 - 1.25 x 15 mm

1шт.

19

A77538

CLIP

CLAMP - P-style, tube retaining

1шт.

20

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

21

J918616

TUBE,680.00 mm

Tube End, if Used

1шт.

21

H353854

HOSE ASSY.

813 mm (32 inch) long, if used, cut from 364359C2 bulk hose

1шт.

22

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

If Used

1шт.

22

214-1315

HOSE CLAMP,#15, 15/16", Spring

If Used

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW - 90 degree, compression, 1/4 tube OD x 1/8 inch PT

1шт.

25

J924589

TUBE,6.35 mm OD x 112.6 mm L

vent, air, Includes: Ref. 26

1шт.

26

222-153

SLEEVE,1/4" Tube

2шт.

27

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT, tube to thermostat housing

1шт.
