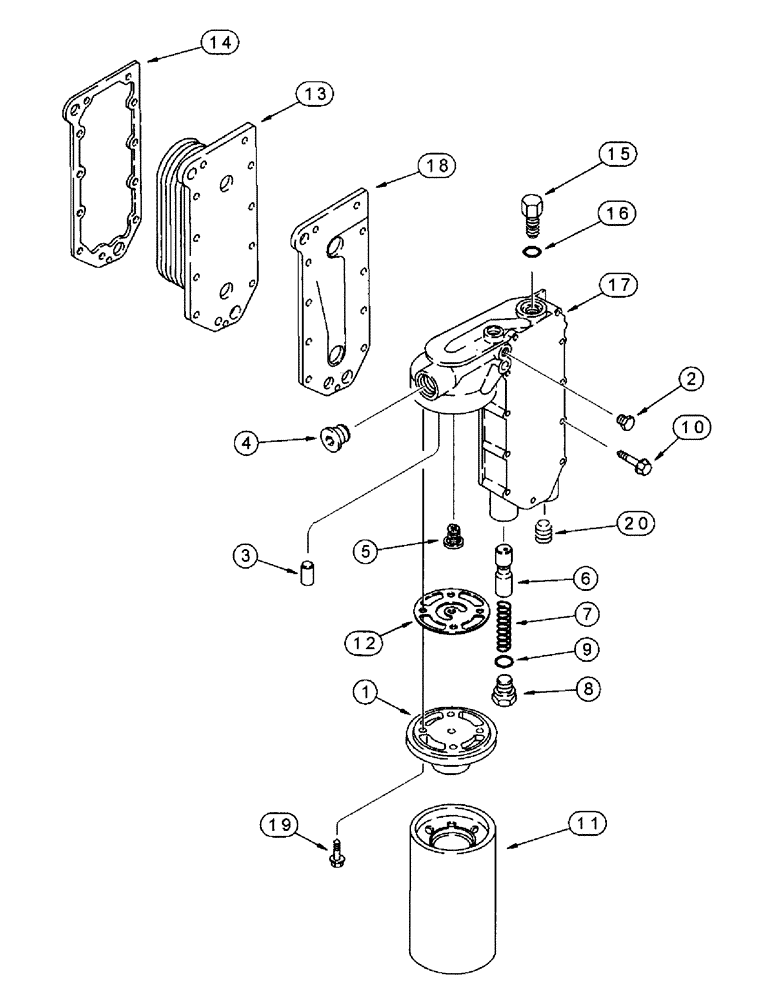

Запчасти Case IH 8950 (2-036) - OIL FILTER AND COOLER, 6T-830 AND 6TA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J918334

FILTER HEAD

Oil

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

dowel, locating

1шт.

4

A77505

PLUG

hex socket, 3/4 inch PT, filter head

1шт.

5

J933615

VALVE

relief, pressure, replaces J927622 valve

1шт.

6

J918532

PLUNGER

regulator

1шт.

7

A77541

SPRING

compression

1шт.

8

J919016

PLUG

hex, special, 24 mm - 1.50, regulator, required with J922882 cover, Includes: item 9 O-ring, if used

1шт.

8a

J931084

PLUG

hex, special, 24mm - 1.50, regulator, required with J931077 cover, Includes: item 9A seal, if used, not shown, Includes: Ref. 9, 9A

1шт.

9

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

Used with J919016 plug

1шт.

9a

J930911

O-RING,0.07" Thk x 0.8" ID

SEAL - used with J931084 plug, not shown

1шт.

10

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

Heavy, Oil filter head to cylinder block

11шт.

11

J919562

ENGINE OIL FILTER

oil, cartridge, engine

1шт.

12

J921605

GASKET

filter head

1шт.

13

J918175

CORE, RADIATOR

1шт.

14

J918174

GASKET,0.71mm Thk

cooler core

1шт.

J934410

BY-PASS VALVE

THERMOSTAT ASSEMBLY - temperature, replaces J923477 thermostat assembly, Includes: Ref. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

THERMOSTAT - temperature

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

sealing

1шт.

17

J922882

COVER

oil cooler, must use item 8, J919016 plug with this cover, no longer available, order J931077 cover below and item 8A, J931084 plug

1шт.

17

J931077

COVER

oil cooler, must use item 8A, J931084 plug with this cover, replaces J922882 cover

1шт.

18

J929011

GASKET,1.19mm Thk

cooler cover, oil

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

hex socket headless, 1/2 inch PT, Water drain

1шт.
