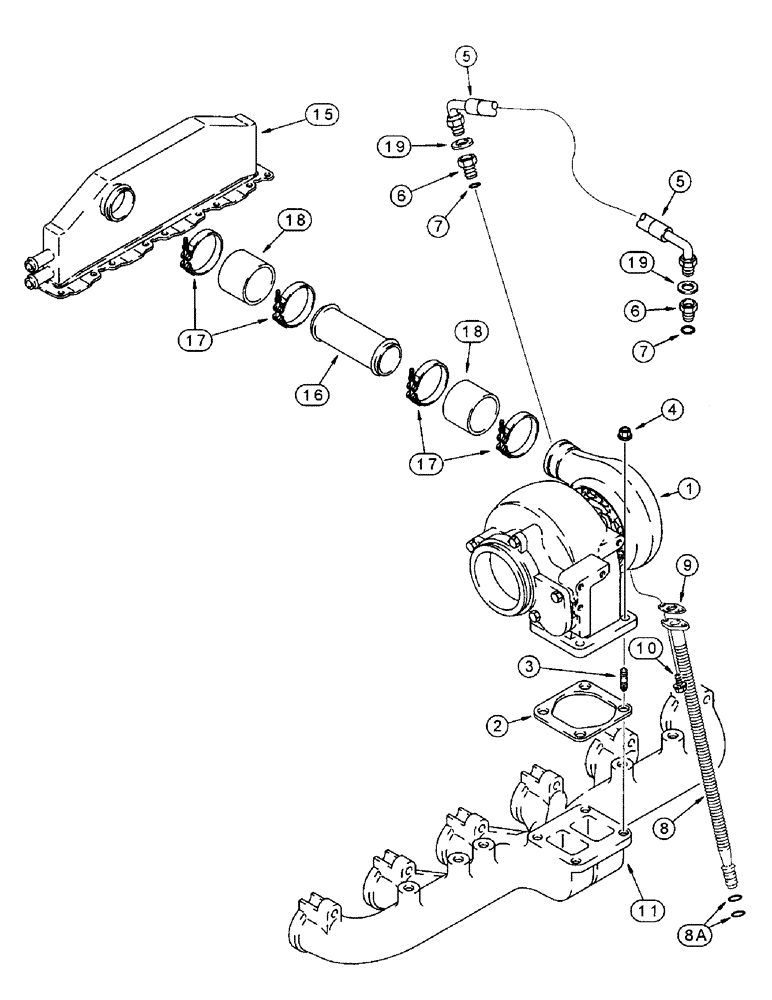

Запчасти Case IH 8950 (2-030) - TURBOCHARGER SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, 8940 AND 8950 TRACTORS ONLY (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, new parts list page 2-33 for component parts

1шт.

Part of Turbocharger Assembly Kit P/N J802859, JR802859, J802826 & JR802826

1шт.

2

J911941

GASKET

mounting, turbocharger

1шт.

Part of Turbocharger Assembly Kit P/N J802859, JR802859, J802826 & JR802826

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5

4шт.

5

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 7

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

J928629

TUBE

oil drain, Includes: Ref. 8A

1шт.

8a

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

J942725

GASKET

turbo oil drain, replaces J819378 gasket

1шт.

Part of Turbocharger Assembly Kit P/N J802859, JR802859, J802826 & JR802826

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J932183

EXHAUST MANIFOLD

exhaust, see Figure 2-26 for mounting parts

1шт.

15

J924732

AFTERCOOLER

air intake, see Figure 2-26 for mounting and water tubes

1шт.

16

J914943

TUBE,63.5 mm OD x 140 mm L

crossover, air

1шт.

17

J924386

COLLAR CLAMP

adjustable, special

4шт.

18

J916437

HOSE

Crossover Tube

2шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

J536309

TURBOCHARGER

TURBOCHARGER

1шт.

JR536309

REMAN-TURBOCHARGER

Remanufactured, Turbocharger

1шт.

JC536309

CORE-TURBOCHARGER

Return Part Number

1шт.

J802859

TURBOCHARGER

KIT - assembly, new (8940) Includes: Ref. 1, 2 & 9

1шт.

JR802859

REMAN-TURBOCHARGER

KIT - assembly, (8940) Includes: Ref. 1, 2 & 9

1шт.

JC537130

CORE-TURBOCHARGER

Return Part Number, (Core for Reman P/N JR802859)

1шт.

J802826

TURBOCHARGER

KIT - assembly, new (8950) Includes: Ref. 1, 2 & 9

1шт.

JR802826

REMAN-TURBOCHARGER

KIT - assembly, (8950) Includes: Ref. 1, 2 & 9

1шт.

JC535787

CORE-TURBOCHARGER

Return Part Number

1шт.
