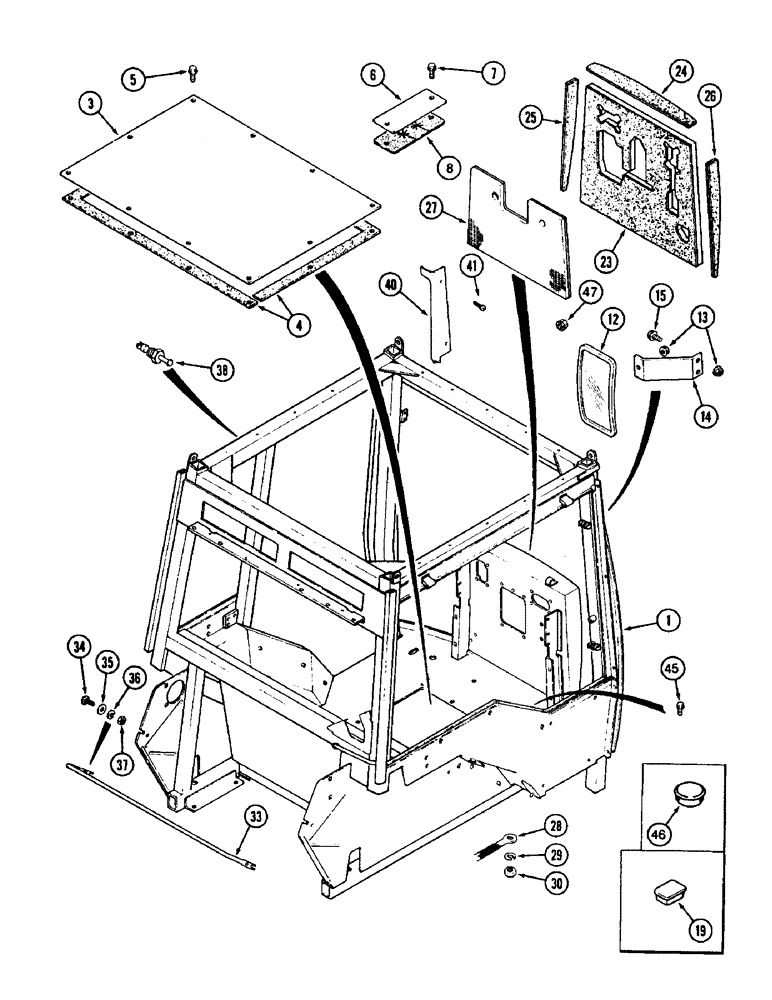

Запчасти Case IH 8950 (9-070) - CAB FRAME (09) - CHASSIS/ATTACHMENTS

A67974

CAB

ASSEMBLY - stripped, tractor, replaces A67965 cab

1шт.

Stripped cab consists of: Frame weldment, interior and exterior trim, air conditioning, heater, fenders, glass and door.

1шт.

A67975

CAB

ASSEMBLY - fully equipped, tractor, replaces A67963

1шт.

Fully equipped cab consists of: Frame weldment, interior and exterior trim, air conditioning, heater, fenders, glass, door, deluxe seat, fuel tank, and complete instrumentation and console controls.

1шт.

1

236996A3

FRAME

ASSEMBLY - cab, not shown

1шт.

3

96964C1

PLATE ASSY.

floor access

1шт.

4

1971260C1

SEAL

floor access plate

2шт.

5

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

10шт.

6

284854A1

PLATE ASSY.

implement cable, cover foot throttle opening

1шт.

6a

353-430

PLUG,1/4" Hole, Nylon

flatface pryout, 1/4 inch opening, units without foot throttle, not shown

2шт.

7

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

2шт.

8

A165354

SEAL

plate

1шт.

12

A177462

MIRROR

rear view, includes mounting hardware

1шт.

13

1330064C1

FLANGE NUT

hex flange, self-locking, polyseal, 5/16 inch NC

3шт.

14

96845C1

BRACKET

mirror

1шт.

15

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

self-locking, hex flange, special, 5/16 NC x 3/4 inch

2шт.

19

97028C1

PLUG

post, right

1шт.

23

1334281C3

INSULATOR

PAD - insulation, firewall, front

1шт.

24

1334282C2

INSULATOR

PAD - insulation, upper

1шт.

25

1334283C2

INSULATOR

PAD - insulation, firewall, left

1шт.

26

1334284C2

INSULATOR

PAD - insulation, firewall, right

1шт.

27

97027C1

PAD

firewall

1шт.

28

91963C1

GROUND STRAP

1шт.

29

892-11010

LOCK WASHER,M10

1шт.

30

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

33

251205A1

HANDLE

rear, models without remote hitch switch, see Figure 8-28, item 13 for handle on models with remote hitch switch

1шт.

34

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

35

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

4шт.

36

492-11031

LOCK WASHER,5/16"

4шт.

37

425-105

NUT,5/16"-18, G5

4шт.

38

136893A1

SWITCH

dome lamp, with straight male blade terminals, if used

1шт.

40

96720C2

COVER ASSY

front cab post, left side lower

1шт.

41

1344112C1

SCREW,Cross Rec Pan Hd, 10" - 24 x 1"

Phillips, self-tapping, polyseal (Black)

2шт.

41

1990953C1

SELF-TAP SCREW

Phillips washer, No. 10-24 x 1 inch (Gray)

2шт.

45

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

Hex flange, 6 - 1.0 x 12 mm

2шт.

46

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with interior mirror

1шт.
