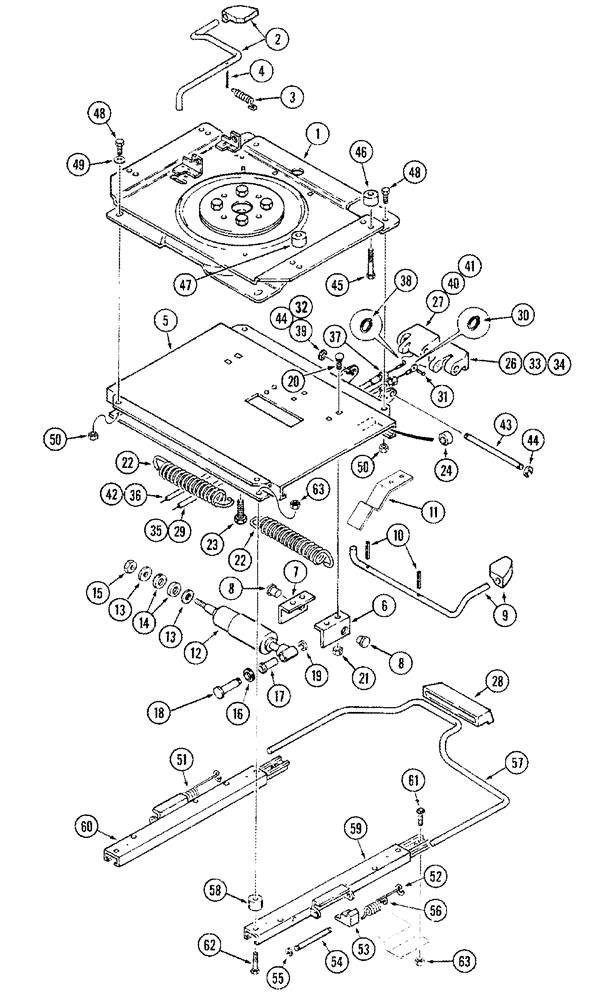

Запчасти Case IH 8950 (9-056) - DELUXE AIR SUSPENSION SEAT, SWIVEL PLATE AND SLIDES (09) - CHASSIS/ATTACHMENTS

1999936C4

SEAT ASSY.

deluxe air suspension, parts list Figures 9-52 - 9-64, Includes: Ref. 1-28, and Kits

1шт.

132861A4

KIT

suspension, service, parts list also on Figures 9-56 - 9-64, Includes: Ref. 1-28, and Kits

1шт.

1

134148A1

SEAT SUPPORT

PLATE - swivel, complete, Includes: Ref. 2, 3, 4

1шт.

2

135511A1

ROD, ADJUSTMENT

ROD, ADJUSTING swivel, includes knob

1шт.

3

A47375

SPRING

detent

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - cotter

1шт.

5

132878A3

ISOLATOR

PLATE - lateral, complete, Includes: Ref. 6-25, and Kits

1шт.

278434A1

SET OF PARTS

KIT - lateral isolator control, includes (4) nuts, item 21, Includes: Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - latch mount, right-hand

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - latch mount, left-hand

1шт.

8

253593A1

BEARING

isolator rod, isolator rod

2шт.

9

135510A2

ROD, ADJUSTMENT

ROD, ADJUSTING isolator, includes knob

1шт.

10

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

2шт.

11

1344026C1

SPRING

latch

1шт.

1987219C2

SET OF PARTS

KIT - lateral isolator shock, includes shock absorber, (1) bearing, (2) bushings, (1) nut, (2) washers, (1) spacer and (1) retaining ring, Includes: Ref. 12-17

1шт.

12

NSS

NOT SOLD SEPARAT

ABSORBER- shock

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - rubber

2шт.

15

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

16

NSS

NOT SOLD SEPARAT

SPACER - shock mount

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - shock mount

1шт.

227546A1

KIT

KIT - shock, fore/aft, Includes: Ref. 12-17B

1шт.

12

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

14

A49679

BUSHING

rubber

2шт.

15

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

16

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - shock

1шт.

17a

231-1444

NUT,1/4"-20, GB

Not Shown

1шт.

17b

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Not shown

1шт.

18

1344025C1

PIVOT PIN

clevis, shock mount

1шт.

19

100-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

21

230-4215

NUT,5/16"-18, GA

Hex

4шт.

1987290C1

SET OF PARTS

KIT - spring, lateral isolator, includes (2) springs and (1) bolt, Includes: Ref. 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - lateral

2шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

135512A3

PACKAGE

KIT - roller bearing, isolator, includes (4) narrow rollers, (2) wide rollers, (1) bushing, (1) spacer and (1) retaining ring, Includes: Ref. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

ROLLER - bearing, narrow

4шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - bearing, wide, not shown

2шт.

134143A1

SET OF PARTS

KIT - control knob, INCLUDES REFS 26, 27, 28

1шт.

26

NSS

NOT SOLD SEPARAT

KNOB - damping adjustment

1шт.

27

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator

1шт.

28

180587A1

HANDLE

KNOB - slide control, fore/aft

1шт.

132861A4

KIT

supension, service, parts list on pages 9-57 - 9-65, Includes: Ref. 29-56, and Kits

1шт.

132870A1

SET OF PARTS

KIT - isolator lock cable, Includes: Ref. 29-35

1шт.

29

NSS

NOT SOLD SEPARAT

CABLE - isolator lock

1шт.

30

103-1412

SNAP RING,#12, Ext

2шт.

31

NSS

NOT SOLD SEPARAT

RIVET -

1шт.

32

100-3331

SNAP RING,#X31, .243" Dia, E-Type

2шт.

33

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

34

NSS

NOT SOLD SEPARAT

BEARING - ball

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

132869A1

KIT

KIT - ride firmness control, Includes: Ref. 36-42

1шт.

36

NSS

NOT SOLD SEPARAT

CABLE - shock adjust

1шт.

37

231-1444

NUT,1/4"-20, GB

12шт.

38

103-1412

SNAP RING,#12, Ext

2шт.

39

100-3331

SNAP RING,#X31, .243" Dia, E-Type

2шт.

40

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

41

NSS

NOT SOLD SEPARAT

BEARING - ball

2шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

175088A1

PACKAGE

KIT - retainer, and detent spring, also includes (2) each of items 32, 33 and 34, Includes: Ref. 43, 44

1шт.

43

NSS

NOT SOLD SEPARAT

PIN - control knob pivot

1шт.

44

100-3331

SNAP RING,#X31, .243" Dia, E-Type

2шт.

45

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

46

187006A1

CUP

SPACER - 3/8 inch bolt size

2шт.

47

700711545

CUP WASHER

SPACER - 5/8 inch bolt size

2шт.

48

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

49

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

2шт.

50

231-4115

NUT,5/16"-18, GB

4шт.

51

135513A1

SPRING

torsion

1шт.

52

135514A1

SPRING

torsion

1шт.

53

NSS

NOT SOLD SEPARAT

BLOCK - spring

2шт.

54

NSS

NOT SOLD SEPARAT

PIN - torsion

2шт.

55

100-3325

SNAP RING,#25, .207" Dia, E-Type

2шт.

56

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

push-on type, 1/4 x 17/32 inch

2шт.

57

134146A1

CONTROL LEVER

slide

1шт.

58

134144A1

SPACER

plate

4шт.

132875A1

SLIDE

KIT - seat, Includes: Ref. 59-64

1шт.

59

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

60

NSS

NOT SOLD SEPARAT

SLIDE - locking, left-hand

1шт.

61

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

62

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

63

230-4215

NUT,5/16"-18, GA

Hex

8шт.

64

NSS

NOT SOLD SEPARAT

BOLT - 5/16 NC x 1-1/2 inch, not shown

1шт.

1344248C1

SLIDE

KIT - double locking, not illustrated, Includes: Slide, Slide, Bolt, Nut, Wash, Bolt, Wire

1шт.

NSS

NOT SOLD SEPARAT

SLIDE - locking with handle

1шт.

NSS

NOT SOLD SEPARAT

SLIDE - locking

1шт.

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

230-4215

NUT,5/16"-18, GA

Hex

8шт.

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

4шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

NSS

NOT SOLD SEPARAT

WIRE - slide latch

1шт.
