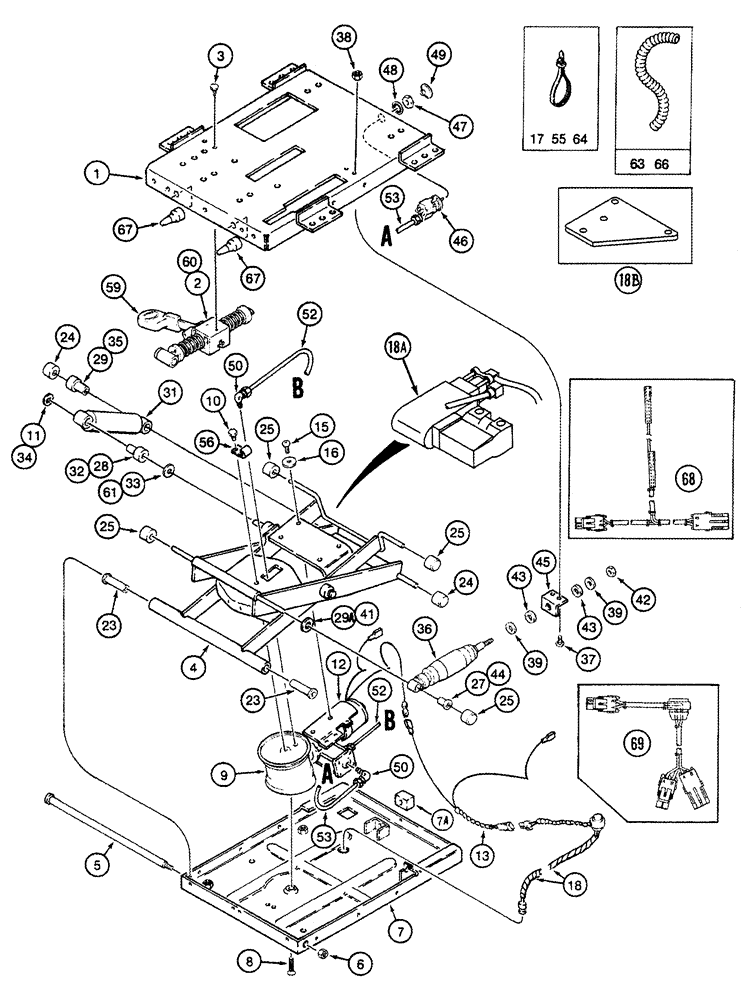

Запчасти Case IH 8950 (9-046) - STANDARD AIR SUSPENSION SEAT, SUSPENSION (09) - CHASSIS/ATTACHMENTS

1999934C2

SEAT ASSY.

standard air suspension, parts list Figures 9-42 - 9-50, Includes: Ref.1-19, and Kits, Mount, Screw, Nut, Screw, Spacer, Washer, Sleeve, Nut, Tube, and Harness

1шт.

241196A1

SUSPENSION

KIT - service, parts list Figures 9-46 - 9-50, replaces 1990648C5 kit, Includes: Ref. 1-18B, and Kits, Mount, Screw, Nut, Screw, Spacer, Washer, Sleeve, Nut, Tube, and Harness

1шт.

1

241189A1

HOUSING

upper, suspension, replaces 1990642C1 housing

1шт.

2

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, component parts not serviced separately, see Figure 9-50 for exploded view of parts

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

4

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

5

A49529

SHAFT

bushing tube

1шт.

6

231-4206

LOCK NUT,Hex, 3/8"-16, GB

Replaces 230-4216 nut

1шт.

7

1981834C1

HOUSING

lower, no longer available, order 226560A1 housing below, A45054 bumber and 132872A1 kit

1шт.

7

226560A1

HOUSING

lower, replaces 1981834C1 housing

1шт.

7a

A45054

BUMPER,Neoprene

seat, used with 226560A1 housing

1шт.

8

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

197793A1

SPRING

KIT - air, includes air spring, J-clip and (3) tie straps, Includes: Ref. 9, 9

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - air

1шт.

9

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

10

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

11

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

1999947C3

COMPRESSOR

KIT - used to service Sears model 215 seat air compressor on tractors without operator's presence system, no longer available, order 1999947C4 kit from which the wire harnesses have been removed, if used, Includes: Ref. 12-18

1шт.

12

NSS

NOT SOLD SEPARAT

COMPRESSOR - air, Sears model 215

1шт.

13

134237A2

HARNESS

compressor wire, without operator presence

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - 7/32 ID x 11/32 OD, not used, not shown

2шт.

15

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

2шт.

16

495-31022

WASHER,#10

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

18

134456A1

HARNESS

wire adapter, with grommet, without operator presence

1шт.

358903A1

COMPRESSOR

KIT - used to service Sears model 115 seat air compressor, if used, Includes: Ref. 18A, 18B, Mount, Screw, Nut, Screw, Spacer, Washer, Sleeve, Nut, Tue, and Harness

1шт.

18a

NSS

NOT SOLD SEPARAT

COMPRESSOR - air, Sears model 115

1шт.

18b

NSS

NOT SOLD SEPARAT

BRACKET - compressor mounting, adapter

1шт.

NSS

NOT SOLD SEPARAT

MOUNT - compressor, not shown

1шт.

NSS

NOT SOLD SEPARAT

SCREW - tapping, No. 8, not shown

2шт.

NSS

NOT SOLD SEPARAT

NUT - lock, No. 8, not shown

2шт.

NSS

NOT SOLD SEPARAT

SCREW - No. 8 x 1 inch, not shown

2шт.

NSS

NOT SOLD SEPARAT

SPACER - 7/32 ID x 11/32 OD, not shown

2шт.

495-31022

WASHER,#10

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE - not shown

2шт.

NSS

NOT SOLD SEPARAT

NUT - not shown

2шт.

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 inch, not shown

1шт.

NSS

NOT SOLD SEPARAT

HARNESS - wire, with male connector, not shown

1шт.

19

1981849C2

SHOCK ABSORBER

BUMPER - rubber, upper housing, not shown, see Figure 9-44, item 15 for bumper

2шт.

241196A1

SUSPENSION

KIT, service, parts list pages 9-47 - 9-51, replaces 1990648C5 kit, Includes: Ref. 20-45, and Kits

1шт.

1990647C2

KIT

KIT - boot, suspension, with buttons, not shown, see Figure 9-50 for illustration of boot kit, Includes: Ref. 20-22A

1шт.

20

NSS

NOT SOLD SEPARAT

BOOT - suspension, not shown

1шт.

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts, not shown, Includes: Ref. 21, 22, 22A

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - dome, not shown

3шт.

22

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic, not shown

23шт.

22a

NSS

NOT SOLD SEPARAT

CLIP - dart, plastic, not shown

3шт.

135512A3

PACKAGE

KIT - roller bearing, isolator, includes (4) narrow rollers, (2) wide rollers, (1) bushing, (1) spacer and (1) retaining ring (Items 25, 25A, 26 and 29A)

1шт.

180594A3

KIT

KIT - rollers and bearings, includes (2) bushings, (6) rollers, (1) push nut, (5) bearings and (2) spacers, INCLUDES REFS 23-30B

1шт.

23

A47760

BUSHING

TUBE - bearing, shaft

2шт.

24

1981788C1

SHIFTER ROLLER

suspension

2шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - bearing, wide, Delrin

2шт.

25a

NSS

NOT SOLD SEPARAT

ROLLER - bearing, narrow, Delrin, not shown

2шт.

26

1981846C1

CYLINDER END CAP

BEARING - spring bar, isolator latch tube, not shown, see Figure 9-50, item 13 or 18 for bearing

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

29a

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

30a

NSS

NOT SOLD SEPARAT

SPACER - not shown

1шт.

30b

131-425

PUSH-ON NUT,Push, 1/2"

See item 34

1шт.

1344250C2

KIT

KIT - shock absorber, suspension, Includes: Ref. 31-35

1шт.

31

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

33

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

34

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

227546A1

KIT

KIT - shock, fore/aft, Includes: Ref. 36-44

1шт.

36

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

37

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

38

231-1444

NUT,1/4"-20, GB

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

41

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

42

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

43

A49679

BUSHING

rubber

2шт.

44

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

45

1981845C1

ANGLE

mounting, shock mounting

1шт.

241196A1

SUSPENSION

KIT - service, Includes: Ref. 46-69, and Kits and Switch Assy

1шт.

1981852C3

SWITCH

ASSEMBLY - air control, valve, Includes: Ref. 46-49

1шт.

46

NSS

NOT SOLD SEPARAT

SWITCH - air control

1шт.

47

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 5/8 inch NF

1шт.

48

493-11065

LOCK WASHER,Ext-Int Tooth, 5/8"

1шт.

49

1987186C2

KNOB

KNOB - switch, air suspension

1шт.

1990548C4

KIT

KIT - air line and fittings, includes (2) elbows, (1) tee, (2) adapters, 3.5 feet nylon tubing, (5) ties straps and (1) J-clip, Includes: Ref. 50-56

1шт.

50

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

51

NSS

NOT SOLD SEPARAT

TEE - male, 5/32 x 5/32 tube x 1/8 NPT, not shown, not used

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 11-5/8 inch

1шт.

53

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 28 inch

1шт.

54

NSS

NOT SOLD SEPARAT

ADAPTER - tube, plastic, not used, not shown

1шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

56

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, not shown, Includes: Ref. 57, 58, 59

1шт.

57

NSS

NOT SOLD SEPARAT

KNOB - swivel latch, not used, not shown

1шт.

58

NSS

NOT SOLD SEPARAT

KNOB - lateral isolator, not used, not shown

1шт.

59

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator latch assembly, not shown, see item 17 on Figure 9-50 for knob

1шт.

60

NSS

NOT SOLD SEPARAT

SPRING - isolator latch lock, not shown, see item 5 on Figure 9-50 for spring, order 1990645C1 kit on Figure 9-50

1шт.

61

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

63

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615mm (24-1/4 inch) long

1шт.

64

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

65

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

Special, Not shown, See item 14 on Figure 9-44 for screw

2шт.

66

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

67

133422A1

BUMPER

down stop, not shown, see item 12 on Figure 9-44 for bumper

2шт.

68

241210A1

HARNESS

wire, with operator presence

1шт.

69

241206A1

HARNESS

wire, with grommet, with operator presence

1шт.
