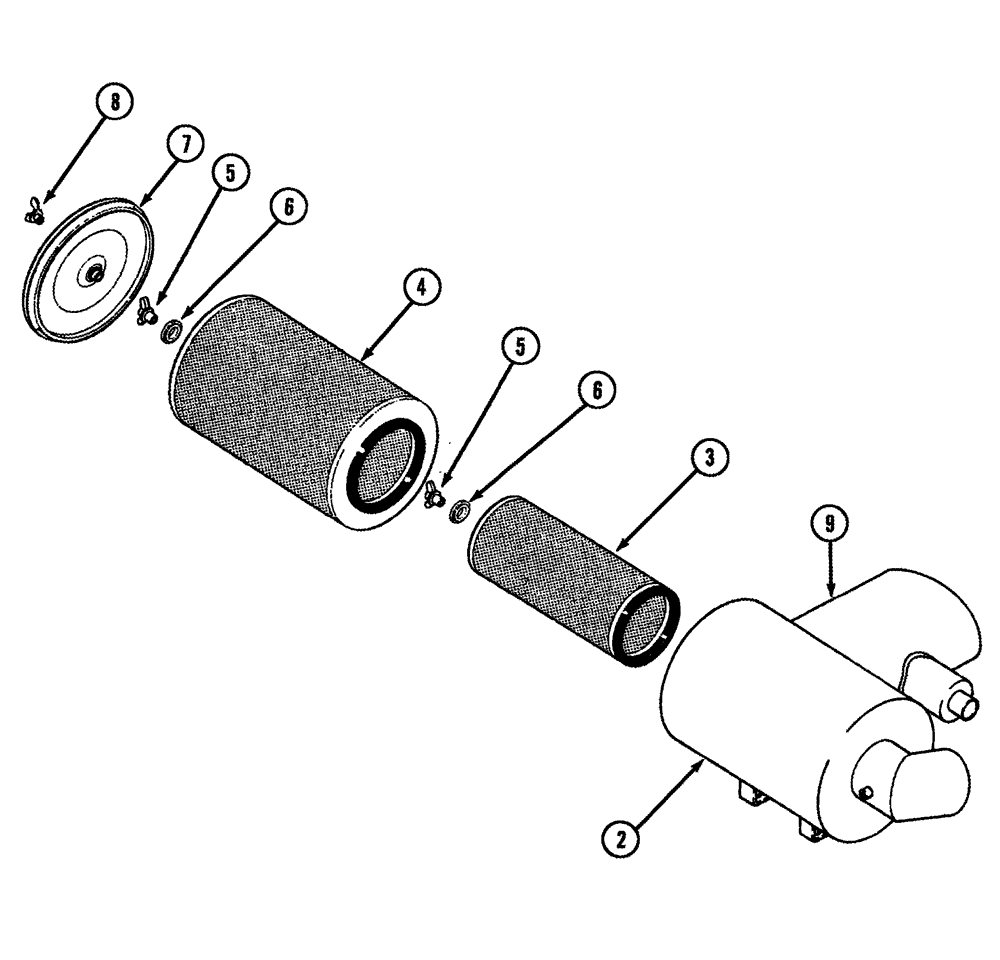

Запчасти Case IH 8950 (2-014) - AIR CLEANER (02) - ENGINE

113077A1

AIR CLEANER

Assembly, W/ Precleaner, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A171256

AIR FILTER

secondary

1шт.

4

A171255

AIR FILTER

primary

1шт.

5

A47134

WING NUT

wing, retaining, element retaining

2шт.

6

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

air cleaner element

1шт.

7

A184650

COVER ASSY

access

1шт.

8

33-1387T1

WING NUT

cover retaining

1шт.

33-1389T1

RING, SNAP

RING SNAP not shown

1шт.

9

NSS

NOT SOLD SEPARAT

PRECLEANER - air, engine, welded on, not serviced separately

1шт.
