Запчасти Case IH 8950 (9-014) - DRAWBAR HAMMERSTRAP (09) - CHASSIS/ATTACHMENTS

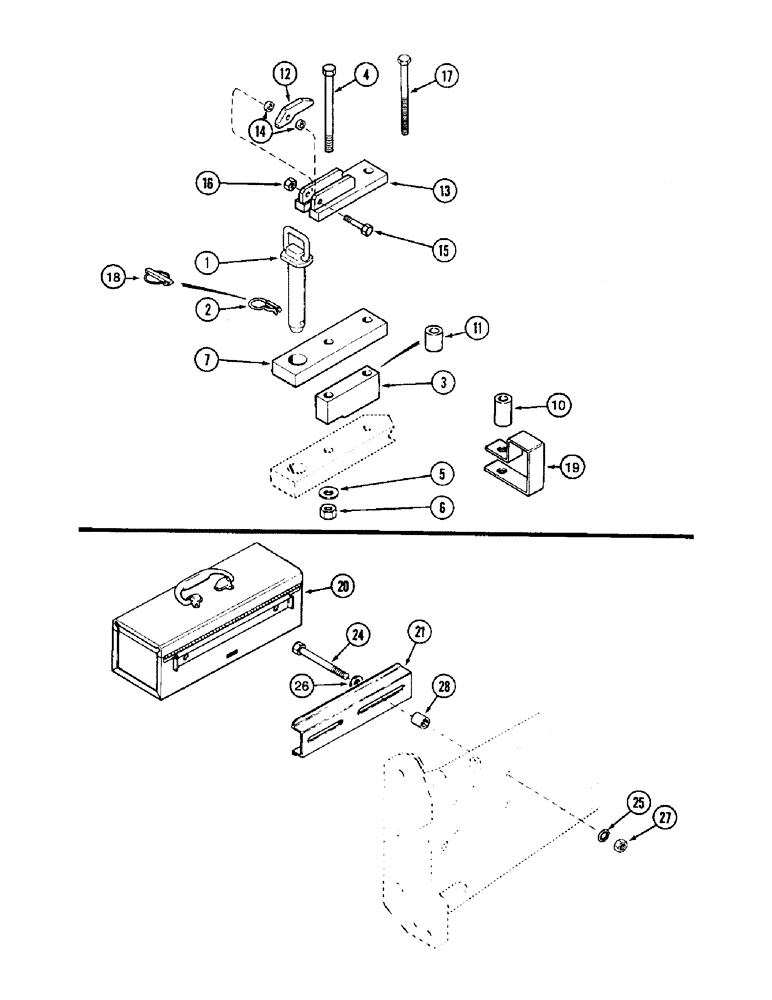

Схема запчастей Case IH 8950 - (9-014) - DRAWBAR HAMMERSTRAP (09) - CHASSIS/ATTACHMENTS
26
27
12
6
5
20
19
21
3
18
14
25
1
28
4
24
7
2
13
16
17
15
10
11

Артикул

Название

Примечание

Количество

1

1286985C4

HITCH PIN,40mm OD x 200mm L

hammerstrap

1шт.

2

1289372C1

SPLIT PIN/SAFETY PIN

hair, special, if used, drawbar hammerstrap

1шт.

3

1286983C1

RAIL ASSY.

SPACER - drawbar strap, if used

1шт.

4

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

BOLT - hex, 20 - 2.5 x 220 mm, class 10.9, if used, drawbar hammerstrap

1шт.

4

827-20210

BOLT,Hex, M20 x 2.5 x 210mm, Cl 10.9

If used, drawbar hammerstrap

1шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened, drawbar hammerstrap

2шт.

6

829-1320

NUT,M20, Cl 10

Drawbar hammerstrap

2шт.

7

1286984C1

DRAWBAR

HAMMERSTRAP -

1шт.

10

1286924C1

SPACER

strap, if used

1шт.

11

1331939C1

SPACER

strap, if used

1шт.

12

1965315C2

LEVER

hammerstrap

1шт.

13

1965312C3

LATCH ASSY.

hammerstrap

1шт.

14

1965316C2

SPACER,13mm ID x 19.1mm OD x 8mm L

latch, hammerstrap

2шт.

15

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

Drawbar hammerstrap

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

Drawbar hammerstrap

1шт.

17

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

Drawbar hammerstrap

1шт.

18

1348043C1

LINCH PIN

Klik, lock, special, if used, drawbar hammerstrap

1шт.

19

1331943C1

SUPPORT ASSY.

chain, drawbar hammerstrap

1шт.

1983805C1

BOX

tool attachment - tractor, order from Machinery Price List, tool box, Includes: Ref. 20-28, and Handle, Pin and Tray

1шт.

20

A181436

TOOL BOX

tool box, Includes: Handle, Pin, and Tray

1шт.

NSS

NOT SOLD SEPARAT

HANDLE - tool box, not shown

1шт.

NSS

NOT SOLD SEPARAT

PIN - 'L' shaped, mounting (Fabricate from 1/4 inch round stock), not shown, tool box

1шт.

NSS

NOT SOLD SEPARAT

TRAY - tote, not shown, tool box

1шт.

21

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

24

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

Tool box

2шт.

25

893-16016

LOCK WASHER,Int Tooth, M16

Tool box

2шт.

26

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat, Tool box

2шт.

27

825-1416

NUT,M16, Cl 8

Toolbox

2шт.

28

1348536C1

SPACER

mounting, tool box

2шт.

Выбрано товаров: 29
