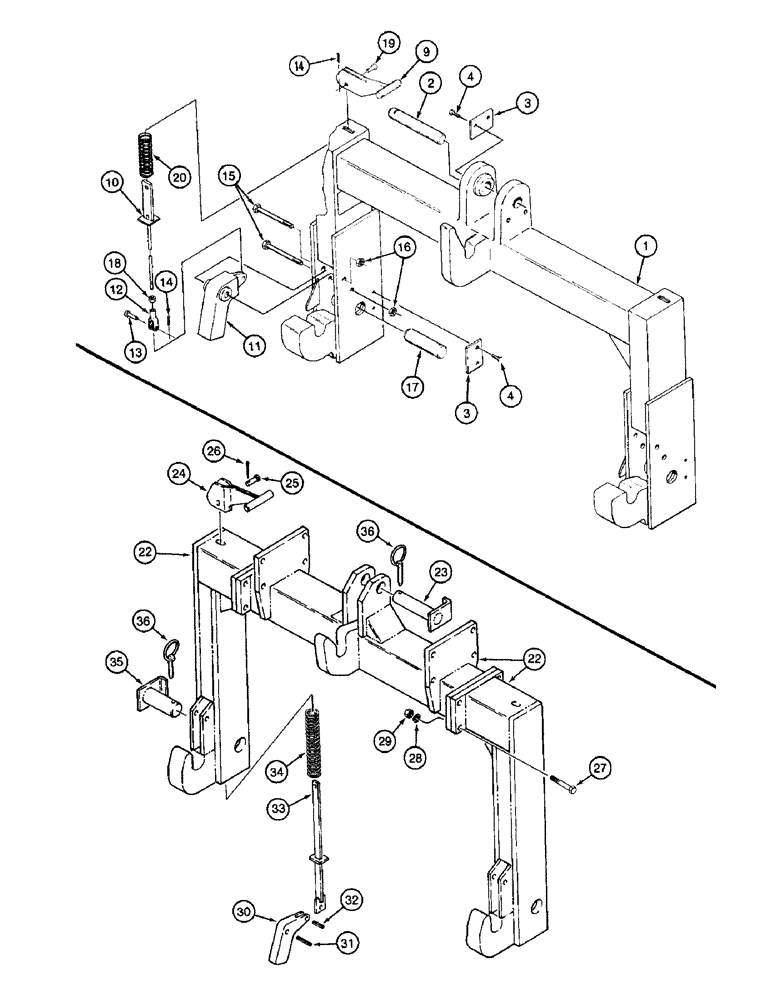

Запчасти Case IH 8950 (9-008) - QUICK HITCH COUPLER, CATEGORY III, IF EQUIPPED (09) - CHASSIS/ATTACHMENTS

1348143C3

ATTACHMENT

COUPLER - hitch attachment, order from Machinery Price List, if used, 8930/8940/8950, Includes: Ref. 1-21

1шт.

1

70-6430T1

ATTACHMENT

HITCH - quick attachment, coupler, 8930/8940/8950

1шт.

2

70-6452T1

PIN

mounting, 4-15/16 inch long, center link, 8930/8940/8950

1шт.

3

70-3082T2

LARGE PLATE

PLATE, LARGE BLOCK - pin retaining, 8930/8940/8950

3шт.

4

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

8930/8940/8950

6шт.

9

70-4320T1

HANDLE

hitch release, 8930/8940/8950

2шт.

10

70-4324T1

THREADED ROD

LINK - hitch release, 8930/8940/8950

2шт.

11

70-6310T2

TRIGGER

LATCH - hitch release, 8930/8940/8950

2шт.

12

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

8930/8940/8950

2шт.

13

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

8930/8940/8950

2шт.

14

432-616

COTTER PIN,3/32" x 1"

8930/8940/8950

4шт.

15

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

8930/8940/8950

4шт.

16

231-42110

LOCK NUT,Hex, 5/8"-11, GB

8930/8940/8950

4шт.

17

70-4293T1

PIN,36.5mm OD x 125.73mm L

lower hitch, 8930/8940/8950

2шт.

18

425-156

JAM NUT,Jam, 3/8"-24, G5

8930/8940/8950

2шт.

19

19-5423

CLEVIS PIN

3/8 x 7/8", 8930/8940/8950

2шт.

20

70-4340T1

COMPRESSION SPRING

8930/8940/8950

2шт.

21

321-3339

DECAL

Warning, be certain both latches are fully engaged across the implement lift pins, not shown, see Figure 9-112, item 3, 8930/8940/8950

1шт.

229856A1

FAST HITCH

COUPLER - attachment, if used, 8930, quick hitch coupler 8930 models (if equipped), Includes: Ref. 22-36

1шт.

22

NSS

NOT SOLD SEPARAT

FRAME - coupler, 8930, quick hitch models (if equipped)

1шт.

23

229035A1

PIN

upper link, 8930, quick hitch coupler models (if equipped)

1шт.

24

64715C1

HANDLE

hitch release, 8930, quick hitch coupler models (if equipped)

2шт.

25

427-5112

CLEVIS PIN,5/16" x 1 1/8"

8930, quick hitch coupler models (if equipped)

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

8930, quick hitch coupler models (if equipped)

2шт.

27

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

8930, Quick hitch coupler models (if equipped)

8шт.

28

392-11050

LOCK WASHER,1/2"

8930, quick hitch coupler models (if equipped)

8шт.

29

329-108

NUT,1/2"-13, G8

8930, Quick hitch coupler models (if equipped)

8шт.

30

229992A1

LUG

LATCH - hitch release, 8930, quick hitch coupler models (if equipped)

2шт.

31

229990A1

COILED PIN

roll, 1/2 x 2 inch, 8930, quick hitch coupler models (if equipped)

2шт.

32

229993A1

COILED PIN

roll, 5/16 x 1 inch, 8930, quick hitch coupler models (if equipped)

2шт.

33

229994A1

THREADED ROD

LINK - hitch release, 8930, quick hitch coupler models (if equipped)

2шт.

34

64717C1

SPRING

compression, 8930, quick hitch coupler models (if equipped)

2шт.

35

229034A1

PIN

lower link, 8930, quick hitch coupler models (if equipped)

2шт.

36

D33805

PIN

locking, 8930, quick hitch coupler models (if equipped)

3шт.

37

321-3339

DECAL

Warning, be certain both latches are fully engaged across the implement lift pins, not shown, see Figure 9-112, item 3, 8930, quick hitch coupler models (if equipped)

2шт.
