(8-010) - TRANSMISSION SOLENOID VALVE TUBES, WITH MECHANICAL FRONT DRIVE, MFD

Запчасти Case IH 8950 (8-010) - TRANSMISSION SOLENOID VALVE TUBES, WITH MECHANICAL FRONT DRIVE, MFD (08) - HYDRAULICS

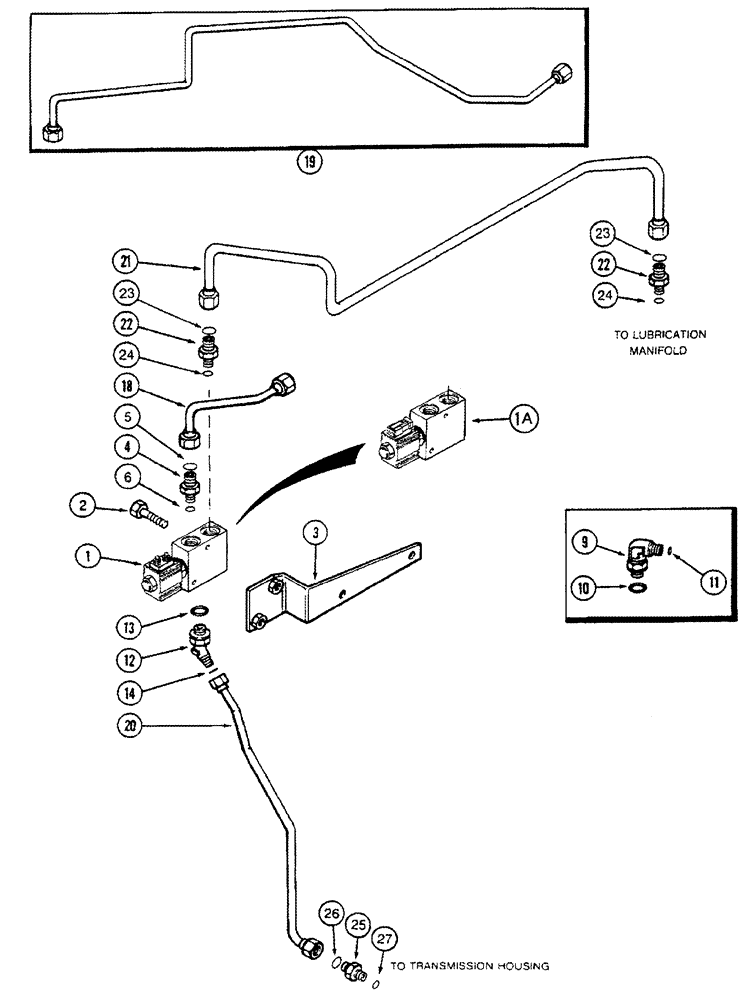

Схема запчастей Case IH 8950 - (8-010) - TRANSMISSION SOLENOID VALVE TUBES, WITH MECHANICAL FRONT DRIVE, MFD (08) - HYDRAULICS
10
1a
24
18
22
4
9
23
26
11
14
21
5
12
2
6
20
3
23
1
27
25
24
19
13
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1272538C1

VALVE

ASSEMBLY - solenoid, no longer available, on transmissions prior to serial number AJB0099462 furnish 320691A1 valvle below and 371030A1 adapter kit, parts list Figure 8-12

1шт.

1a

320691A1

VALVE

ASSEMBLY - solenoid, transmissions serial number AJB0099462 and after, parts list Figure 8-12

1шт.

2

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

Used with 1272538C1 valve

2шт.

2

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

Used with 320691A1 valve

2шт.

3

1289347C1

BRACKET

mounting, solenoid valve

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 5, 6

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 10, 11

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

45 degree, 11/16-16 face seal x 9/16-18 inch adj O-ring boss, Includes: Ref. 13, 14

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

232357A1

TUBE

supply (With hitch), prior to transmission serial number AJB0097800

1шт.

18

305583A2

TUBE

supply (With hitch), transmission serial number AJB0097800 and after

1шт.

19

1978464C1

HYD TUBE

supply (Without hitch)

1шт.

20

131135A1

HYD TUBE

TUBE - pressure

1шт.

21

1348291C1

HYD TUBE,0.375" OD, 540.3, 172 mm Length

TUBE - valve return

1шт.

22

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 23, 24

2шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 26, 27

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
