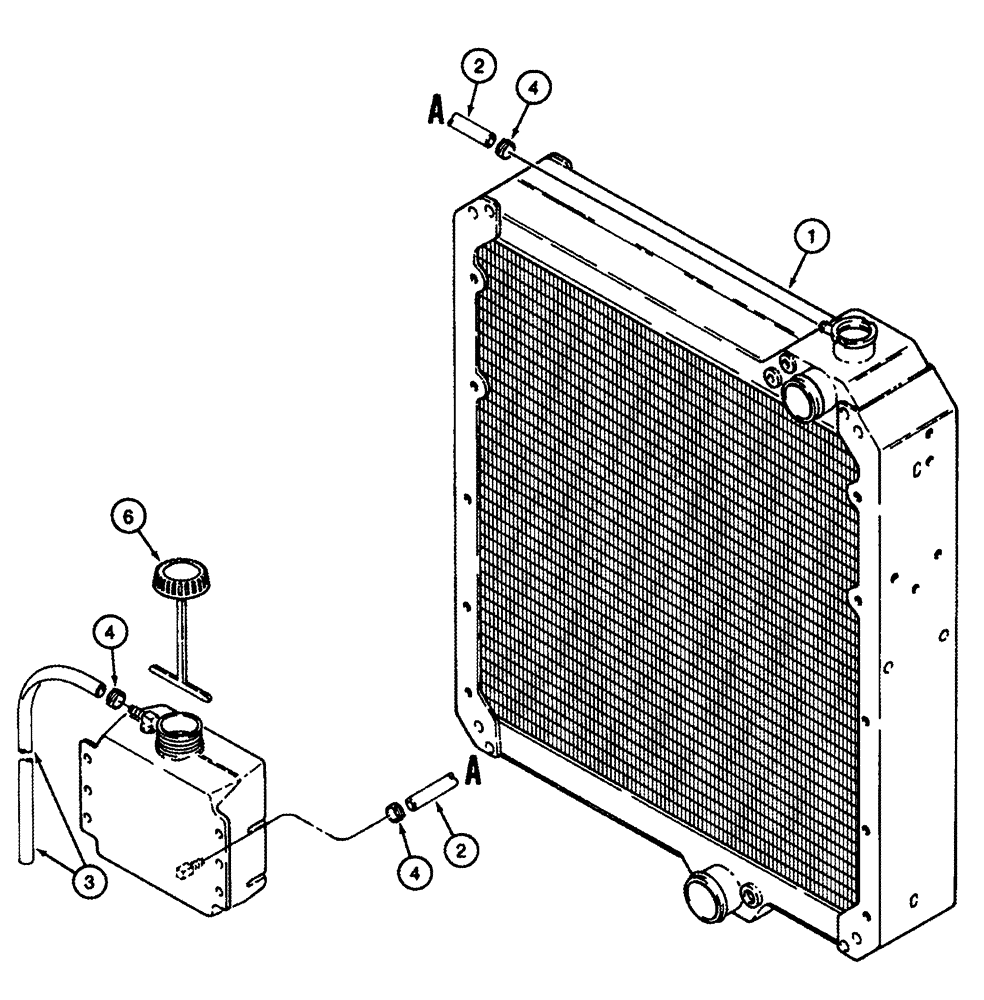

Запчасти Case IH 8950 (2-010) - COOLANT RECOVERY SYSTEM, IF EQUIPPED (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - cooling system, parts list page 2-7

1шт.

2

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

Cut from L126767 bulk hose, Coolant bottle to radiator

1шт.

3

142713A1

HOSE

1021 mm (40-7/32 inch) long, coolant recovery overflow

1шт.

4

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, hose retaining

3шт.

199027A1

RESERVOIR ASSY.

coolant recovery, mounts at clip on firewall, Includes: Ref. 5,6

1шт.

5

188891A1

RESERVOIR

coolant container

1шт.

6

1547924C1

CAP

recovery bottle, non-vented

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
