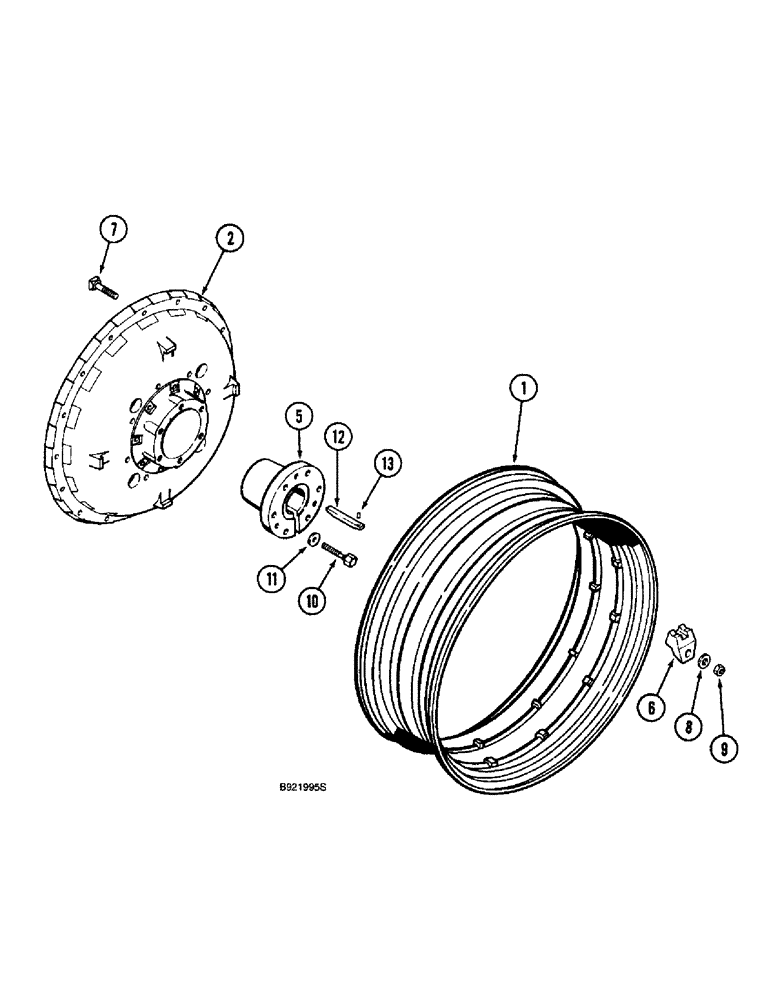

Запчасти Case IH 8950 (6-094) - SOLID CAST REAR WHEELS (06) - POWER TRAIN

1

1334480C1

RIM

WHEEL for 18.4-38 tire

2шт.

1

1334481C1

RIM

WHEEL for 20.8-38 tire

2шт.

1

1334482C1

RIM

WHEEL for 18.4-42 tire

2шт.

1

1334483C1

RIM

WHEEL for 20.8-42 tire

2шт.

2

A161818

WHEEL

HUB - cast

2шт.

5

1289233C1

HUB

BUSHING - wheel, 4 inch ID

2шт.

6

A57654

CLAMP

adjusting

32шт.

7

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

BOLT - square head, 3/4 NC x 3-1/2 inch

32шт.

8

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

flat

32шт.

9

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

32шт.

10

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch

12шт.

11

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

12

A63219

KEY

axle, 3/4 x 6 inch

2шт.

13

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.
