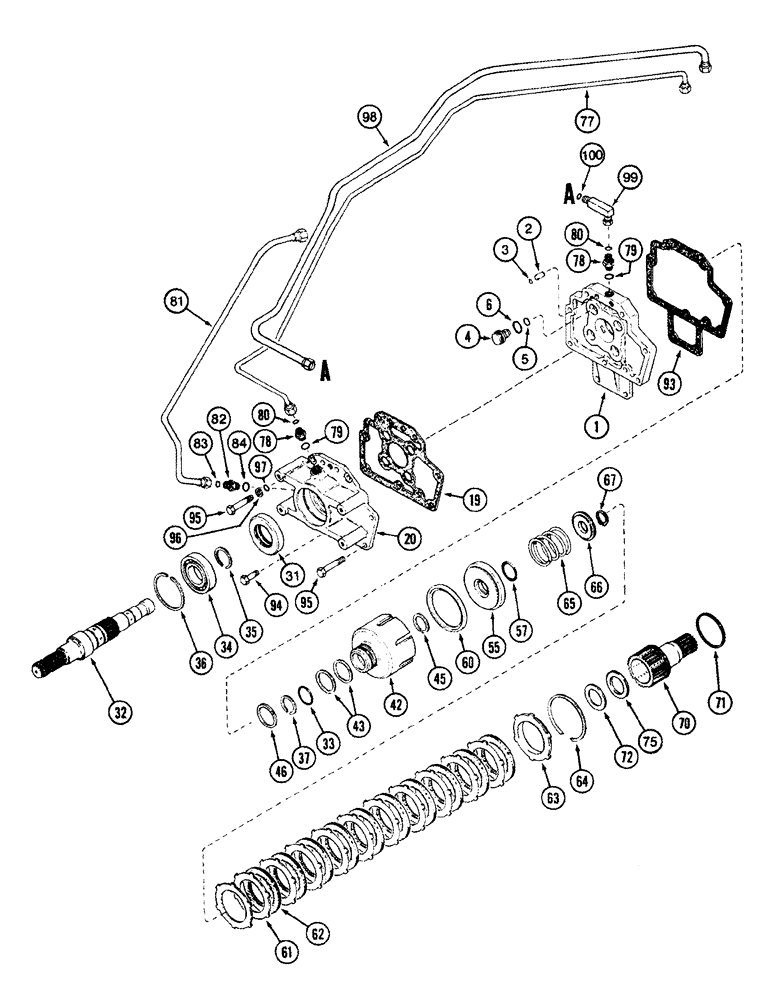

Запчасти Case IH 8950 (6-080) - POWER TAKE OFF ASSEMBLY, SINGLE SPEED, 1000 RPM, IF EQUIPPED (06) - POWER TRAIN

1997459C1

PTO

POWER TAKE OFF ASSEMBLY - 1000 rpm, single speed, no longer available, order 313782A2 PTO assembly below

1шт.

313782A2

PTO

POWER TAKE OFF ASSEMBLY - 1000 rpm, single speed, Includes: Ref. 1-67

1шт.

1

1997571C1

HOUSING

ASSEMBLY - PTO, no longer available, order 314200A1 housing assembly below

1шт.

1

314200A1

HOUSING

ASSEMBLY - PTO, Includes: Ref. 2, 3

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

4шт.

3

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

4

1289335C5

PISTON,Assembly, Brake, Anti-Creep

brake, anti-creep

4шт.

5

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

4шт.

6

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

4шт.

19

321292A1

GASKET,1.12mm Thk

cover to housing, replaces 1997465C1 gasket

1шт.

20

1997465C1

COVER

housing, no longer available, order 308695A1 cover below and two 800-21110 retaining rings

1шт.

20

308695A1

COVER

housing

1шт.

20a

800-21110

SNAP RING,M110, Int

internal retaining, No. 110, used with 308695A1 cover, not shown

2шт.

31

1349466C1

OIL SEAL,69.77mm ID x 110.21mm OD x 13.08mm Thk

oil

1шт.

32

1997463C1

SHAFT

output, no longer available, order 308611A1 shaft below

1шт.

32

308611A1

SHAFT

output

1шт.

33

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

34

1963946C1

BALL BEARING,60mm ID x 110mm OD x 22mm W

ball

1шт.

35

357194R1

RING

retaining

1-2шт.

36

324049R1

RING

retaining

1шт.

37

271130R1

RING

retaining

1шт.

42

124303A1

CLUTCH HOUSING

CUP - replaces 1997478C1 cup

1шт.

43

365229A1

RING

seal, replaces 381485R1 ring

2шт.

45

130489C1

RING

retaining

1шт.

46

1997576C1

SEALING RING

SEALRING seal

1шт.

55

1997477C1

PISTON

clutch

1шт.

57

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

60

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston

1шт.

61

381489R3

DISC

PLATE - seperator

10шт.

62

381490R4

DISC

friction

10шт.

63

1997561C2

LARGE PLATE

PLATE, LARGE DISC - clutch backing plate

1шт.

64

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, clutch driven disc

1шт.

65

381493R1

SPRING

clutch release

1шт.

66

1997479C1

STOP

RETAINER - spring

1шт.

67

101-11175

SNAP RING,#175, 1.640", Ext

RING - external retaining, No. 175

1шт.

313782A2

PTO

POWER TAKE OFF ASSEMBLY - 1000 rpm, single speed, Includes: Ref. 70-75

1шт.

70

1997698C1

SHAFT ASSY.

clutch drive, no longer available, order 313780A1 shaft assembly below

1шт.

70

313780A1

SHAFT ASSY.

clutch drive, INCLUDES REFS 70A, 70B

1шт.

70a

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

needle, 1-3/4 inch OD, used with 1997698C1 shaft assembly, not shown

1шт.

70a

A144861

NEEDLE BEARING

needle, used with 313780A1 shaft assembly, not shown

1шт.

70b

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

needle, used with 1997698C1 assembly, not shown

1шт.

70b

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

needle, 2-1/8 inch (54 mm) OD, used with 313780A1 shaft assembly, not shown

1шт.

71

1997689C1

SEAL,89.53mm ID x 95.53mm OD x 2.88mm Thk

lubrication

1шт.

72

A54021

WASHER

RACE - thrust

1шт.

75

1997941C1

THRUST WASHER,44.83mm ID x 63.5mm OD x 3.54mm Thk

fiber

1шт.

77

1997585C2

HYD TUBE

TUBE - PTO brake supply

1шт.

78

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 79, 80

2шт.

80

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

81

107813A1

TUBE

TUBE - lubrication

1шт.

82

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, Includes: Ref. 83, 84

1шт.

83

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

93

1997475C1

GASKET,0.79mm Thk

, Serial Range: housing-frame

1шт.

94

613-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

94

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

95

813-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

BOLT - hex, 12 - 1.75 x 75 mm

6шт.

96

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

97

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

98

223730A1

TUBE

TUBE - clutch supply

1шт.

99

225500A1

FITTING

ELBOW - 90 degree, 1-14 male x 11/16-16 inch straight thread

1шт.

100

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

79

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

84

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
