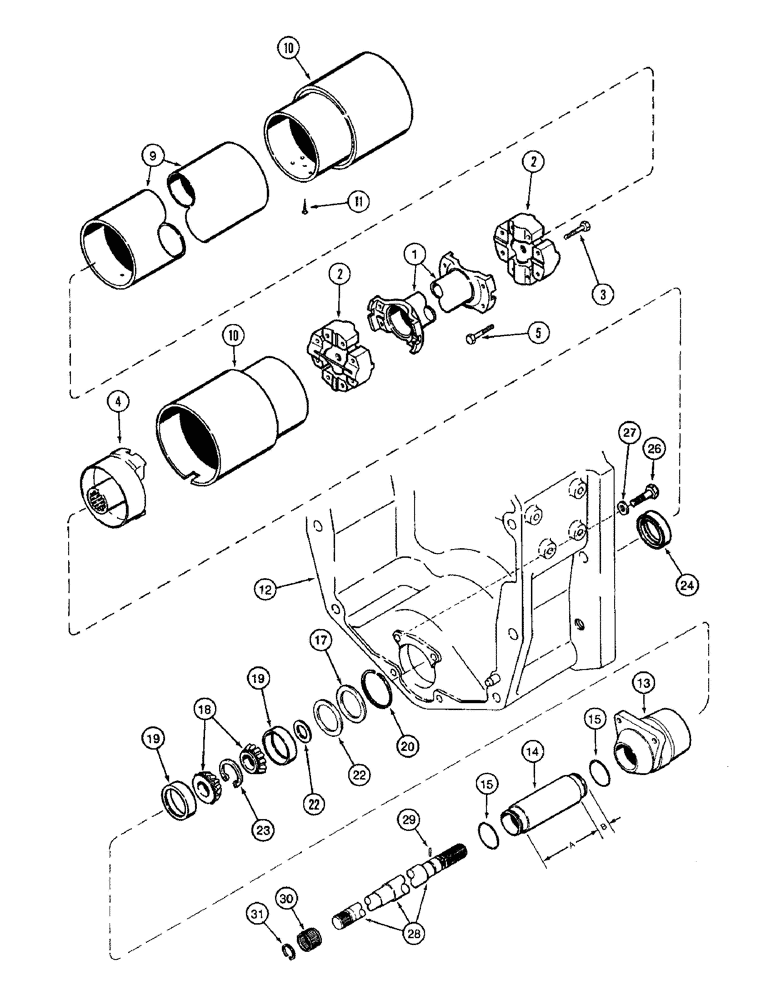

Запчасти Case IH 8950 (6-064) - FRONT AXLE DRIVE SHAFT, MFD TRACTOR (06) - POWER TRAIN

1

93381C1

SHAFT

drive

1шт.

2

93326C1

U-JOINT SPIDER

ASSEMBLY - shaft, Includes: Ref. 3

2шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

hex, special

4шт.

4

110840A1

YOKE

UNIVERSAL JOINT YOKE shaft

1шт.

5

328-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

8шт.

282500A2

SHIELD

SET - drive shaft, matched, replaces 1349323C1 shield set, Includes: Ref. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

GUARD - drive

1шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE - outer

2шт.

11

93199C1

FASTENER

ratchet

2шт.

12

119491A1

HOUSING

flywheel

1шт.

13

1342533C1

SUPPORT

shaft output

1шт.

14

1997786C2

TUBE,41.28 mm ID, 55 mm OD

front cage

1шт.

15

193478A1

SEALING RING

SEALRING quad

2шт.

17

1342540C1

SPACER

bearing, output shaft

1шт.

18

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

tapered roller

2шт.

19

ST991

BEARING CUP

tapered roller

2шт.

24

1997920C1

SEAL,46.23mm ID x 69.95mm OD x 12.7mm Thk

oil

1шт.

22

131145A1

SHIM

bearing, 0.38 mm

1шт.

22

1342537C1

SHIM

bearing, 0.51 mm

1шт.

22

1342538C1

SHIM

bearing, 0.56 mm

1шт.

22

1342539C1

SHIM

bearing, 0.64 mm

1шт.

20

101-21268

SNAP RING,#268, 2.868", Int

RING - internal retaining, No. 268

1шт.

23

1259828C1

RING

retaining

1шт.

26

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

28

124414A1

SHAFT

output, Includes: Ref. 28

1шт.

29

1342534C1

SLOTTED PIN

1шт.

30

38834

ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W

needle

1шт.

31

1259828C1

RING

2шт.
