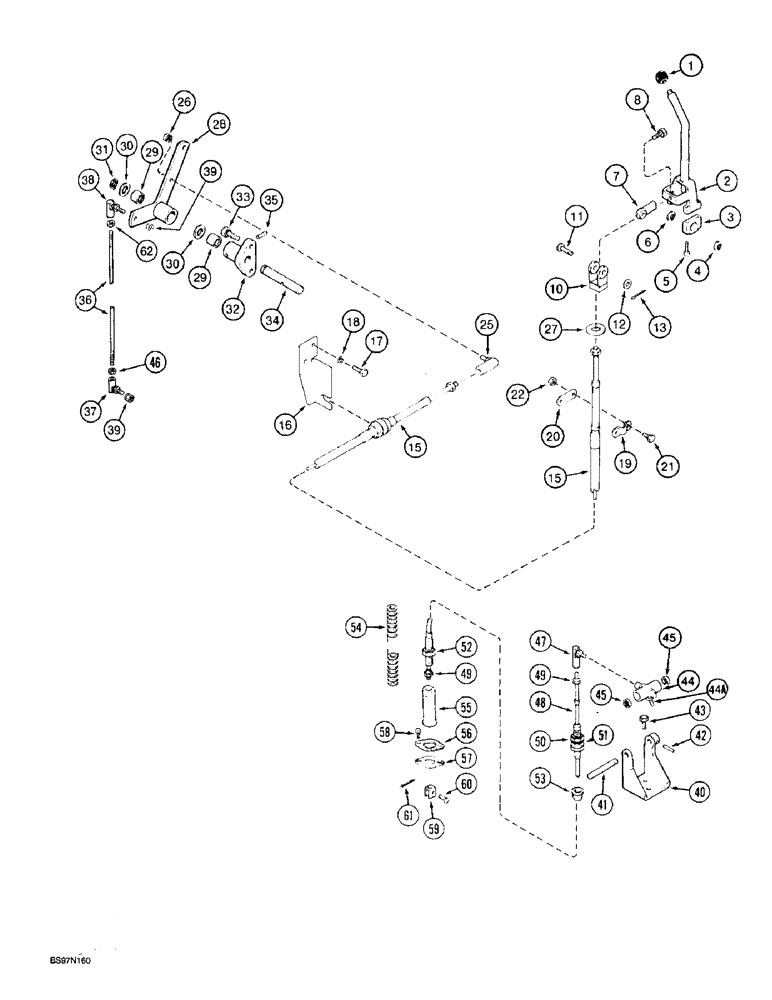

Запчасти Case IH 8950 (6-056) - TRANSMISSION SHIFT CONTROL, WITHOUT MANUAL SHUTTLE SHIFT (06) - POWER TRAIN

1

1280096C1

KNOB

handle

1шт.

2

302490A1

HANDLE

LEVER - shift control

1шт.

3

96580C3

BEARING HOUSING

BLOCK - bearing, Includes: Ref. 4

2шт.

4

96579C1

BEARING CUP,Needle, 12.7mm ID x 17.46mm OD x 7.92mm W

1шт.

5

96637C1

HEX SOC SCREW,M4 x 35mm

BOLT - hex socket head, 4 x 35 mm

4шт.

6

96982C1

WASHER

beveled

2шт.

7

97202C1

BALL JOINT

END -

1шт.

8

414-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - hex, 3/8 NF x 7/8 inch

1шт.

10

1340129C2

CLEVIS

cable

1шт.

11

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

Hardened

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

13

432-616

COTTER PIN,3/32" x 1"

1шт.

15

1343929C2

CABLE ASSY.

speed

1шт.

16

1344098C1

SUPPORT

BRACKET - cable

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

1344178C1

CLAMP

cable

1шт.

20

1344099C1

BLOCK

SHIM - clamp

1шт.

21

628-6020

BOLT,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

22

832-41306

NUT,M6 x 1, Cl 10

2шт.

25

310673R1

BALL JOINT

1шт.

26

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

27

1344234C1

WASHER

cable

1шт.

28

1987155C1

LEVER

BELLCRANK - speed, Includes: Ref. 29

1шт.

29

1344333C1

BUSHING,19.1mm ID x 25.48mm OD x 19.05mm L

speed shift lever

2шт.

30

1251551C1

WASHER

flat

2шт.

31

100-1675

SNAP RING,#75, Ext

1шт.

32

96992C2

SUPPORT ASSY.

bellcrank

1шт.

33

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 30 mm, class 10.9

2шт.

34

1283945C1

SHAFT

bellcrank

1шт.

35

838-1650

LOCK PIN,M6 x 50, Slotted

slotted spring, 6 x 50 mm

1шт.

36

1283926C1

ROD

speed link

1шт.

37

D149295

BALL JOINT,3/8"

rod

1шт.

38

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

rod

1шт.

39

232-4616

LOCK NUT,3/8"-24, GC

2шт.

40

1987022C1

SUPPORT

handle, shift

1шт.

41

96585C1

SHAFT

trunnion

1шт.

42

838-3420

PIN,M4 x 20, Coiled

roll, 4 x 20 mm

1шт.

43

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

44

1340024C2

TRUNNION

ASSEMBLY - pivot, tractors with 3 and 4 reverse, includes items 44A and 45

1шт.

44

96489C5

TRUNNION

ASSEMBLY - pivot, tractors without 3 and 4 reverse, Includes: Ref. 44A, 45

1шт.

44a

124591A1

PIN,6.01mm OD x 35mm L

6 x 35 mm

1шт.

45

96579C1

BEARING CUP,Needle, 12.7mm ID x 17.46mm OD x 7.92mm W

2шт.

46

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

47

304608A1

BALL JOINT

cable, replaces 281800C2 joint

1шт.

48

96612C3

CABLE ASSY.,1660mm L

shift, F-N-R, Includes: Ref. 49-53

1шт.

49

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

50

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

51

495-81120

WASHER,.344" x 1 1/4" x .120"

flat, 11/32 x 1-1/4 x 7/64 inch

2шт.

52

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

53

96988C2

GROMMET

cable

1шт.

54

118156C1

CONDUIT

SLEEVE - corrugated, cut 8 inches from 1536137C1 bulk insulation

1шт.

55

1340478C1

HOUSING

support, cable

1шт.

56

1280055C2

FLANGE

cable support housing

1шт.

57

97238C1

SPACER

cable support housing

1шт.

58

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

Replaces 627-6016 bolt

2шт.

59

96790C2

CLEVIS COUPLING

cable

1шт.

60

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

clevis

1шт.

61

732-2012

COTTER PIN,M2 x 12

1шт.

62

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.
