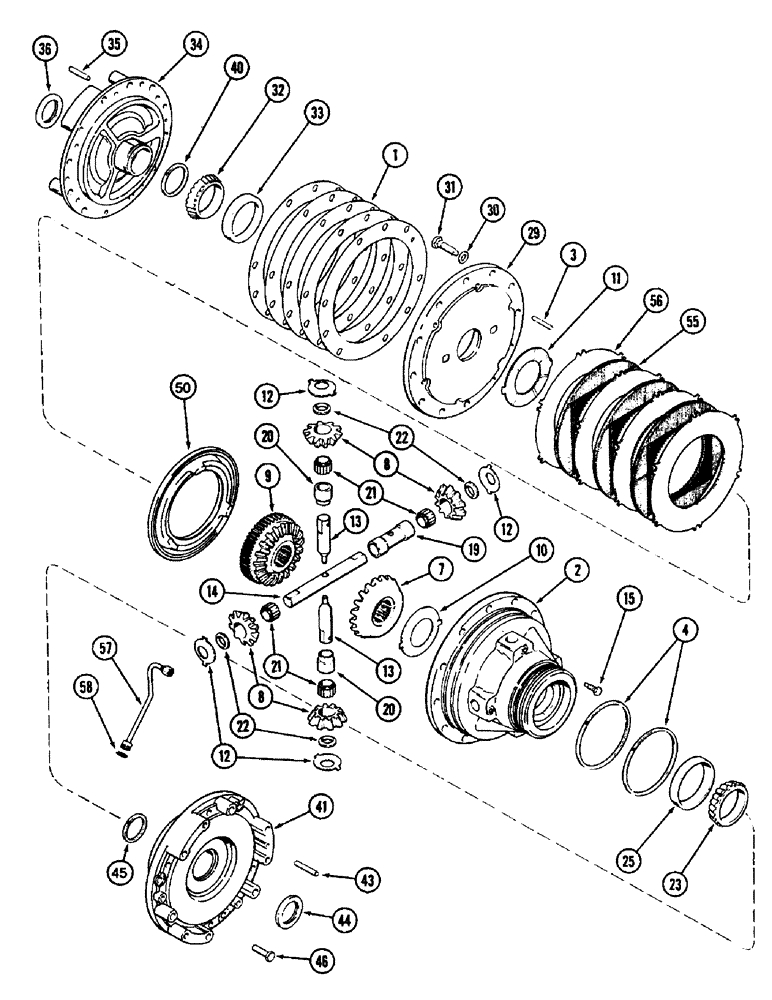

Запчасти Case IH 8950 (6-048) - TRANSMISSION, DIFFERENTIAL (06) - POWER TRAIN

1

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

retainer, 0.09 mm

1шт.

1

120512C2

SHIM

retainer, 0.1 mm

1шт.

1

120509C2

SHIM

retainer, 0.18 mm

1шт.

1

120510C2

SHIM

retainer, 0.31 mm

1шт.

1

120511C2

SHIM

retainer, 0.74 mm

1шт.

2

1997705C1

CAGE

CASE - differential, right

1шт.

3

137023A1

DOWEL

PIN - 10 x 60 mm, hardened

6шт.

4

148939C1

SEALING RING,OD 200.60 mm

RING

2шт.

7

1259633C2

GEAR

pinion, 20 teeth, differential

1шт.

8

92905C1

PINION

GEAR - bevel, differential, 10 tooth

4шт.

9

1259634C2

PINION

GEAR - lock, bevel, 20 teeth

1шт.

10

92767C1

THRUST WASHER,82mm ID x 142mm OD x 1.6mm Thk

thrust

1шт.

11

92768C1

THRUST WASHER,88mm ID x 160mm OD x 1.6mm Thk

thrust

1шт.

12

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

thrust

4шт.

13

92906C1

SHORT SHAFT

pinion, long

2шт.

14

92907C1

SHAFT

pinion, short

1шт.

15

1997421C1

BOLT

BOLT - pin

2шт.

19

1289349C1

SPACER

pinion, long

1шт.

20

1289350C1

SPACER

pinion, short

2шт.

21

1270697C1

NEEDLE BEARING

BEARING

112шт.

22

1289348C1

RING

thrust

4шт.

23

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller

1шт.

25

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller

1шт.

29

229593A1

COVER

case, differential, replaces 92800C2 cover

1шт.

30

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

31

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

32

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

tapered roller

1шт.

33

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

tapered roller

1шт.

34

120503C2

RETAINER

bearing, left

1шт.

35

136433A1

DOWEL,M12 x 65mm, HDN

PIN - 12 x 65 mm, hardened

5шт.

36

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil

1шт.

40

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal

2шт.

41

1997369C1

RETAINER

bearing, right

1шт.

43

136433A1

DOWEL,M12 x 65mm, HDN

PIN - 12 x 65 mm, hardened

5шт.

44

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

oil

1шт.

45

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

seal

1шт.

46

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

Bolt, Hex, M16 x 40, 8.8, Full Thd

3шт.

46

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

Bolt, Hex, M16 x 45, 8.8, Full Thd

3шт.

50

1997422C1

PISTON

lock, differential

1шт.

55

120679C1

PLATE

friction

3шт.

56

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

separator

4шт.

57

120653C2

TUBE,9.52 mm OD, 212, 64 mm Length

TUBE - lock

1шт.

58

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
