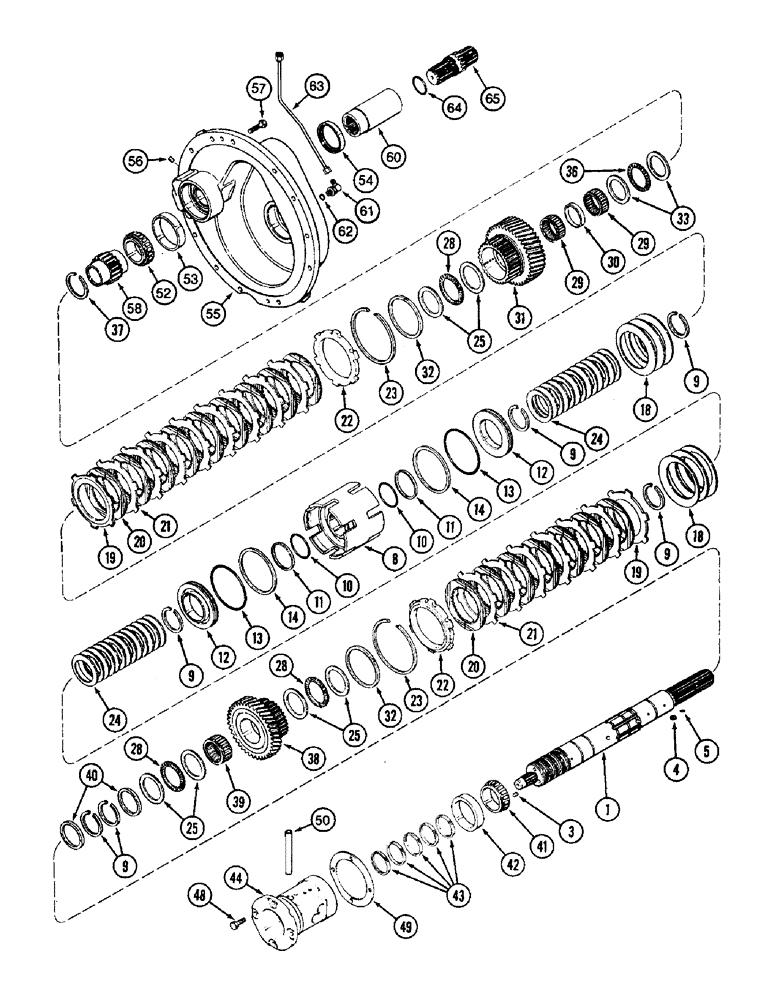

Запчасти Case IH 8950 (6-006) - TRANSMISSION SPEED, INPUT SHAFT WITH CREEPER (06) - POWER TRAIN

1

228398A1

SHAFT ASSY.

input, Includes: Ref. 3, 4, 5

1шт.

3

1342851C1

PLUG

sealing, 10 mm

4шт.

4

1963888C1

PIN,12.7mm OD x 14mm L

slotted spring

2шт.

5

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

8

220617A1

CARRIER

CARRIER -

1шт.

9

93350C1

RING

retaining

6шт.

10

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

piston, low clutch inner

2шт.

11

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch

2шт.

12

1285998C1

PISTON

clutch

2шт.

13

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

piston, low clutch outer

2шт.

14

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

2шт.

18

93129C1

BELLEVILLE WASHER

Belleville spring

6шт.

19

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction

2шт.

20

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

14шт.

21

92934C2

DISC

separator

12шт.

22

1342854C2

DISC

backing, 16.5 mm (21/32 inch) thick, if used

2шт.

22

1342645C3

CLUTCH DISC

CLUTCH DISK backing, powder metal, 9.7 mm (3/8 inch) thick, if used

2шт.

23

1285996C1

SNAP RING,151mm OD, Internal

retaining

2шт.

24

1286012C2

BELLEVILLE WASHER

Belleville spring

26шт.

25

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

6шт.

28

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

needle

3шт.

29

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

caged

2шт.

30

93297C1

SPACER,62.45mm ID x 66.48mm OD x 9.98mm L

bearing

1шт.

31

1342495C1

DRIVEN GEAR

GEAR - second, fourth and sixth, 37 teeth

1шт.

32

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal

2шт.

33

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

36

K620185

THRUST BEARING

needle, thrust

1шт.

37

92793C1

RING

retaining

1шт.

38

1285985C1

GEAR

odd/even clutch and fifth, 34 teeth

1шт.

39

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

caged

1шт.

40

1286039C1

SPACER

bearing

2шт.

41

364465C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

tapered roller

1шт.

42

258452C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

tapered roller

1шт.

43

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

seal

5шт.

44

1981213C1

NEEDLE BEARING CAGE,63.1 mm ID x 113.95 mm OD x 156.6 mm

bearing

1шт.

48

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm

4шт.

49

1286071C1

SHIM,115mm ID x 148mm OD x 0.08mm Thk

Bearing

1шт.

49

1286072C1

SHIM,115mm ID x 148mm OD x 0.1mm Thk

Bearing

1шт.

49

1286073C1

SHIM,115mm ID x 148mm OD x 0.13mm Thk

Bearing

1шт.

49

1286074C1

SHIM,115mm ID x 148mm OD x 0.3mm Thk

Bearing

1шт.

49

1286075C1

SHIM,115mm ID x 148mm OD x 0.76mm Thk

Bearing

1шт.

50

1981207C1

TUBE,15.913 mm OD

lube

1шт.

52

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

tapered roller, 2-1/4 inch ID

1шт.

53

105497H

BEARING CUP,96.85mm OD x 15.77mm W

tapered roller

1шт.

54

108935A1

SEAL,60.33mm ID x 79.38mm OD x 9.5mm Thk

shaft

1шт.

Part of Service Kit P/N 108934A1

1шт.

55

92837C3

SUPPORT ASSY.

bearing, Includes: Ref.

1шт.

56

37-188

DOWEL,1/2" x 1/2"

dowel, hardened, 1/2 x 1/2 inch, replaces 20229R1 pin

8шт.

57

613-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Replaces 615-12040 bolt

11шт.

58

92794C1

PINION

GEAR - creeper, 17 teeth

1шт.

60

228465A1

SPLINED COUPLING

shaft input

1шт.

61

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 62

1шт.

62

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

63

311670A1

TUBE

supply, lube, replaces 92836C1 tube

1шт.

64

108932A1

O-RING,1.609" ID x 1.887" OD x 0.139"

O-RING - 40.87 ID x 3.53 mm wide

1шт.

Part of Service Kit P/N 108934A1

1шт.

65

108933A1

SHAFT

driven, damper, with 4.45 mm wide O-ring groove

1шт.

Part of Service Kit P/N 108934A1

1шт.

108934A1

KIT

service, Includes: REF 54, 64 & 65

1шт.
