Запчасти Case IH 8950 (5-038) - STEERING CYLINDER ASSEMBLY, MFD TRACTOR (05) - STEERING

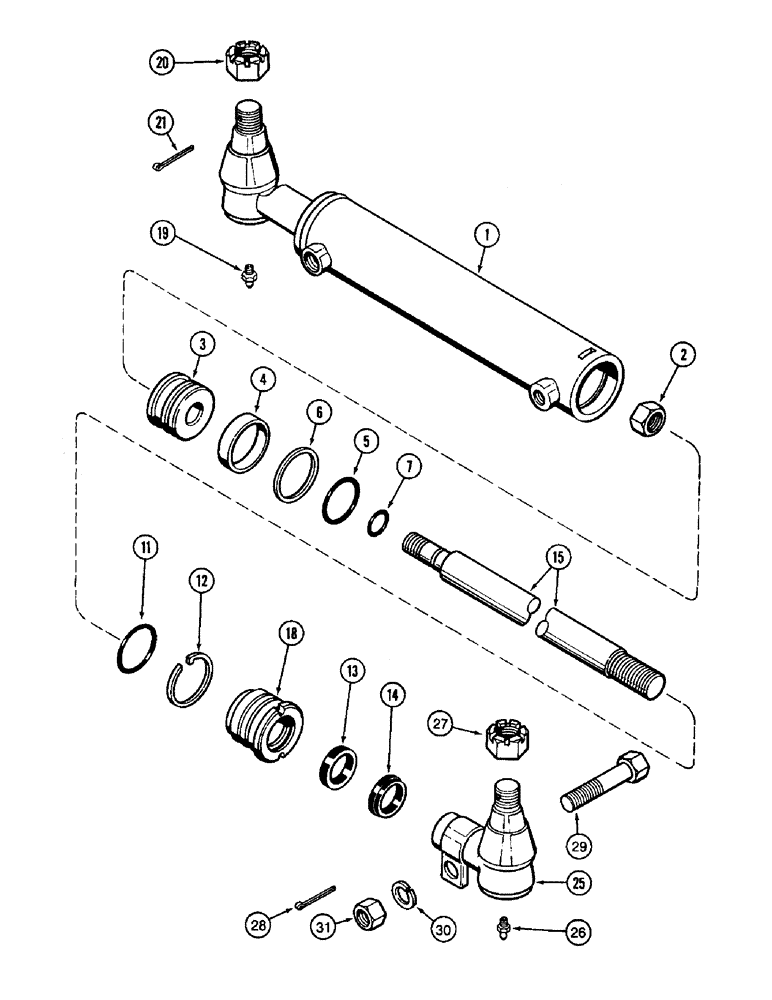

Схема запчастей Case IH 8950 - (5-038) - STEERING CYLINDER ASSEMBLY, MFD TRACTOR (05) - STEERING
13
11
25
1
19
30
3
6
20
7
18
14
26
29
28
4
2
15
5
27
12
31
21

Артикул

Название

Примечание

Количество

243305A2

AXLE, FRONT

ASSEMBLY - 30 kph, 4:10 ratio, see Figures 5-28 - 5-38 (If used)

1шт.

243305A2R

REMAN-AXLE, MFD

Remanufactured - Axle - 8930/40/50 Prod. 11/96 Starting SN JJA0072001 30 KPH

1шт.

243305A2C

CORE-AXLE, MFD

Return Part Number

1шт.

243304A2

AXLE

ASSEMBLY - front, 40 kph, 3:73 ratio, see Figures 5-28 - 5-38 (If used), Includes: Ref. 1-31 and Cylinder Assy

1шт.

243304A2R

REMAN-AXLE, MFD

Reman - Axle - 7230/40/50 Production 2/97 & 8930/40/50 11/96 Starting SN JJA0072001 40 KPH

1шт.

243304A2C

CORE-AXLE, MFD

Return Part Number

1шт.

231007A1

STEERING CYLINDER

ASSEMBLY - 57 (2-1/4) ID x 229 mm (9 inch) stroke, left-hand

1шт.

435662A1R

REMAN-HYD CYLINDER

8930, 8940, 8950 All (1/97-12/98), Reman for New P/N 231007A1

1шт.

435662A1C

CORE-HYD CYLINDER

Return Part Number

1шт.

231008A1

STEERING CYLINDER

ASSEMBLY - 57 (2-1/4) ID x 229 mm (9 inch) stroke, right-hand, Includes: Ref. 1-14

1шт.

435663A1R

REMAN-HYD CYLINDER

8930, 8940, 8950, Right Hand Cyl., Reman For New P/N's 231008A1 & 435663A1

1шт.

435663A1C

CORE-HYD CYLINDER

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1282023C1

LOCK NUT

hex lock, cylinder rod

1шт.

3

247285A1

PISTON

cylinder, no longer available, order correct assembly

1шт.

247612A1

SEAL KIT

KIT - cylinder repair, Includes: Ref. 4-14

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - wear

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

15

231009A1

PISTON ROD

cylinder, right-hand (Shown)

1шт.

15

231010A1

PISTON ROD

cylinder, left-hand

1шт.

18

247289A1

CYLINDER END CAP

GLAND - no longer available, order correct assembly

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

20

429-1314

NUT,7/8"-14, G8

hex, 7/8 inch NF, grade 8

1шт.

21

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

25

1277261C1

BALL JOINT

ASSEMBLY - cylinder, Includes: Ref. 26, 27, 28

2шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

27

429-1314

NUT,7/8"-14, G8

hex, 7/8 inch NF, grade 8

1шт.

28

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

29

414-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

BOLT - hex, 5/8 NF x 2-3/4 inch

2шт.

30

492-11062

BEARING WASHER,5/8"

2шт.

31

425-1110

NUT,5/8"-18, G5

2шт.
