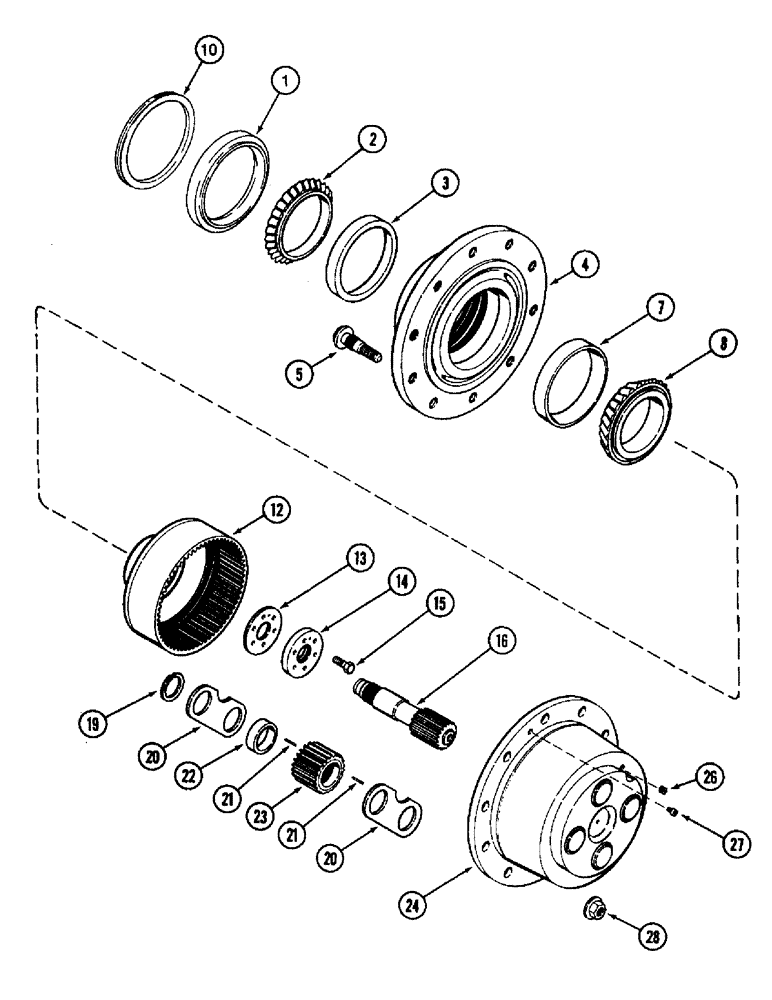

Запчасти Case IH 8950 (5-036) - FRONT AXLE PLANETARIES AND HUB, MFD TRACTOR (05) - STEERING

243305A2

AXLE, FRONT

ASSEMBLY - 30 kph, 4:10 ratio, see Figures 5-28 - 5-38 (If used)

1шт.

243305A2R

REMAN-AXLE, MFD

Remanfactured - Axle - 8930/40/50 Prod. 11/96 Starting SN JJA0072001 30 KPH

1шт.

243305A2C

CORE-AXLE, MFD

Return Part Number

1шт.

243304A2

AXLE

ASSEMBLY - front, 40 kph, 3:73 ratio, see Figures 5-28 - 5-38 (If used), Includes: Ref. 1-26 and Gear Assy

1шт.

243304A2R

REMAN-AXLE, MFD

Reman - Axle - 7230/40/50 Production 2/97 & 8930/40/50 11/96 Starting SN JJA0072001 40 KPH

1шт.

243304A2C

CORE-AXLE, MFD

Return Part Number

1шт.

1

328500A1

OIL SEAL

oil, wheel hub, rerplaces 128648A1 seal

2шт.

2

1277343C1

ROLLER BEARING,107.963 mm ID x 158.763 mm OD x 23.122 mm

tapered roller, inner

2шт.

3

1277344C1

BEARING CUP

tapered roller, inner

2шт.

4

231022A1

HUB

front wheel

2шт.

5

231023A1

STUD,M20 x 1.5 x 67mm, Class 8.8

BOLT - wheel

20шт.

7

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

tapered roller bearing, outer

2шт.

8

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

tapered roller, outer

2шт.

10

1349339C1

SEAL,171mm ID x 187mm OD x 12mm Thk

V-ring

2шт.

12

1277250C1

GEAR, RING

RING, GEAR planetary

2шт.

1981236C1

SHIM KIT

KIT - wheel end, replaces 252358A1 kit, Includes: Ref. 13, 13, 13, 13, 13, 13

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.001 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.002 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.005 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.010 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.020 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.030 inch (Set of 5)

1шт.

14

251190A1

LARGE PLATE

PLATE, LARGE retaining, planetary carrier

2шт.

15

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

16

250728A1

SUN GEAR,Planetary Drive

Planetary drive

2шт.

16

250728A1R

REMAN-GEAR

Planetary drive

2шт.

16

250728A1C

CORE-GEAR

RETURN NUMBER

2шт.

249416A1

GEAR WHEEL

ASSEMBLY - drive, planetary, includes items 19 - 26, no longer available, order 322435A1 gear assembly below

2шт.

291053A1

WHEEL GEAR

ASSEMBLY - drive, planetary, includes items 19 - 26, no longer available, order 322435A1 gear assembly below

2шт.

86020257

FLANGE

ASSEMBLY - drive planetary, replaces assemblies 249416A1 and 291053A1, Includes: Ref. 19-26

2шт.

19

102-12175

SNAP RING,#175, 1.673", Ext Spiral

external spiral retaining, No. 175

4шт.

20

1277372C2

SPACER

flat, 1/16 inch thick, used in gear assembly 249416A1

8шт.

20a

291069A1

SPACER

flat, used in gear assembly 291053A1, not shown

2шт.

20b

322430A1

WASHER

SPACER - flat, 7/64 inch thick, used in gear assembly 2322435A1, not shown

2шт.

21

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

BEARING -

476шт.

22

1277371C1

SPACER

bearing

4шт.

23

1349038C1

PINION

GEAR - planetary

4шт.

24

231024A1

FLANGE

CARRIER - planetary gears, used in gear assembly 249416A1, no longer available, order 322433A1 below

1шт.

24a

291049A1

FLANGE

CARRIER - planetary gears, used in gear assembly 291069A1, no longer available, order carrier 322433A1 below, not shown

1шт.

24b

322433A1

FLANGE

CARRIER - planetary gears, used in gear assembly 86020257, not shown

1шт.

26

221-887

PLUG

square socket, 3/4 inch PT

1шт.

27

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

4шт.

28

230856A1

FLANGE NUT

hex flange, wheel

20шт.
