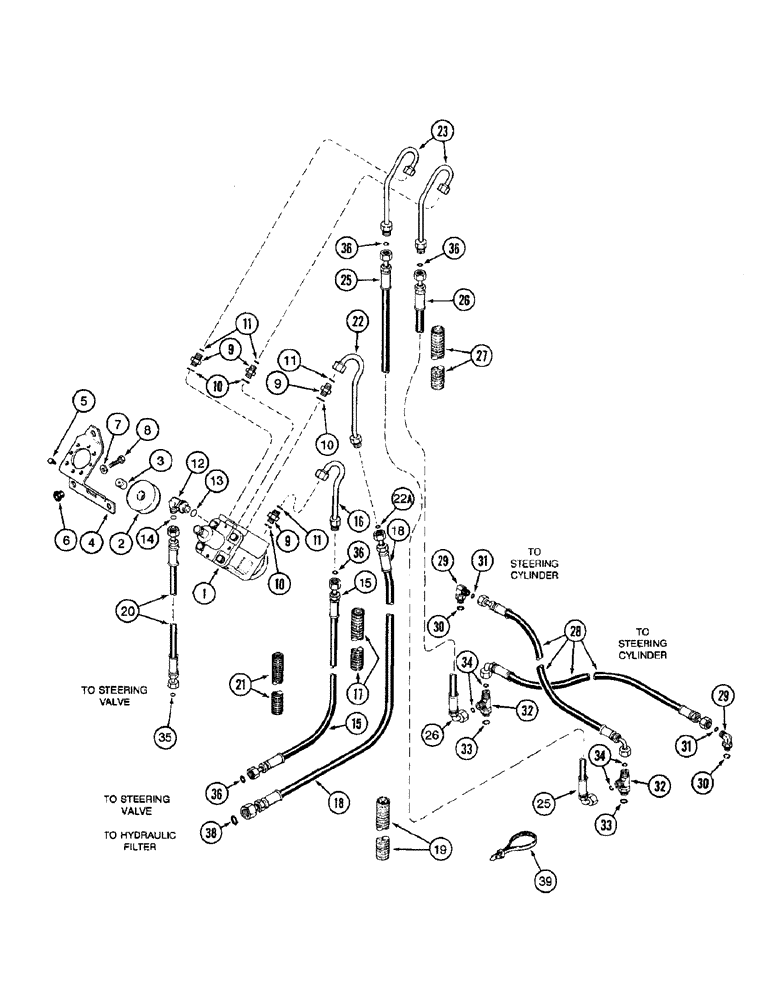

Запчасти Case IH 8940 (5-006) - HYDROSTATIC STEERING SYSTEM, STEERING PUMP TO STEERING CYLINDER, MFD TRACTOR (05) - STEERING

1

225390A2

STEERING VALVE

ASSEMBLY - steering, hydrostatic, parts list Figure 5-12

1шт.

225390A2R

REMAN-HYD PUMP

8930, 8940, 8950, All (1/97-12/98)

1шт.

225390A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

1977683C1

SEAL

dust

1шт.

3

104008C1

RUBBER INSULATOR

vibration

1шт.

4

1344478C1

SUPPORT

BRACKET - mounting, pump

1шт.

5

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

6

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

vibration damper

3шт.

7

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

3шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 10, 11

4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

90 degree, 9/16-18 face seal x 7/16-20 inch adj O-ring boss, Includes: Ref. 13, 14

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

1334378C1

HOSE ASSY.,12.7mm ID x 533mm L

533 mm (21 inch) long

1шт.

16

1978481C1

HYD TUBE

TUBE - steering supply, upper

1шт.

17

1342026C2

PIPE

SLEEVE - corrugated, bulk, 32 (1-1/4) x 37 (1-7/16) x 565 mm (22-1/4 inch) long

1шт.

18

1342123C2

HOSE,15.88mm ID x 967mm L, SAE 100R3

return, 967 mm (38-1/8 inch) long

1шт.

19

1334592C4

PIPE

SLEEVE - corrugated, bulk, 41 (1-5/8) x 49 (1-15/16) x 585 mm (23-1/32 inch) long

1шт.

20

1542766C1

HOSE,6.35mm ID x 650mm L

steering signal, 650 mm (25-5/8 inch) long

1шт.

21

1968083C3

TUBE,27 mm ID, 34 mm OD

SLEEVE - corrugated, 940 mm (37 inch) long, cut from 1978484C2 bulk sleeve

1шт.

22

1978482C1

HYD TUBE

TUBE - steering return

1шт.

22a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

1978480C2

TUBE

TUBE - right and left turn

2шт.

25

1976786C1

HOSE ASSY.,12.7mm ID x 2515mm L

2515 mm (99 inch) long, right turn

1шт.

26

1976799C1

HOSE ASSY.,12.7mm ID x 2108mm L

2108 mm (83 inch) long, left turn

1шт.

27

1342026C2

PIPE

SLEEVE - corrugated, bulk, 32 (1-1/4) x 37 (1-7/16) x 565 mm (22-1/4 inch) long

2шт.

28

251324A1

HOSE ASSY.,9.5mm ID x 727mm L, SAE 100R1

crossover, 727 mm (28-5/8 inch) long

2шт.

29

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 30, 31

2шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

32

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

13/16-16 face branch x face x 3/4-16 inch adj O-ring, Includes: Ref. 33, 34

2шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

38

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

39

A169433

CABLE TIE,304.8mm L

tie

1шт.
