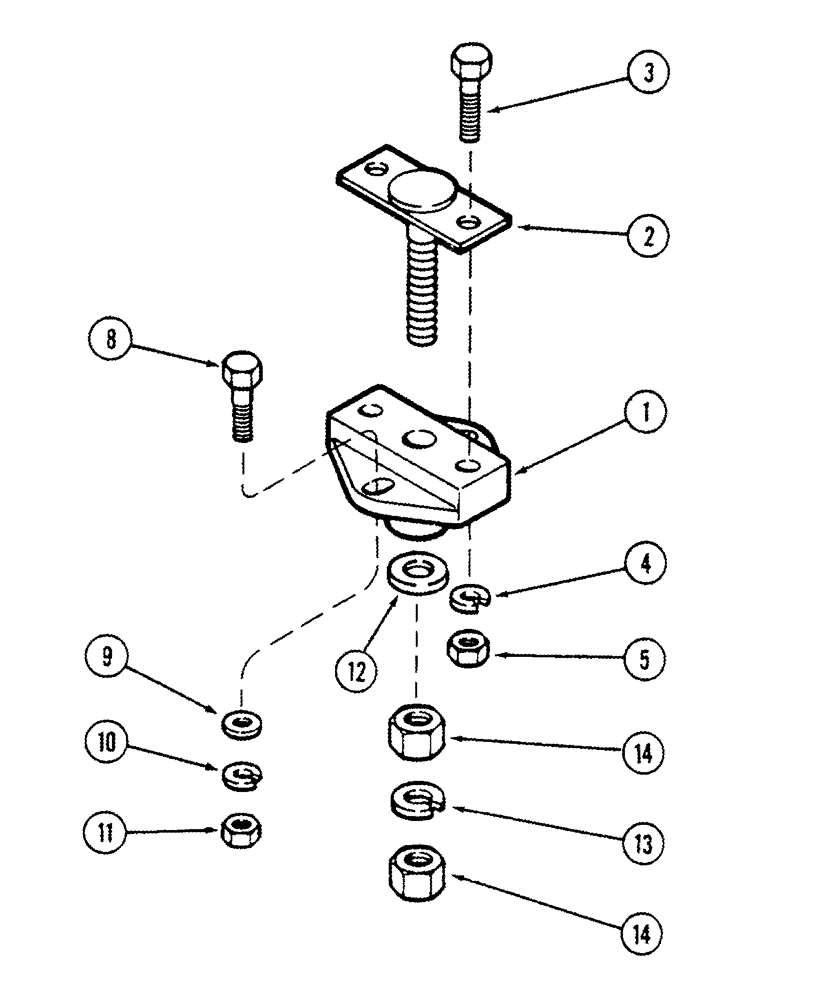

Запчасти Case IH 8940 (4-026) - ELECTRICAL COMPONENT MOUNTING (04) - ELECTRICAL SYSTEMS

1

468647C2

BLOCK ASSY.

junction, power and ground

1шт.

2

1964561C1

BAR

junction block buss

1шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

4

492-11025

LOCK WASHER,1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

2шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads

2шт.

9

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

10

892-11006

LOCK WASHER,M6

2шт.

11

829-1306

NUT,M6, Cl 10

2шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.
