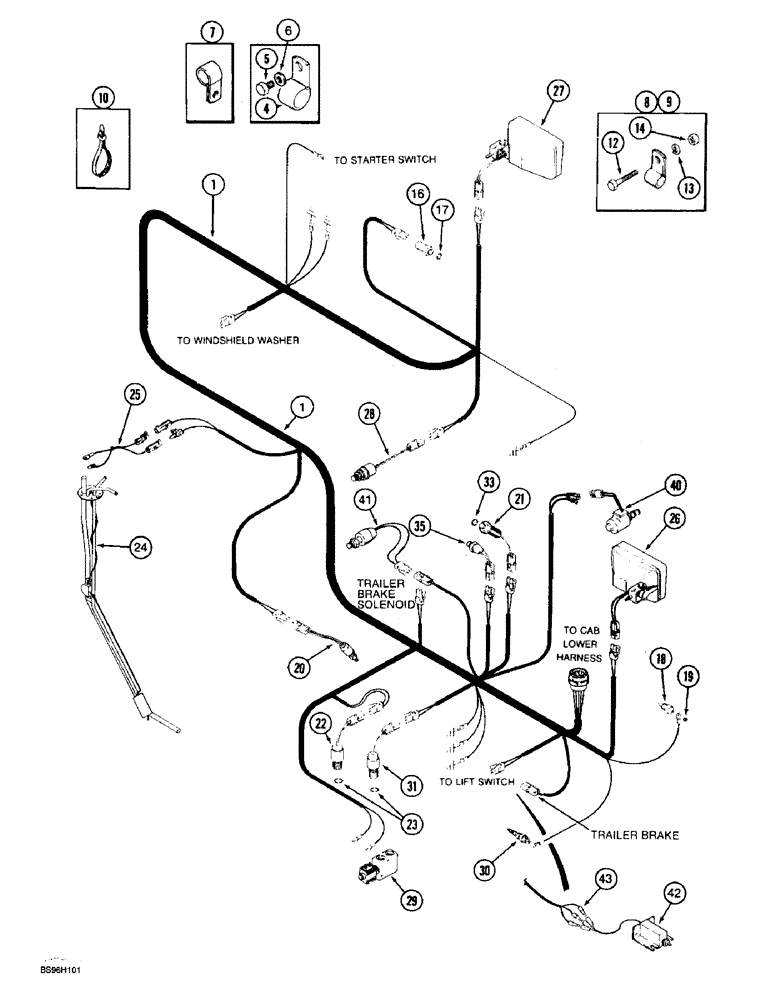

Запчасти Case IH 8940 (4-012) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

189573A2

HARNESS

transmission speed and range, prior to transmission serial number AJB0099462

1шт.

1

320689A1

HARNESS

transmission speed and range, transmission serial number AJB0099462 and after

1шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type

1шт.

5

814-10012

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 12 mm, if used

1шт.

5

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm, if used

1шт.

6

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

flat, 11 x 24 x 3 mm, hardened, used with 613-10030 bolt, if used

1шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

492-11031

LOCK WASHER,5/16"

1шт.

33

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

14

425-105

NUT,5/16"-18, G5

1шт.

16

1983218C2

SWITCH

neutral start

1шт.

18

A176566

TRANSMITTER

SENDER - transmission oil temperature

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

20

1546462C2

SENSOR

lube oil pressure

1шт.

21

101813A2

IGNITION SWITCH

transmission system pressure, located on the inlet of transmission control valve, prior to transmission control valve, prior to transmission serial number AJB0041225

1шт.

21

244451A1

PRESSURE SWITCH

transmission system pressure, located on the PTO valve, transmission serial number AJB0041225 and after

1шт.

22

A186005

SENSOR

tractor speed

1шт.

23

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

24

193855A2

FUEL GAUGE

SENSOR - auxiliary fuel tank level

1шт.

25

92261C1

HARNESS

sender, auxiliary fuel level

1шт.

26

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, right, parts list Figure 4-40

1шт.

27

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, left, parts list Figure 4-40

1шт.

28

1958159C2

SOLENOID VALVE

ASSEMBLY - drive, creeper

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, MFD, parts list page 8-13 for correct assembly and components

1шт.

30

1957801C1

PRESSURE SWITCH

Filter pressure

1шт.

31

A186004

SENSOR

engine rpm

1шт.

35

REF

INSTRUCTION

SOLENOID VALVE ASSEMBLY - PTO, parts list Figure 8-8

1шт.

40

REF

INSTRUCTION

SOLENOID VALVE ASSEMBLY - differential lock, parts list Figure 8-8

1шт.

41

1546463C1

SWITCH, PRESSURE

PRESSURE SWITCH flow compensated (PFC)

1шт.

42

221545A1

KIT

KIT - implement status, includes lift switch and associated parts, plus instructions, as an acre counter kit is used alone, if attaching a trailing implement, also order 221546A1 extension harness

1шт.

43

221546A1

HARNESS

extension, 30 foot, used with 221545A1 implement status switch kit on models with trailing implements, if used

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
