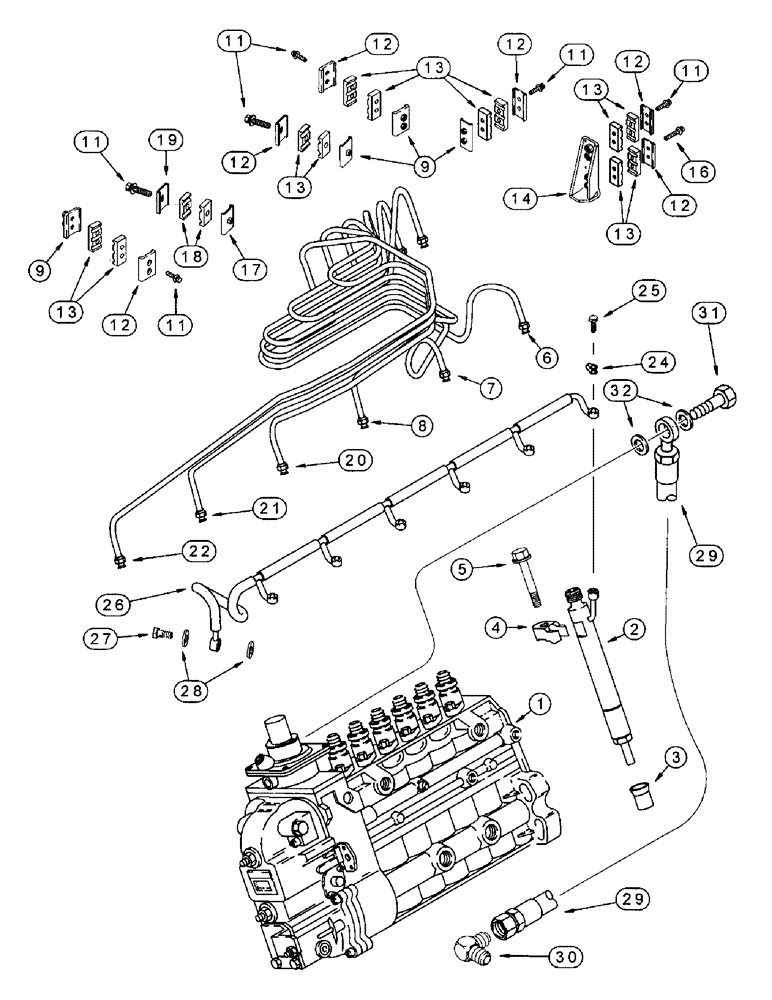

Запчасти Case IH 8940 (3-004) - FUEL INJECTION SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, 8940 TRACTOR ONLY (03) - FUEL SYSTEM

1

J926885

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, parts list Figure 3-20, no longer available, order J935106 pump assembly below, (Tractors serial numbers JJA0072000 through JJA0094122 must also order updated injector tubes, items 6A - 8A or 22A as needed

1шт.

1

J935106

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, parts list Figure 3-20

1шт.

2

J930525

INJECTOR ASSY.

fuel, parts list Figure 3-24

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, repalces J922018 bolt

6шт.

6

J930355

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 1 cylinder, if used

1шт.

M12 x 1.5 thread one end, M14 x 1.5 on other.

1шт.

6a

J935074

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 1 cylinder (Tractors serial number JJA0072000 through JJA0094122), not shown

1шт.

Part of the Fuel Injector Tube Kit P/N J935073 (M19 x 1.5 Both Ends)

1шт.

7

J930356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 2 cylinder, if used

1шт.

M12 x 1.5 thread one end, M14 x 1.5 on other.

1шт.

7a

J935076

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 2 cylinder (Tractors serial numbers JJA0072000 through JJa0094122), if used

1шт.

Part of the Fuel Injector Tube Kit P/N J935073 (M19 x 1.5 Both Ends)

1шт.

8

J930357

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 3 cylinder, if used

1шт.

M12 x 1.5 thread one end, M14 x 1.5 on other.

1шт.

8a

J935078

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 3 cylinder (Tractors serial numbers JJA0072000 through JJA0094122), not shown

1шт.

Part of the Fuel Injector Tube Kit P/N J935073 (M19 x 1.5 Both Ends)

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

3шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

10шт.

12

J904519

SUPPORT

tube retaining

5шт.

13

J917747

CLAMP

fuel tube

10шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

16

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET - fuel tube

2шт.

18

J917746

CLAMP

fuel tube

4шт.

19

J904711

SUPPORT

BRACKET - fuel tube

2шт.

20

J930358

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder, if used

1шт.

M12 x 1.5 thread one end, M14 x 1.5 on other.

1шт.

20a

J935080

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - injector, No. 4 cylinder (Tractors serial number JJA0072000 through JJA0094122), not shown

1шт.

Part of the Fuel Injector Tube Kit P/N J935073 (M19 x 1.5 Both Ends)

1шт.

21

J930359

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 5 cylinder, if used

1шт.

M12 x 1.5 thread one end, M14 x 1.5 on other.

1шт.

21a

J935082

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 5 cylinder (Tractors serial numbers JJA0072000 through JJA0094122), not shown

1шт.

Part of the Fuel Injector Tube Kit P/N J935073 (M19 x 1.5 Both Ends)

1шт.

22

J930360

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 6 cylinder, if used

1шт.

M12 x 1.5 thread one end, M14 x 1.5 on other.

1шт.

22a

J935084

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 6 cylinder (Tractors serial number JJA0072000 through JJA0094122), not shown

1шт.

Part of the Fuel Injector Tube Kit P/N J935073 (M19 x 1.5 Both Ends)

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.

29

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump

1шт.

30

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

31

J918002

BANJO BOLT

banjo, hose to injection pump

1шт.

32

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.

33

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

If used, Not shown

12шт.

J935073

FUEL TUBE,332.5, 685 mm L

KIT - fuel injector tubes, Includes: Ref. 6A, 7A, 8A, 20A, 21A & 22A plus mounting clamps and hardware

1шт.
