Запчасти Case IH 8940 (9-102) - AIR CONDITIONING, CONDENSER AND RECEIVER DRIER (09) - CHASSIS/ATTACHMENTS

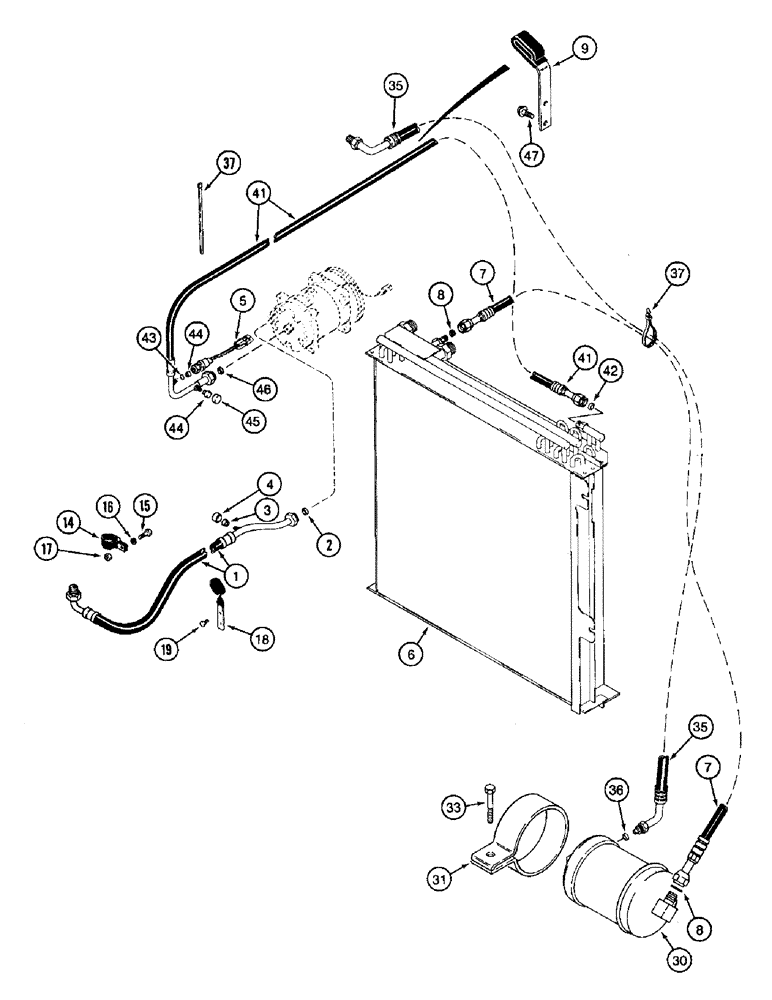

Схема запчастей Case IH 8940 - (9-102) - AIR CONDITIONING, CONDENSER AND RECEIVER DRIER (09) - CHASSIS/ATTACHMENTS
37
8
46
17
35
9
44
37
19
3
31
36
8
33
35
41
7
1
18
5
7
44
43
30
15
4
6
41
47
45
42
2
16
14

Артикул

Название

Примечание

Количество

1

1999922C1

HOSE

1650 mm (65 inch) long, suction, compressor to cab base, R12 refrigerant applications only, no longer available, order 1999922C2 hose below

1шт.

1

1999922C2

HOSE

1650 mm (65 inch) long, suction, compressor to cab base, 134A and R12 refrigerant applications, Includes: Ref. 2, 3, 4

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor

1шт.

3

1250594C2

CORE

VALVE -

1шт.

4

122553A1

CAP

sealing

1шт.

5

232948A1

SWITCH, A/C HIGH PRE

400 psi, Replaces 375 psi switch used on some models

1шт.

6

181583A1

CONDENSER

air conditioning, see Figure 5-18 for hardware attaching condenser to oil cooler, see Figure 3-34 or 3-38 for fuel cooler lines

1шт.

7

192929A2

HOSE

413 mm (16-17/64 inch) long, condenser to receiver-drier, Includes: Ref. 8

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

9

223357A1

FIXING BRACKET

CLAMP - retaining

1шт.

14

1954490C2

CLAMP

retaining

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

1шт.

18

1954766C2

CLAMP

retaining

1шт.

19

762-24613

SELF-TAP SCREW,Flat Hd, M6 x 13

Special

2шт.

30

1990758C2

RECEIVER-DRYER

air conditioning

1шт.

31

T102980

CLAMP

BRACKET - receiver-drier mounting

1шт.

33

276-14832

SELF-TAP SCREW,Hex Hd, 5/16" x 2"

1шт.

35

131249A2

HOSE

2800 mm (110-1/4 inch) long, receiver-drier to cab, Includes: Ref. 36

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

41

186468A2

HOSE

1500 mm (59-1/16 inch) long, discharge, compressor to condenser, R12 refrigerant applications only, see 186468A3 hose below

1шт.

41

186468A3

HOSE

1500 mm (59-1/16 inch) long, discharge, compressor to condenser, 134A and R12 refrigerant applications, Includes: Ref. 42-46

1шт.

42

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, at condenser

1шт.

43

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, at pressure switch fitting

1шт.

44

1250594C2

CORE

VALVE -

2шт.

45

122554A1

CAP

Sealing, charge port

1шт.

46

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor

1шт.

47

234017A1

HEX SOC SCREW

BOLT - hex socket, 8 - 1.25 x 16 mm, mounts hoses to radiator, replaces 844-8016 bolt

2шт.

Выбрано товаров: 30
