Запчасти Case IH 8940 (9-096) - CAB, AIR FILTER AND BLOWER HOUSING (09) - CHASSIS/ATTACHMENTS

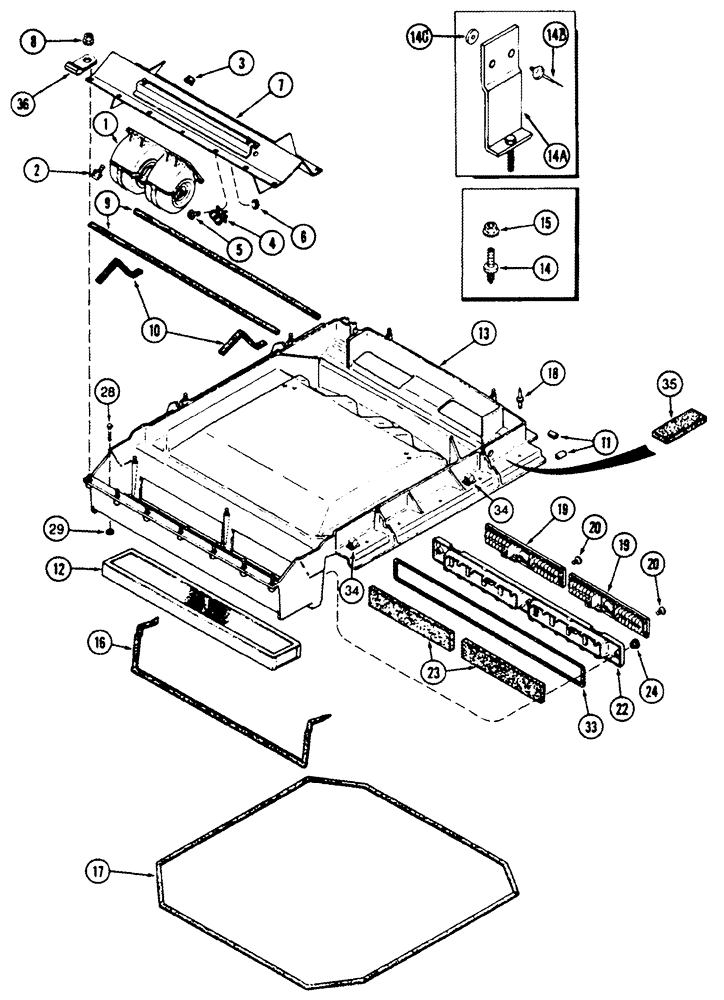

Схема запчастей Case IH 8940 - (9-096) - CAB, AIR FILTER AND BLOWER HOUSING (09) - CHASSIS/ATTACHMENTS
29
12
14a
17
3
34
34
24
22
5
20
10
19
14
11
2
14b
23
35
6
7
20
16
33
13
19
28
8
36
15
18
1
9
4
14c

Артикул

Название

Примечание

Количество

1

355190A1

BLOWER,12V

cab, air, component parts are not serviced separately, replaces 1977564C2 blower

1шт.

1

355190A1R

REMAN-BLOWER,12V

Electronics - Other

1шт.

1

355190A1C

CORE-BLOWER,12V

Return Number, BLOWER

1шт.

2

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

4шт.

3

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

4шт.

4

1343938C2

RESISTOR

blower

1шт.

5

30495R1

SCREW,Cross Pan Hd, M3 x 12

2шт.

6

824-1403

NUT,M3, Cl 5

2шт.

7

240877A1

SUPPORT

blower

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

10шт.

9

97198C2

SEAL

1080 mm (42-17/32 inch) long, cut from 195917C1 bulk seal, see below

2шт.

10

245358A1

SEAL

371 mm (14-5/8 inch) long, cut from 182747C1 bulk seal, see below

2шт.

11

1954714C1

EDGE

TRIM - 41mm (1-5/8 inch) long, cut from 1327666C1 bulk trim, see below

2шт.

12

303748A1

CAB FILTER

air, cab, replaces 240883A1 filter

2шт.

13

240866A1

PANEL

ASSEMBLY - inner roof, Includes: Ref. 14-14C

1шт.

14

97176C1

STUD

inner roof panel

23шт.

14a

244841A1

SUPPORT

BRACKET - filter door mount

2шт.

14b

151-562

RIVET,Pop, 3/16" x .700"

4шт.

14c

108003A1

WASHER,4.93mm ID x 11.94mm OD x 1.45mm Thk

backup

4шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

16

97199C1

SEAL

SEAL - 1750 mm (68-29/32 inch) long, cut from 182747C1 bulk seal, see below

1шт.

17

97200C1

SEAL

SEAL - 4440 mm (174-13/16 inch) long, cut from 182747C1 bulk seal, see below

1шт.

18

1330955C2

RIVET

mandrel, 3/16 inch

15шт.

19

1331102C2

DIFFUSER

LOUVER - air recirculation

2шт.

20

97212C1

SCREW,Pan, #6 - 20 x 7/8"

pan head, No. 6-20 x 7/8 inch

12шт.

22

240885A1

PANEL ASSY.

recirculated air filter

1шт.

23

240886A1

FILTER

recirculated air

2шт.

24

97135C1

KNOB

recirculation panel

3шт.

28

417-440

BOLT,Sq Hd, 1/4" - 20 x 2-1/2", Gr 2

2шт.

29

1971364C1

RETAINER

bolt

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL - recirculation panel, 94-9/64 inch (2391 mm) long, cut from 187874C2 bulk seal see below

1шт.

34

169850C2

CABLE CLIP

Retaining, inner roof panel, right-hand side

2шт.

35

1977988C1

FOAM

PAD - foam, filler

4шт.

36

362123R1

CLIP

harness

3шт.

182747C1

DOOR SEAL

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

187874C1

GASKET

SEAL - bulk, adhesive-backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 15240 mm (600 inch) long

1шт.

1327666C1

SEAL

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

Выбрано товаров: 38
