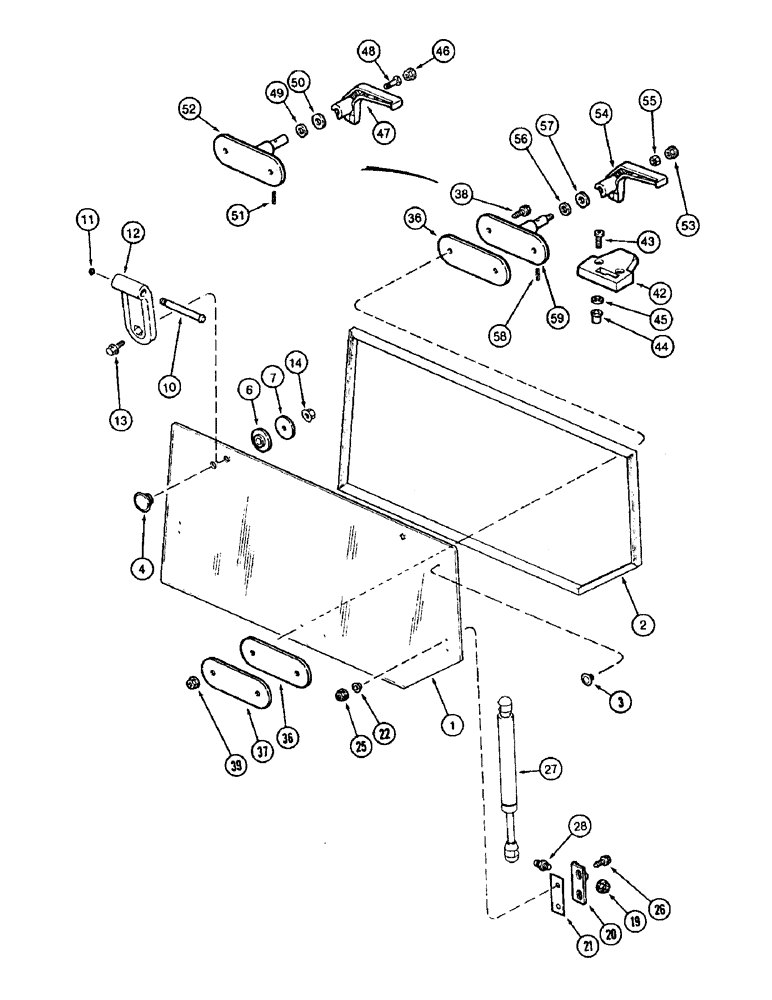

Запчасти Case IH 8940 (9-082) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

240875A1

GLASS

window, rear

1шт.

2

240876A1

SEAL,3882mm L

glass, window

1шт.

3

F66089

PLUG

3/8 inch diameter, window

1шт.

4

F66090

PLUG

29/32 inch diameter, window

1шт.

6

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

rubber

2шт.

7

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

flat, 6 mm

2шт.

10

K303517

PIN

hinge

2шт.

11

800-418

SNAP RING,M8, Ext

2шт.

12

1999808C1

HINGE

window

2шт.

13

107135A1

BOLT

BOLT - hex flange

2шт.

14

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

2шт.

19

1330064C1

FLANGE NUT

hex flange, self-locking, polyseal, 5/16 inch NC

2шт.

20

138739A1

SUPPORT

BRACKET - cylinder

2шт.

21

109587C2

PAD

bracket

2шт.

22

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

bolt

4шт.

25

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

4шт.

26

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

4шт.

27

1343825C1

GAS STRUT,306mm Extended, 207.02mm Compressed

CYLINDER - gas spring

2шт.

28

1999766C1

BALL JOINT

STUD -

2шт.

36

1340208C1

RUBBER PAD

PAD - rubber

2шт.

37

1340203C1

PLATE

clamping

1шт.

38

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

BOLT - hex flange, special

2шт.

39

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

2шт.

42

1340142C1

PLATE

striker

1шт.

43

261-34720

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

2шт.

44

97017C1

INSERT

threaded, 6 mm, if used

2шт.

45

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

194910A1

HANDLE

ASSEMBLY - window, with bolt instead of nut, if used, no longer available, order 224730A1 handle assembly below, Includes: Ref. 46-59

1шт.

46

1340207C1

PLUG

window hinge

1шт.

47

1340205C1

HANDLE

rear window, no longer available, to service order items 53, 54, 55, and 59 below

1шт.

48

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads

1шт.

49

1340206C1

RUBBER BUSHING

rubber

1шт.

50

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

51

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

52

194322A1

PLATE

clamping

1шт.

224730A1

HANDLE

ASSEMBLY - window, with 8 mm nut, if used

1шт.

53

224734A1

PLUG

window hinge, 1

1шт.

54

224731A1

HANDLE

rear window

1шт.

55

825-1408

NUT,M8, Cl 8

1шт.

56

1340206C1

RUBBER BUSHING

rubber

1шт.

57

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

58

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

59

224732A1

PLATE ASSY.

clamping

1шт.
