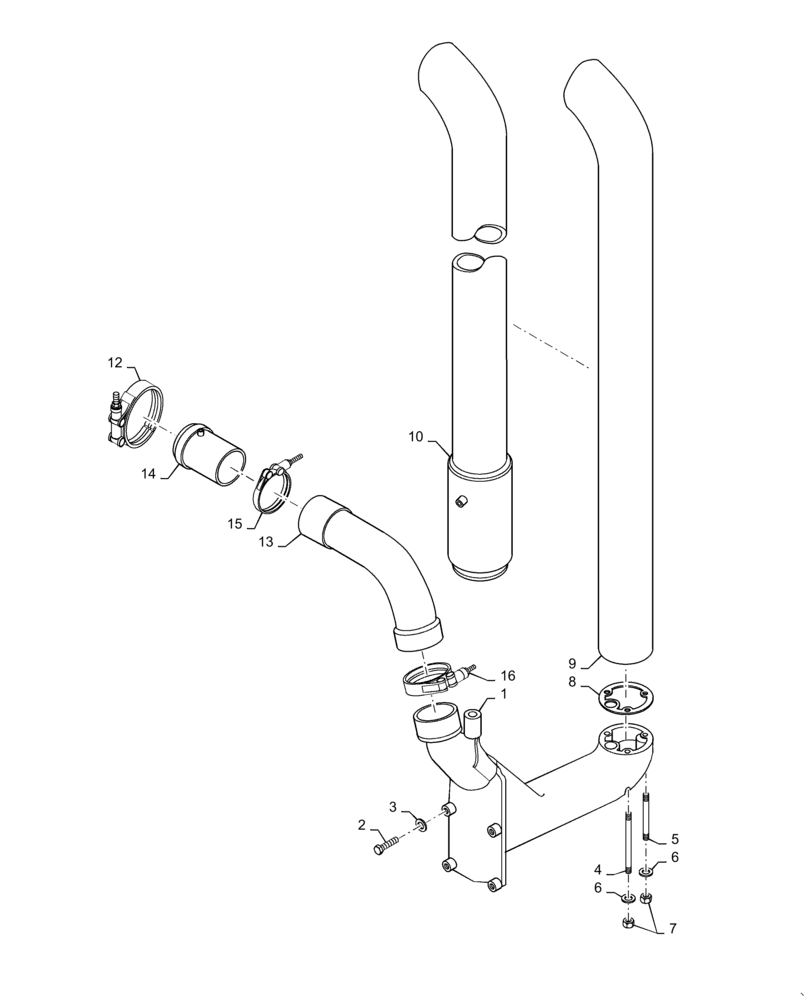

Запчасти Case IH 8940 (2-018) - EXHAUST SYSTEM (02) - ENGINE

1

1998855C2

ELBOW

exhaust casting

1шт.

2

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

1998799C2

STUD

12 x 150 mm

2шт.

5

1998800C2

STUD

12 x 60 mm

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

7

127594A1

NUT

hex, 12 mm - 1.75, special

3шт.

8

1998778C2

GASKET,1.22mm Thk

muffler, Serial Range: elbow-extension

1шт.

9

1347836C3

MUFFLER

PIPE - exhaust, muffler extension (8930 and 8940) if used

1шт.

9

229359A1

MUFFLER

PIPE - exhaust, muffler extension (8950) if used

1шт.

10

139789A3

MUFFLER

PIPE - exhaust, muffler extension, spark arresting muffler, if used, Includes: plug

1шт.

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

Not Shown

1шт.

12

A170807

CLAMP,102mm ID

retaining, special

1шт.

13

135725A3

TUBE

Exhaust Turbo, Incl 15, 16, Serial Range: --turbocharger

1шт.

14

180428A2

ADAPTER

turbocharger

1шт.

15

131853A1

CLAMP

Exhaust Tube, 4"

1шт.

16

131798A1

CLAMP

Exhaust Tube, 4.5"

1шт.
