(2-016) - ETHER STARTING SYSTEM

Запчасти Case IH 8940 (2-016) - ETHER STARTING SYSTEM (02) - ENGINE

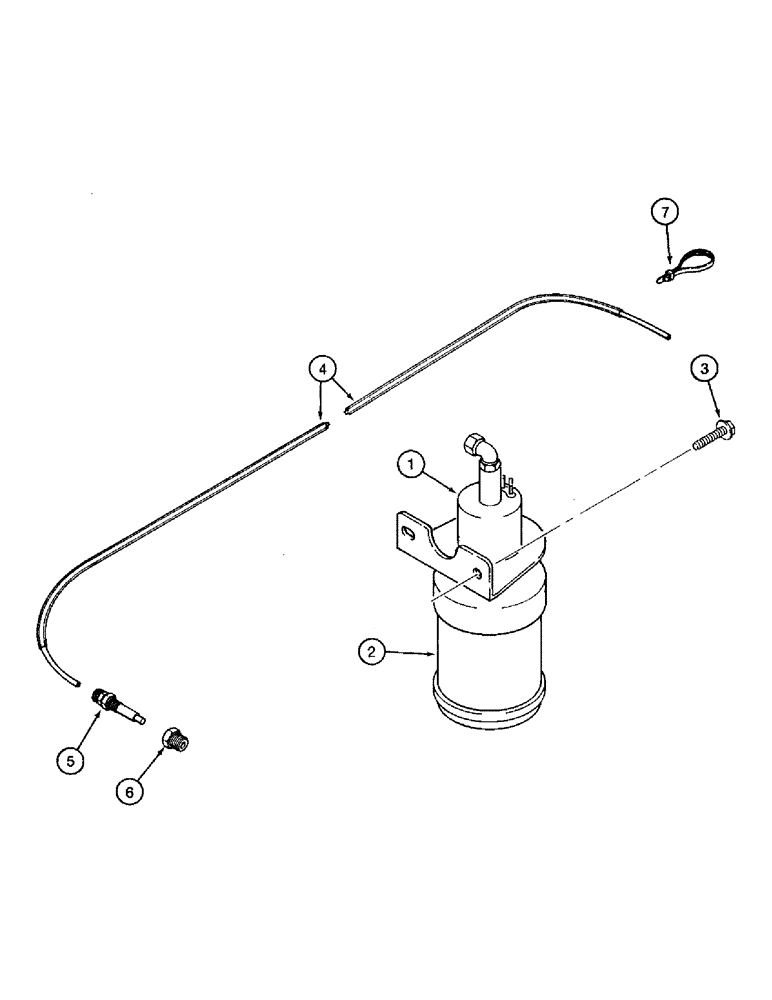

Схема запчастей Case IH 8940 - (2-016) - ETHER STARTING SYSTEM (02) - ENGINE
6
2
3
7
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

185552A2

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2

1шт.

2

190752A1

HOUSING

ether injection solenoid

1шт.

3

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

2шт.

4

A149932

TUBE

2006 mm (79 inch) long

1шт.

5

A172900

NOZZLE CAP

ASSEMBLY - atomizer

1шт.

6

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.
