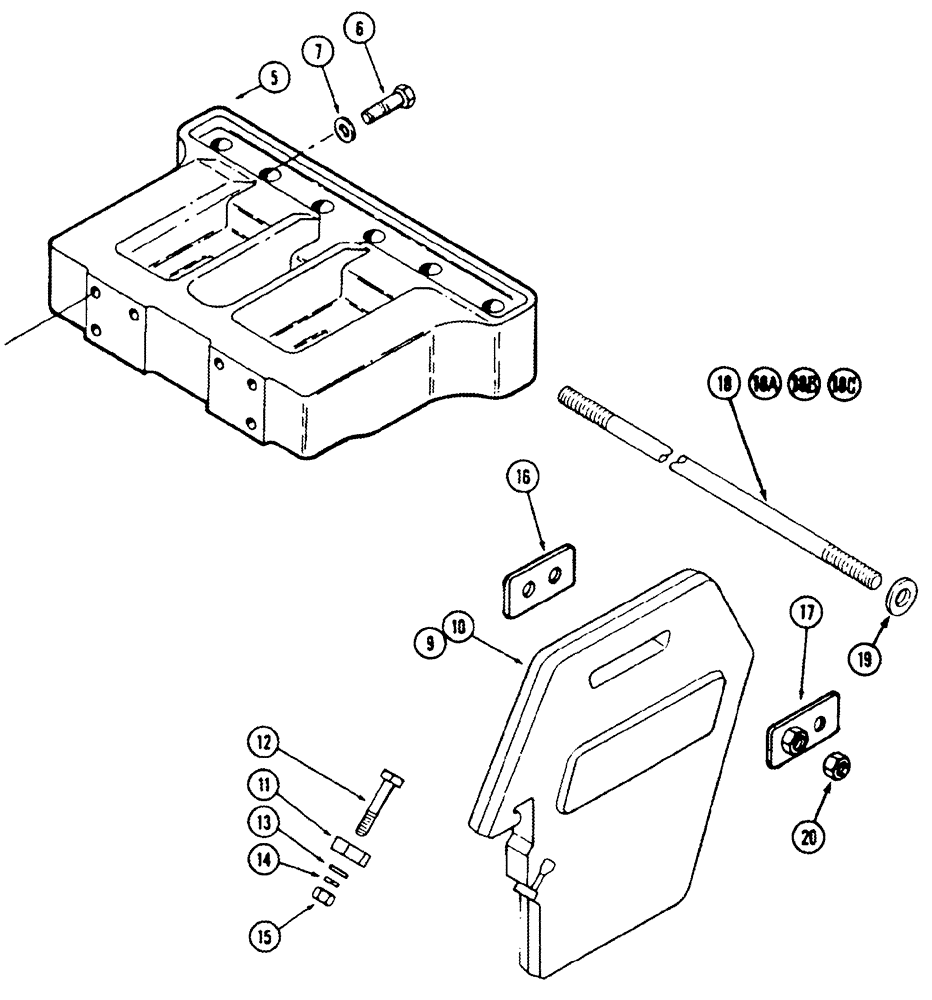

Запчасти Case IH 8940 (9-018) - FRONT END WEIGHT AND FRAME (09) - CHASSIS/ATTACHMENTS

243621A1

STRIPPER PACKAGE

FRAME ATTACHMENT - front, 22 weight, order from Machinery Price List, Includes: Ref. 5, 6, 7

1шт.

5

239385A4

SUPPORT

FRAME - front weight, maximum of 22 weights

1шт.

6

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

6шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

6шт.

247423A1

WEIGHT

ATTACHMENT - front, 6 weight, order from Machinery Price List, Includes: Ref. 9

1шт.

9

1347524C1

WEIGHT

front, order 1348233C1 or A67894 weight from Machinery Price List, 45.36 kgs, (100 pound)

6шт.

247424A1

ASSEMBLY

WEIGHT ATTACHMENT - front, 22 weight, order from Machinery Price List, INCLUDES REF 10

1шт.

10

1347524C1

WEIGHT

front, order 1348233C1 or A67894 weight from Machinery Price List, 45.36 kgs, (100 pound)

22шт.

A67919

ATTACHMENT

KIT - hardware, front weight, order from Machinery Price List, 1 kit required per 6 weights11-15

1шт.

11

1978431C1

CLAMP

weight

3шт.

12

A169139

SQUARE BOLT

square head, special, 1/2 NC x 3-1/4 inch

3шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

15

425-108

NUT,1/2" - 13, Gr 5

3шт.

16

1979024C1

PLATE

CLAMP - weight

1шт.

17

1979025C1

PLATE ASSY.

CLAMP - weight

1шт.

18

256475A1

TRUSS ROD

tie, threaded, 22 weight, 32-7/8 inch long, if used, shown

1шт.

18a

256551A1

TRUSS ROD

tie, threaded, 12 weight, 18-57/64 inch long, if used

1шт.

18b

296708A1

TRUSS ROD

tie, threaded, 6 weight, 10-45/64 inch long, if used

1шт.

18c

275782A1

TRUSS ROD

tie, threaded, 18 weight, 27-3/8 inch long, if used

1шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

3шт.
