Запчасти Case IH 8940 (9-015C) - DRAWBAR HAMMERSTRAP, CATAGORY III (09) - CHASSIS/ATTACHMENTS

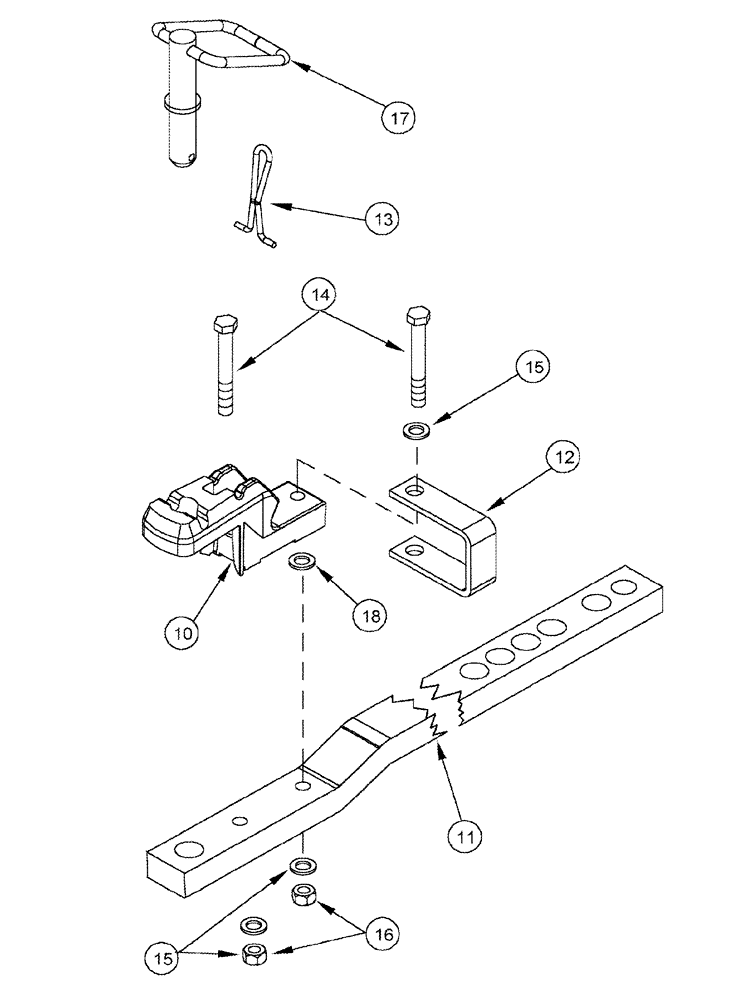

Схема запчастей Case IH 8940 - (9-015C) - DRAWBAR HAMMERSTRAP, CATAGORY III (09) - CHASSIS/ATTACHMENTS
17
12
15
16
14
10
13
18
11
15

Артикул

Название

Примечание

Количество

10

232615A2

DRAWBAR

HAMMERSTRAP - Catagory 3

1шт.

11

277702A1

DRAWBAR

swinging, no longer offered, order 294015A2 drawbar below

1шт.

11

294015A2

DRAWBAR

heavy duty

1шт.

12

233790A1

SUPPORT ASSY.

chain

1шт.

13

232617A1

LATCH

draw pin

1шт.

14

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

2шт.

15

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

3шт.

16

829-1420

NUT,M20, Cl 10

2шт.

17

232616A2

HITCH PIN

hammerstrap, special

1шт.

18

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

flat, 22 x 45 x 5 mm

1шт.

Выбрано товаров: 10
