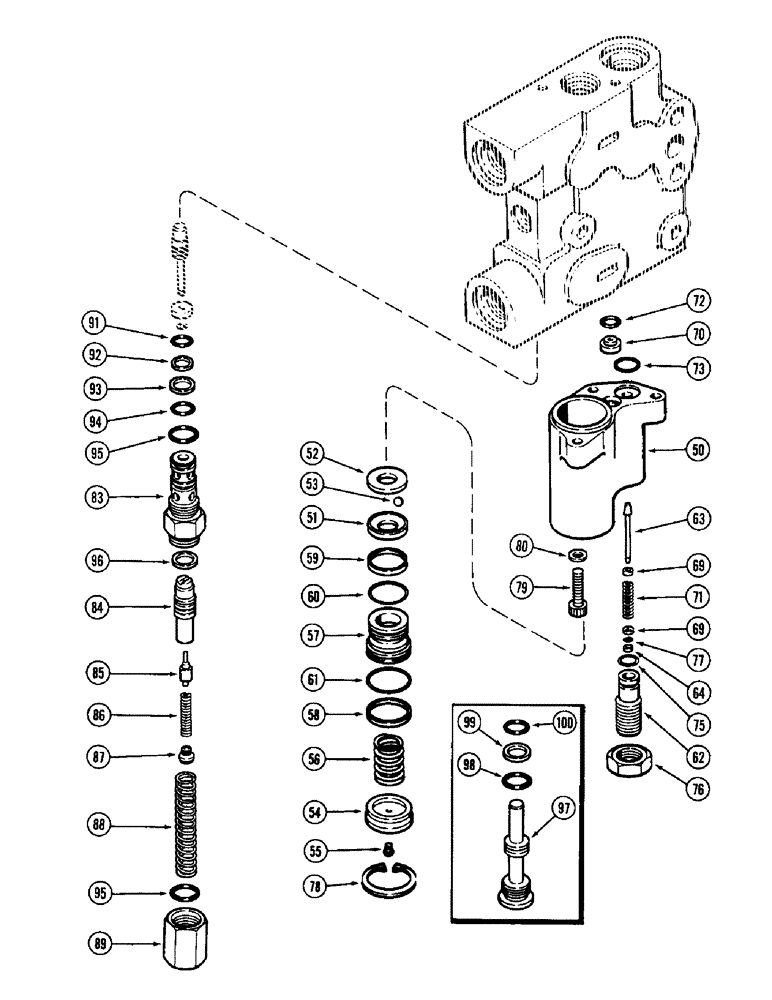

Запчасти Case IH 8940 (8-052) - HYDRAULIC REMOTE VALVE ASSEMBLY, FIRST REMOTE WITH LOAD CHECK (08) - HYDRAULICS

186760A4

VALVE

ASSEMBLY - remote hydraulic, continued, Includes: Ref. 50-100, and Detent Assy, Piston Assy, and Check Assy

1шт.

186440A2

SLIDE VALVE

DETENT ASSEMBLY - valve, Includes: Ref. 50-78, and Piston Assy

1шт.

50

186439A1

COVER ASSY

detent

1шт.

51

G108911

WASHER

detent, ball outer

1шт.

52

G108912

WASHER

detent, ball inner

1шт.

53

211-1007

BALL,7/32" Dia

Gr 24, Chrome alloy steel

8шт.

54

321361A1

RETAINER

ASSEMBLY - detent, replaces 1341975C1 retainer, Includes: Ref. 55, 55A

1шт.

55

G107780

VALVE, CHECK

PLUG - retainer

1шт.

55a

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

not shown

1шт.

56

G110152

SPRING

detent

1шт.

G108921

PISTON

ASSEMBLY - detent, Includes: Ref. 57-61

1шт.

57

G108908

PISTON

detent

1шт.

58

G108728

BACK-UP RING

large

1шт.

59

G108922

BACK-UP RING

small

1шт.

60

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

62

G110300

PLUG

adjusting, pilot relief

1шт.

63

G110279

VALVE POPPET

relief

1шт.

64

G110289

BACK-UP RING

1шт.

69

G110281

SPRING CUP

WASHER - retainer

2шт.

70

G108918

ORIFICE

WASHER -

1шт.

71

G109275

SPRING

pilot

1шт.

72

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

73

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

75

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

76

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

77

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

1шт.

78

100-21118

SNAP RING,1.188", Int, #118

1шт.

79

61-31016

HEX SOC SCREW,#10 - 24 x 1"

3шт.

80

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(Flat, 7/32" x 7/16" x 3/64")

3шт.

1971801C2

CHECK VALVE

ASSEMBLY - load, Includes: Ref. 83-96

1шт.

83

NSS

NOT SOLD SEPARAT

BODY - check

1шт.

84

NSS

NOT SOLD SEPARAT

POPPET - main

1шт.

85

NSS

NOT SOLD SEPARAT

POPPET - pilot

1шт.

86

1957817C1

VALVE SPRING

poppet

1шт.

87

1957964C1

RETAINER

spring

1шт.

88

1957965C1

VALVE SPRING

main

1шт.

89

NSS

NOT SOLD SEPARAT

CAP - load check (order 1971801C2)

1шт.

91

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

poppet

1шт.

92

G110287

BACK-UP RING

inner

1шт.

93

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

outer

1шт.

94

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

95

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

96

G108724

BACK-UP RING

1шт.

97

1971475C1

PLUG

lock check, Includes: Ref. 98, 99, 100

1шт.

98

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

99

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

poppet

1шт.

100

G110287

BACK-UP RING

inner

1шт.

61

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
