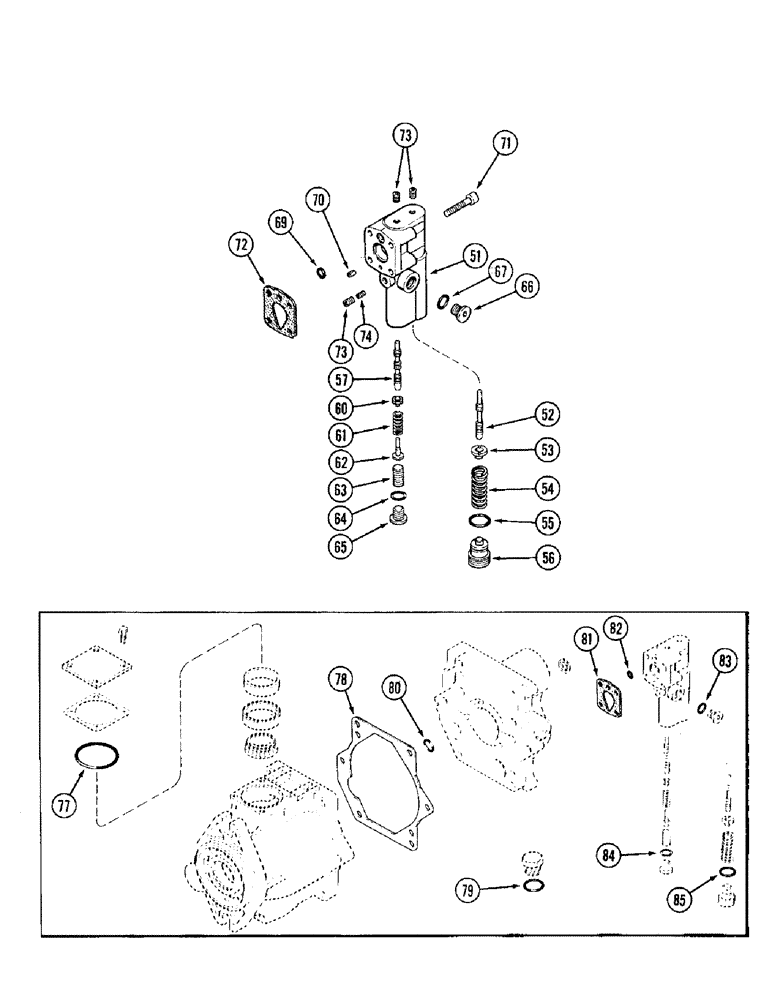

Запчасти Case IH 8940 (8-020) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
149619C3
PUMP,45.06 CC
ASSEMBLY - hydraulic piston (Continued), Includes: All Ref. No. Below
1шт.
1976861C1
PACKAGE
COMPENSATOR ASSEMBLY - pump, Includes: Ref. 51-74
1шт.
51
A49832
VALVE
BODY - compensator
1шт.
52
A47316
SPOOL
pressure, limiter, no longer available, order 1976861C1 assembly
1шт.
53
A47317
PLUG
SEAT - spool
1шт.
54
A47318
SPRING
spool
1шт.
55
238-8015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro
1шт.
56
A47320
PLUG
adjusting
1шт.
57
A47321
SPOOL
sensing, load, no longer available, order 1976861C1 assembly
1шт.
60
NSS
NOT SOLD SEPARAT
SEAT - spool
1шт.
61
NSS
NOT SOLD SEPARAT
SPRING - spool
1шт.
62
NSS
NOT SOLD SEPARAT
SEAT - lower
1шт.
63
NSS
NOT SOLD SEPARAT
SCREW - set, spool
1шт.
64
237-6005
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
1шт.
65
A49437
PLUG
hex socket
1шт.
66
278548
PLUG,Hex, 7/16"-20 ORB
1шт.
67
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
69
238-8011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro
1шт.
70
NSS
NOT SOLD SEPARAT
SCREW - set
1шт.
71
61-31020
HEX SOC SCREW,#10 - 24 x 1 1/4"
4шт.
72
A49436
GASKET
mounting
1шт.
73
221-850
PLUG,Hex Soc, 1/16"-27
hex socket, 1/16 inch PT
3шт.
74
NSS
NOT SOLD SEPARAT
ORIFICE - valve
1шт.
1263244C2
PACKAGE
KIT - seal replacement, Includes: Ref. 77-85
1шт.
78
A47280
GASKET,0.53mm Thk
housing
1шт.
79
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
80
238-8112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 8, 90 Duro
1шт.
81
A49436
GASKET
compensator
1шт.
82
238-8011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro
1шт.
83
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
84
237-6005
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
1шт.
85
238-8015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro
1шт.
Выбрано товаров: 33
