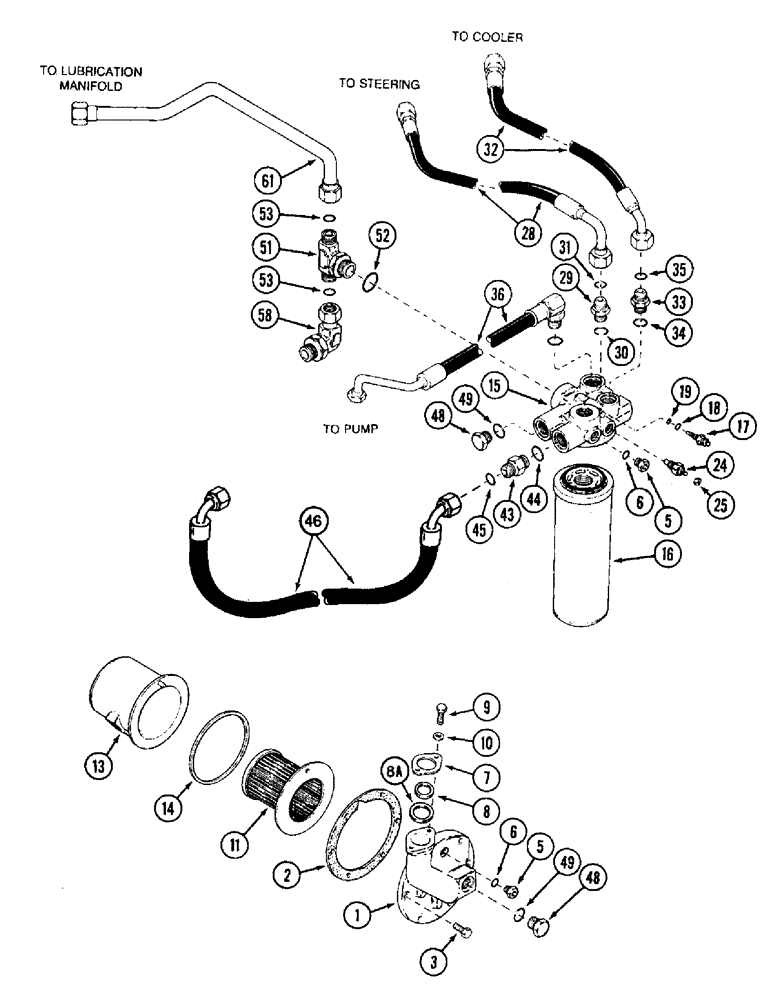

Запчасти Case IH 8940 (8-002) - HYDRAULIC TRANSMISSION FILTERS (08) - HYDRAULICS

1

1342139C1

BASE

PLATE - base, dual pump

1шт.

2

139241C3

GASKET

base

1шт.

3

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref 6

2шт.

7

1976758C1

MOUNTING CLIP

RETAINER - suction tube

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8a

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

9

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

10

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

flat, 11 x 24 x 3 mm, hardened

2шт.

11

1348335C1

SCREEN

pump inlet

1шт.

13

1348337C1

SHROUD

COVER - suction screen, Includes: Ref. 14

1шт.

14

1342641C1

GASKET,183.6mm ID x 192mm OD x 3mm Thk

cover

1шт.

1343732C1

FILTER ASSY

hydraulic, Includes: Ref. 15-19

1шт.

15

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

16

1971728C1

FILTER, ELEMENT

ELEMENT, FILTER ELEMENT - filter

1шт.

17

1957801C1

PRESSURE SWITCH

1шт.

18

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

19

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

24

A176566

TRANSMITTER

SENDER - temperature

1шт.

25

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

28

1342123C2

HOSE,15.88mm ID x 967mm L, SAE 100R3

return, 967 mm (38-1/8 inch) long, steering return

1шт.

29

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 30, 31

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

225399A2

HOSE,19.05mm ID x 3632mm L, SAE 100R1

3632 mm (143 inch) long, oil cooler return

1шт.

33

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 34, 35

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

36

1348346C1

HOSE ASSY.,25.4mm ID x 595mm L, SAE 100R1

595 mm (23-7/16 inch) long, Serial Range: pump-filter

1шт.

43

1971848C2

UNION

VALVE ASSEMBLY - check, Includes: Ref. 44, 45

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

46

109893A1

HOSE,25.4mm ID x 737mm L

737 mm (29 inch) long

1шт.

48

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 49

2шт.

49

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

51

201-405

TEE,2"-12 x 1 7/8"-12 Br, ORFS

1-7/8-12 adj O-ring branch x 2-12 inch face x face, Includes: Ref. 41, 53

1шт.

52

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

53

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

58

201-353

ELBOW,90 Degree Elbow, 2" - 12 Female ORFS x 1-7/8" - 12 Male ORB

90 deg, 2-12 swivel face x 1-7/8-12 inch adj O-ring

1шт.

61

1348257C1

TUBE,1.5" OD, 395.1, 265.8 mm Length

TUBE - lube manifold

1шт.

45

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
