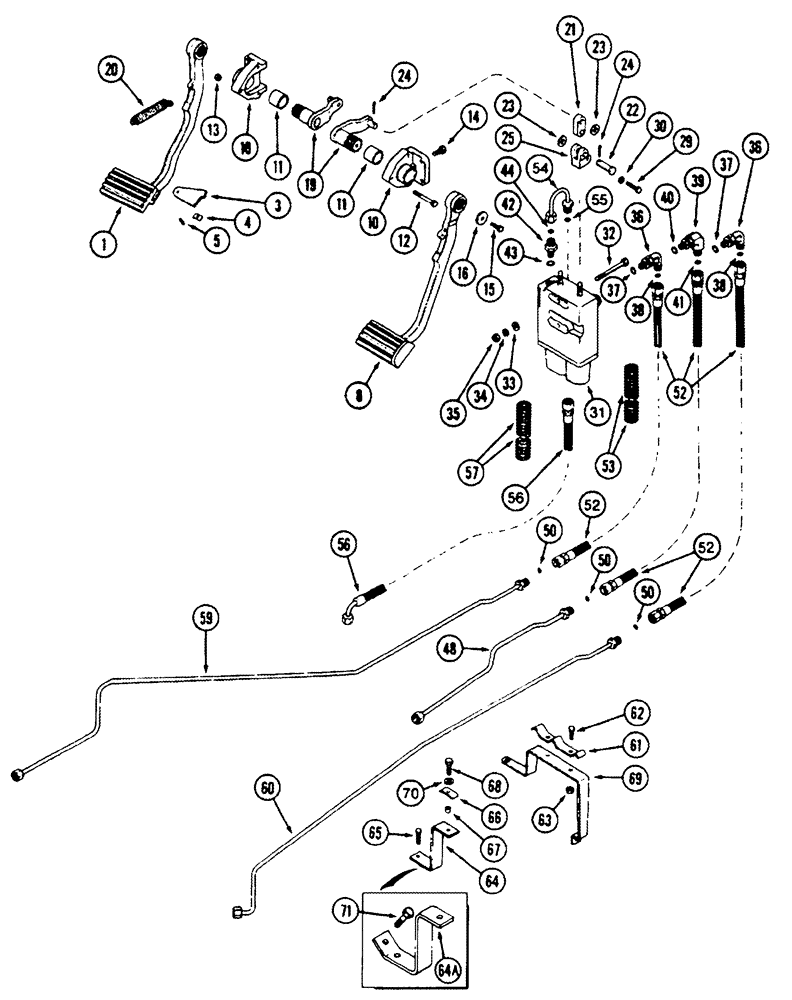

Запчасти Case IH 8940 (7-002) - BRAKE PEDAL SYSTEM (07) - BRAKES

1

1340257C1

PEDAL

brake, left-hand

1шт.

3

120451C1

PLATE

lock, pedal

1шт.

4

51293D0

SPRING, LEAF

tension

1шт.

5

38-21616

PIN,1/4" x 1", Coiled

1/4" x 1", Coiled

1шт.

8

1340258C2

PEDAL

brake, right-hand

1шт.

9

1977462C2

PAD

brake pedal, right-hand brake

1шт.

10

120175C1

HOUSING

ASSEMBLY - pedal, brake, Includes: Ref. 11

2шт.

11

120171C1

BUSHING

pivot

1шт.

12

413-538

BOLT,Hex, 5/16" - 18 x 2-3/8", Gr 5

BOLT - hex, 5/16 NC x 2-3/8 inch

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

495-81120

WASHER,.344" x 1 1/4" x .120"

flat, 11/32 x 1-1/4 x 7/64 inch

2шт.

19

103956C4

LEVER

pedal and valve

2шт.

20

104783C1

SPRING

return, pedal

2шт.

21

384082R1

LINK

operating, brake

2шт.

22

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

2шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

24

432-816

COTTER PIN,1/8" x 1"

4шт.

25

384083R2

YOKE

YOKE - brake

2шт.

29

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT - hex, 5/16 NC x 1-1/8 inch

2шт.

30

492-11031

LOCK WASHER,5/16"

2шт.

31

1272218C1

VALVE

ASSEMBLY - brake, parts list Figure 7-8

1шт.

32

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch

2шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-166

NUT,3/8"-16, G5, Hvy

heavy hex, 3/8 inch NC

2шт.

36

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 37, 38

2шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

92967C1

VALVE POPPET

ASSEMBLY - check, INCLUDES REFS 40, 41

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

42

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 43, 44

1шт.

44

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

48

1340543C2

TUBE,0.375" OD, 548.7, 61.8 mm Length

supply, valve

1шт.

50

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

52

1334376C2

HOSE ASSY.,9.5mm ID x 584mm L, SAE 100R1

584 mm (23 inch) long

3шт.

53

1334579C3

PIPE

SLEEVE - corrugated, 610 mm (24-1/64 inch) long, cut from 1978484C2 bulk sleeve

3шт.

54

1289242C1

HYD TUBE,0.375" OD, 57.15, 70 mm Length

return, brake, INCLUDES REF 55

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

56

1334377C2

HOSE ASSY.,9.5mm ID x 914mm L

914 mm (36 inch) long, return

1шт.

57

1968083C3

TUBE,27 mm ID, 34 mm OD

SLEEVE - corrugated, 940 mm (37 inch) long, cut from 1978484C2 bulk sleeve

1шт.

59

1340545C1

HYD TUBE

brake, left-hand, includes item 50

1шт.

60

1340544C1

HYD TUBE

brake, right-hand, includes item 50

1шт.

61

1334459C1

CLAMP

support, tube mounting

1шт.

62

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

63

825-1408

NUT,M8, Cl 8

2шт.

64

1968088C1

BRACKET

mounting, prior to serial number JJA0072000

1шт.

64a

292094A1

SUPPORT

BRACKET - tube, serail number JJA0072000 and after

1шт.

65

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

66

535307R1

CLAMP

tube (One piece used on tractors without hitch)

1-2шт.

67

3072723R1

SPACER

clamp (One piece used on tractors without hitch)

1-2шт.

68

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

(One piece used on tractors without hitch)

1-2шт.

69

1334460C1

BRACKET

support, tube

1шт.

70

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12 x 1.6 mm (One piece used on tractors without hitch)

1-2шт.

71

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
