Запчасти Case IH 8940 (6-090) - STEEL DUAL WHEELS, PRIOR TO P.I.N. JJA0083000 (06) - POWER TRAIN

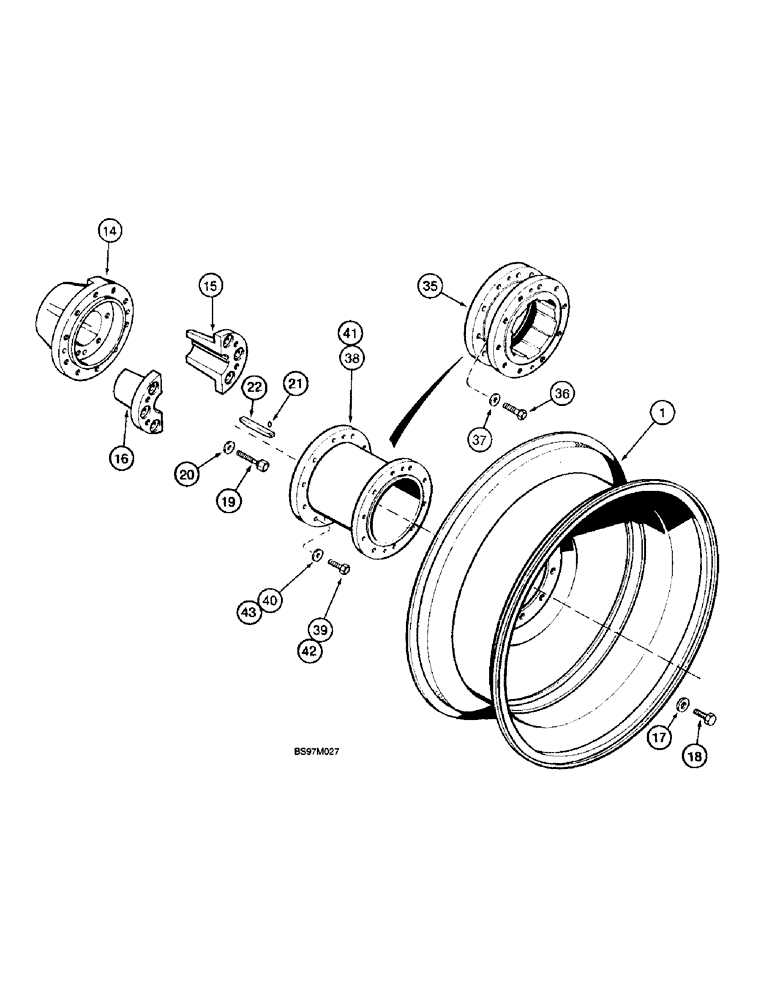

Схема запчастей Case IH 8940 - (6-090) - STEEL DUAL WHEELS, PRIOR TO P.I.N. JJA0083000 (06) - POWER TRAIN
39
22
42
14
40
18
16
20
41
21
1
36
17
35
43
38
37
15
19

№

Артикул

Название

Примечание

Количество

1

1334330C1

WHEEL

rim, for 18.4-38 tire

2шт.

1

1334331C1

RIM

WHEEL for 20.8-38 tire

2шт.

1

1334332C1

RIM

WHEEL for 18.4-42 tire

2шт.

1

1334333C1

RIM

WHEEL for 20.8-42 tire

1шт.

1

123408A2

RIM

WHEEL for 14.9-46 tire

2шт.

1

1348319C1

WHEEL ASSY.

rim, for 18.4-46 tire

2шт.

A67687

HUB

ATTACHMENT - wheel, 10 bolt, order from Machinery Price List, no longer available, order components, Includes: Ref. 14-22

1шт.

1334527C3

HUB

ASSEMBLY - wheel, 10 bolt, order from Machinery Price List, INCLUDES REFS 15-20

2шт.

14

A180916

HUB

wheel

1шт.

15

1334525C2

BUSHING

wheel, two piece, keyed half, 4 inch ID

1шт.

16

1334526C2

BUSHING

wheel, two piece, plain half, 4 inch ID

1шт.

17

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

10шт.

18

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

BOLT - hex, 7/8 NC x 2 inch, grade 8

10шт.

19

113-839

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8, Full Thd

6шт.

20

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

6шт.

21

A63219

KEY

axle, 3/4 x 6 inch

2шт.

22

38-11608

LOCK PIN,1/4" x 1/2", Slotted

4шт.

A187233

HUB

SPACER KIT - dual wheel, 5 inch, order from Machinery Price List, no longer available, order components, Includes: Ref. 35, 36, 37

1шт.

35

1342168C1

HUB

SPACER - dual wheel, 5 inch

2шт.

36

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

20шт.

37

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

241970A1

PACKAGE

SPACER KIT - dual wheel, 10 inch, order from Machinery Price List

1шт.

38

241972A1

SPACER

dual wheel, 10 inch

2шт.

39

426-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

BOLT - hex, 7/8 NC x 3 inch, grade 8

20шт.

40

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

A67939

COUPLING

SPACER KIT - dual wheel, 13 inch, order from Machinery Price List, no longer available, order components, Includes: Ref. 41, 42, 43

1шт.

41

1974405C1

SPACER

dual wheel, 13 inch

2шт.

42

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

20шт.

43

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

Выбрано товаров: 29
