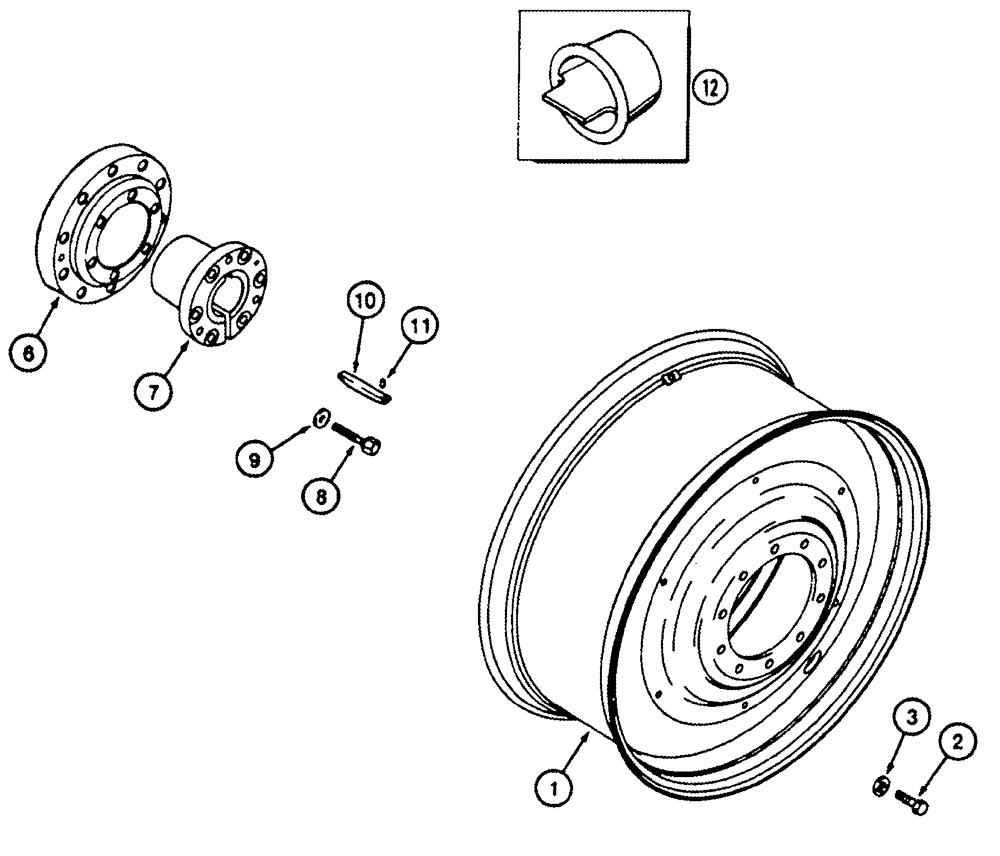

Запчасти Case IH 8940 (6-088) - SOLID STEEL REAR WHEELS, INNER WHEEL, P.I.N. JJA0083000 AND AFTER (06) - POWER TRAIN

1

222665A1

WHEEL

solid steel, W18A-38 (For 20.8-38 tire)

2шт.

1

221362A1

WHEEL

solid steel, W16A-42 (For 18.4-42 tire)

2шт.

1

193857A1

WHEEL

solid steel, W18A-42 (For 20.8-42 tire)

2шт.

1

276687A1

WHEEL

solid steel, MW20A-42 (For 620/70R-42 tire)

2шт.

2

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

Replaces 232974A2 bolt

20шт.

3

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

6

185605A2

HUB

axle, rear, 10 bolt

2шт.

7

223769A1

HUB

axle, rear, 102 mm (4 inch)

2шт.

8

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

Special

12шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

10

A63219

KEY

axle, 3/4 x 6 inch

2шт.

11

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

12

303401A1

PLUG

with center pull tab, 20 mm

3шт.
