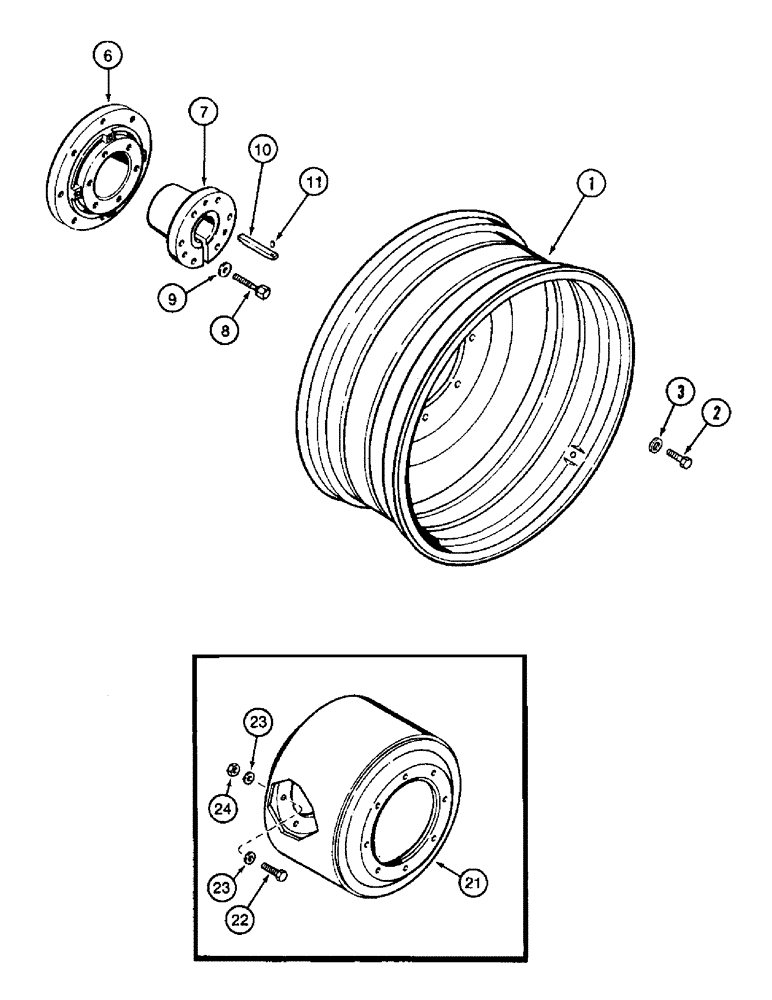

Запчасти Case IH 8940 (6-086) - STEEL REAR WHEELS, SINGLE OR DUAL, PRIOR TO P.I.N. JJA0083000 (06) - POWER TRAIN

1

1968161C1

RIM

WHEEL for 24.5-32 tire

2шт.

1

A145462

RIM

WHEEL for 30.3-32 tire

2шт.

1

102890A1

WHEEL

for 23.1-34 tire

2шт.

1

135570A1

WHEEL

low profile for 38 inch tire

2шт.

2

1348513C1

BOLT

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

3

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

16шт.

4

A20058

VALVE STEM

Not shown

2шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, order from Machinery Price List

2шт.

6

A145322

HUB

wheel

2шт.

7

1289233C1

HUB

BUSHING - wheel, 4 inch ID

2шт.

8

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch

12шт.

9

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

12шт.

10

A63219

KEY

axle, 3/4 x 6 inch

2шт.

11

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

A67430

PACKAGE

SPACER KIT - dual wheel, 16 inch, no longer available, order components

2шт.

21

A149059

BUSHING

SPACER - dual wheel, 8 bolt, 16 inch

2шт.

22

1348513C1

BOLT

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

23

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

32шт.

24

429-1012

NUT,3/4"-10, G8

hex, NC

16шт.
