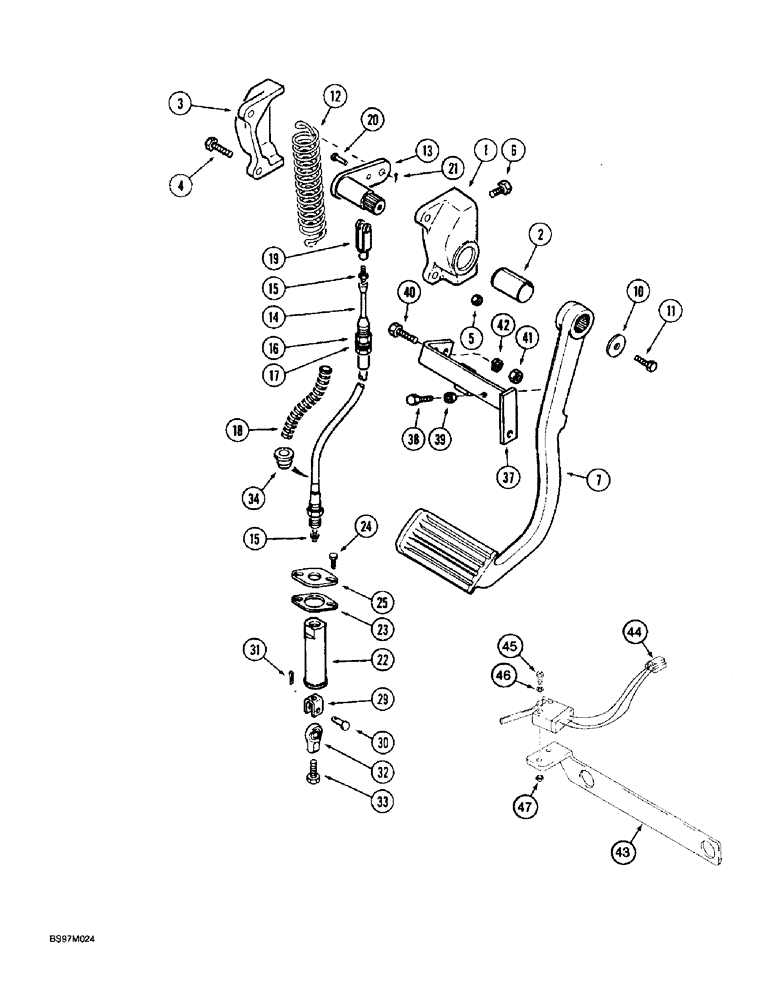

Запчасти Case IH 8940 (6-054) - INCHING PEDAL (06) - POWER TRAIN

1

120174C1

SUPPORT

ASSEMBLY - pivot, Includes: Ref. 2

1шт.

2

120173C1

BUSHING,30.28mm ID x 32.56mm OD x 47.37mm L

pivot

1шт.

3

1252700C1

SUPPORT ASSY.

pivot, pedal

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

425-166

NUT,3/8"-16, G5, Hvy

heavy hex, 3/8 inch NC, if used

2шт.

5

231-5146

FLANGE NUT,3/8"-16

If used

2шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

7

1340256C1

PEDAL

clutch

1шт.

10

495-81120

WASHER,.344" x 1 1/4" x .120"

flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

96897C2

SPRING

return

1шт.

13

1990549C1

ARM

lever, pedal

1шт.

14

96481C2

CABLE

clutch, includes item 34, Includes: Ref. 15, 16, 17

1шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

16

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

3шт.

17

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

18

118156C1

CONDUIT

SLEEVE - corrugated, cut 8 inches from 1536137C1 bulk insulation

1шт.

19

213-124

ADJUSTABLE CLEVIS,1/4"-28

1шт.

20

427-4077

CLEVIS PIN,1/4" x .770"

Hardened

1шт.

21

432-48

COTTER PIN,1/16" x 1/2"

1шт.

22

1340478C1

HOUSING

support, cable

1шт.

23

1280055C2

FLANGE

housing

1шт.

24

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

2шт.

25

97238C1

SPACER

flange, housing

1шт.

29

96790C2

CLEVIS COUPLING

cable

1шт.

30

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

clevis

1шт.

31

732-2012

COTTER PIN,M2 x 12

1шт.

32

97202C1

BALL JOINT

END -

1шт.

33

414-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - hex, 3/8 NF x 7/8 inch

1шт.

34

96989C2

GROMMET

included with item 14

1шт.

37

96934C3

BRACKET

stop, pedal

1шт.

38

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full Thd

1шт.

39

825-1408

NUT,M8, Cl 8

1шт.

40

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

41

825-1410

NUT,M10, Cl 8

2шт.

42

892-11010

LOCK WASHER,M10

3шт.

43

295056A1

SUPPORT

BRACKET - switch mounting (With manual shuttle shift)

1шт.

44

1343288C2

LIMIT SWITCH

manual shuttle shift

1шт.

45

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

w/ Manual shuttle shift

2шт.

46

495-31016

WASHER,#6

With manual shuttle shift

2шт.

47

225-14106

NUT,#6-32

With manual shuttle shift

2шт.
