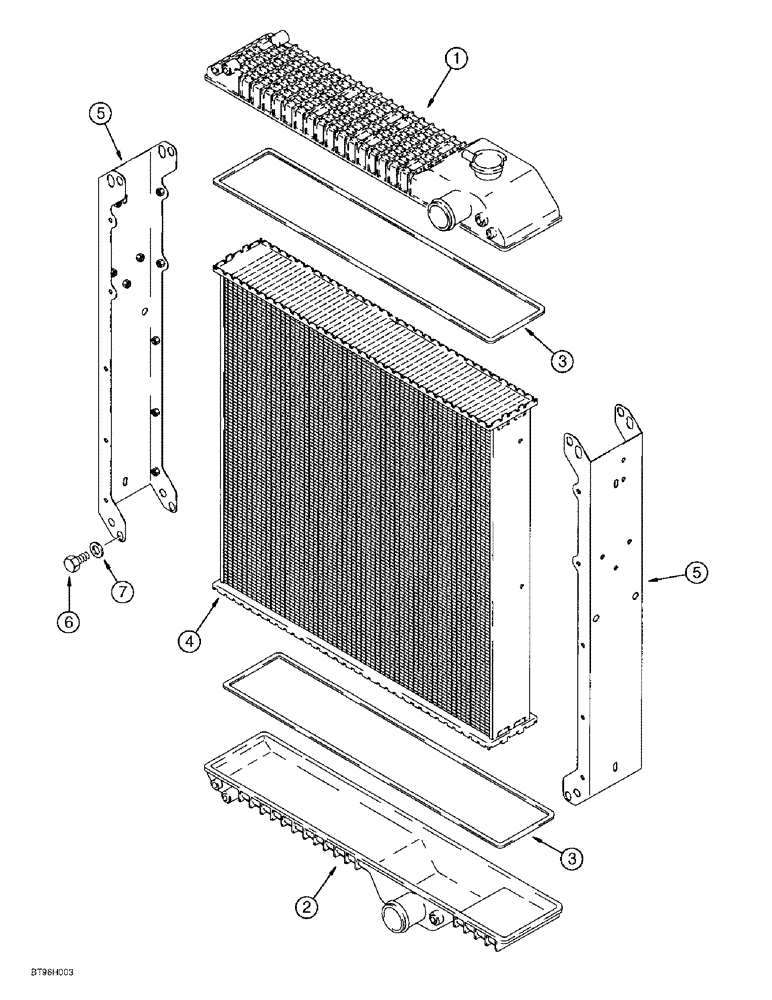

Запчасти Case IH 8940 (2-006) - RADIATOR ASSEMBLY (02) - ENGINE

140501A2

RADIATOR

ASSEMBLY - cooling system (8930)(Shown), Includes Refs 1,2,3,4,5,6,7

1шт.

131751A2

RADIATOR

ASSEMBLY - cooling system (8940), Includes Refs 1,2,3,4,5,6,7

1шт.

232545A1

RADIATOR

ASSEMBLY - cooling system (8950), Includes Refs 1,2,3,4,5,6,7

1шт.

1

243898A1

TANK

radiator, upper

1шт.

2

243895A1

RESERVOIR

TANK - radiator, lower

1шт.

3

227240A1

GASKET,3.3mm Thk

rubber seal

2шт.

4

NSS

NOT SOLD SEPARAT

CORE - radiator

1шт.

5

243899A1

SUPPORT

radiator

2шт.

6

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.
