Запчасти Case IH 8940 (6-040) - TRANSMISSION, RANGE INPUT SHAFT (06) - POWER TRAIN

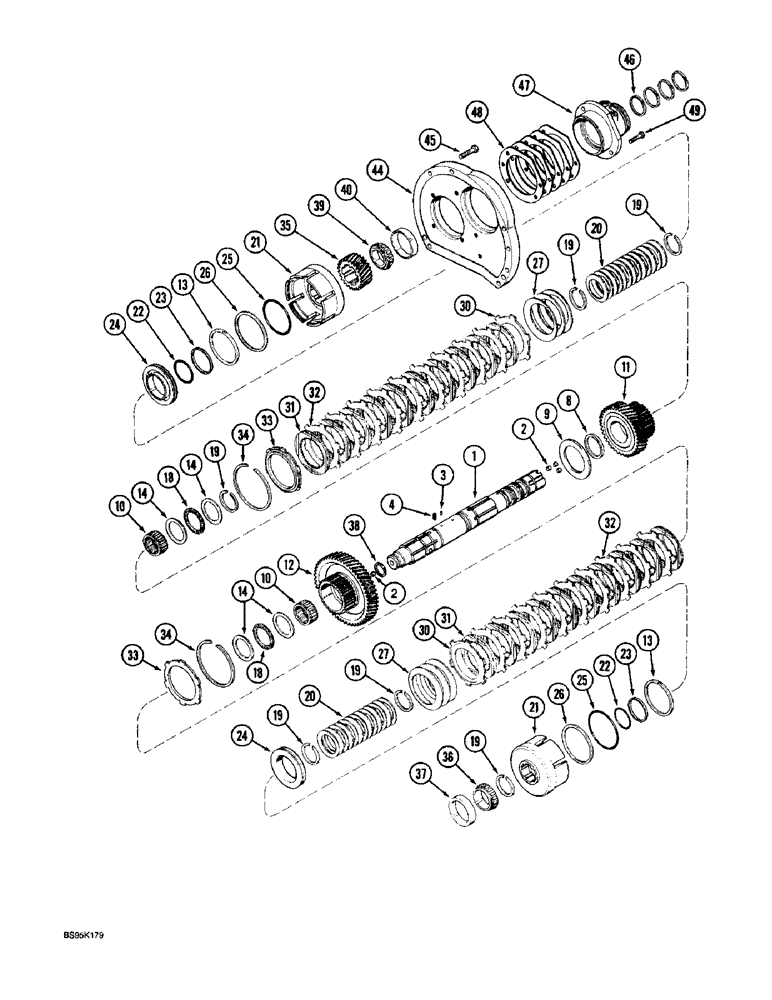

Схема запчастей Case IH 8940 - (6-040) - TRANSMISSION, RANGE INPUT SHAFT (06) - POWER TRAIN
49
44
27
26
18
19
21
27
30
12
14
11
30
32
24
33
21
36
48
19
10
26
10
19
14
19
40
31
31
22
13
13
1
23
25
45
2
37
18
39
2
47
19
34
23
38
20
4
46
33
14
25
20
32
8
35
19
24
9
3
34
22

Артикул

Название

Примечание

Количество

1

1997446C2

SHAFT ASSY.

input, Includes: Ref. 2, 3, 4

1шт.

2

187516A1

PLUG,Expansion, 12mm

expansion, replaces 1342852C1 plug

4шт.

3

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

4

1963874C1

PIN,7.94mm OD x 14mm L, Slotted

coiled, 8 x 14 mm

1шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

support

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

1шт.

10

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

needle, caged

2шт.

11

1285977C1

GEAR

GEAR - driver, medium

1шт.

12

1285979C1

PINION

GEAR - drive, 52 teeth, high range

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal, clutch

2шт.

14

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

18

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

needle

2шт.

19

93350C1

RING

retaining

6шт.

20

1286012C2

BELLEVILLE WASHER

Belleville spring

26шт.

21

1285972C2

CLUTCH HOUSING

CARRIER -

2шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

piston, low clutch inner

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch, shift

2шт.

24

1285998C1

PISTON

clutch, shift

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

piston, low clutch outer

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

2шт.

27

93129C1

BELLEVILLE WASHER

Belleville spring

6шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

20шт.

32

92934C2

DISC

separator

18шт.

33

1342854C2

DISC

backing, 16.5 mm (21/32 inch) thick, if used

2шт.

33

1342645C3

CLUTCH DISC

CLUTCH DISK backing, powder metal, 9.7 mm (3/8 inch) thick, if used

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

retaining

2шт.

35

1285971C1

DRIVING GEAR

GEAR - driver, 22 teeth, low range

1шт.

36

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

tapered roller

1шт.

37

A75210

BEARING CUP,3.5433" OD x 0.9055"

tapered roller

1шт.

38

116797C2

RING

seal

1шт.

39

ST2063

ROLLER BEARING,2.2505" ID x 4.4385" OD x 1.2015"

tapered roller

1шт.

40

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

tapered roller

1шт.

44

281696A1

SUPPORT

bearing, replaces 1285995C2 support

1шт.

45

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

6шт.

46

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

sealing

4шт.

47

1342729C1

BEARING HOUSING

bearing

1шт.

48

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

Bearing

1шт.

48

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

Bearing

1шт.

48

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

Bearing

1шт.

48

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

Bearing

1шт.

48

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

Bearing

1шт.

49

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm

3шт.

Выбрано товаров: 43
