(5-040) - FRONT WHEELS, TWO WHEEL DRIVE TRACTOR

Запчасти Case IH 8940 (5-040) - FRONT WHEELS, TWO WHEEL DRIVE TRACTOR (05) - STEERING

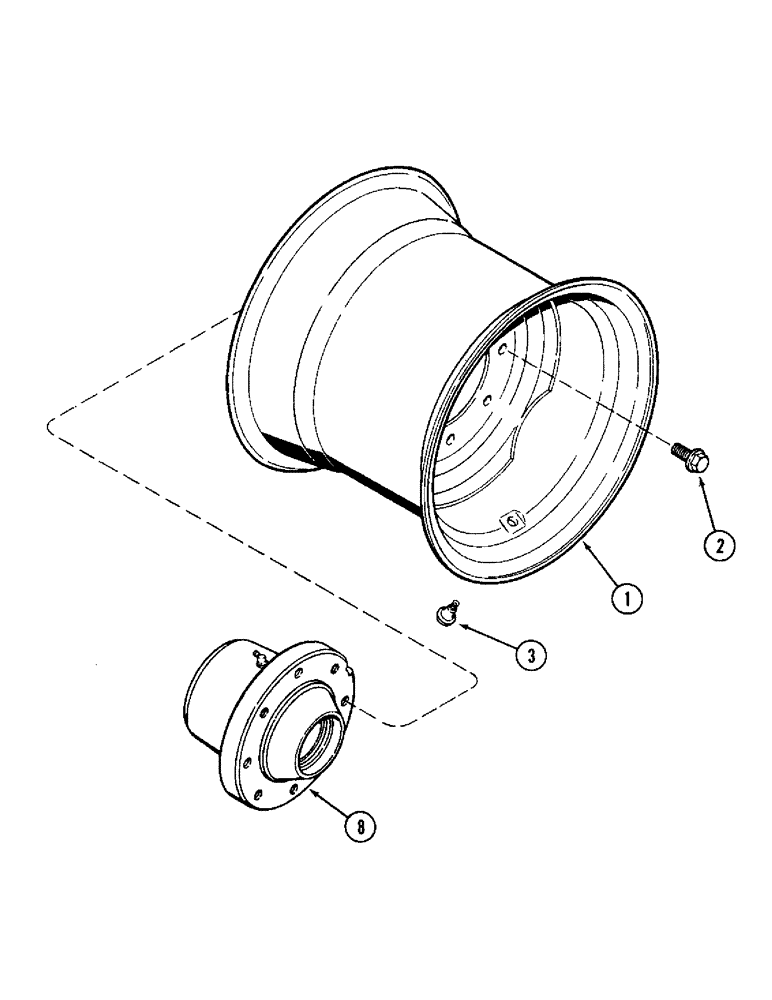

Схема запчастей Case IH 8940 - (5-040) - FRONT WHEELS, TWO WHEEL DRIVE TRACTOR (05) - STEERING
2
8
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1270629C1

RIM

WHEEL front, W11L x 16.1, for 14L x 16.1 tire

2шт.

1

1270628C1

RIM

front, W14L x 16.1, for 16.5L x 16.1 tire

2шт.

2

1342033C1

BOLT

BOLT - hex flange special

16шт.

3

A38261

VALVE

stem, tire inflation

2шт.

8

1259528C1

HUB

ASSEMBLY - wheel, front, see Figure 5-22

2шт.
