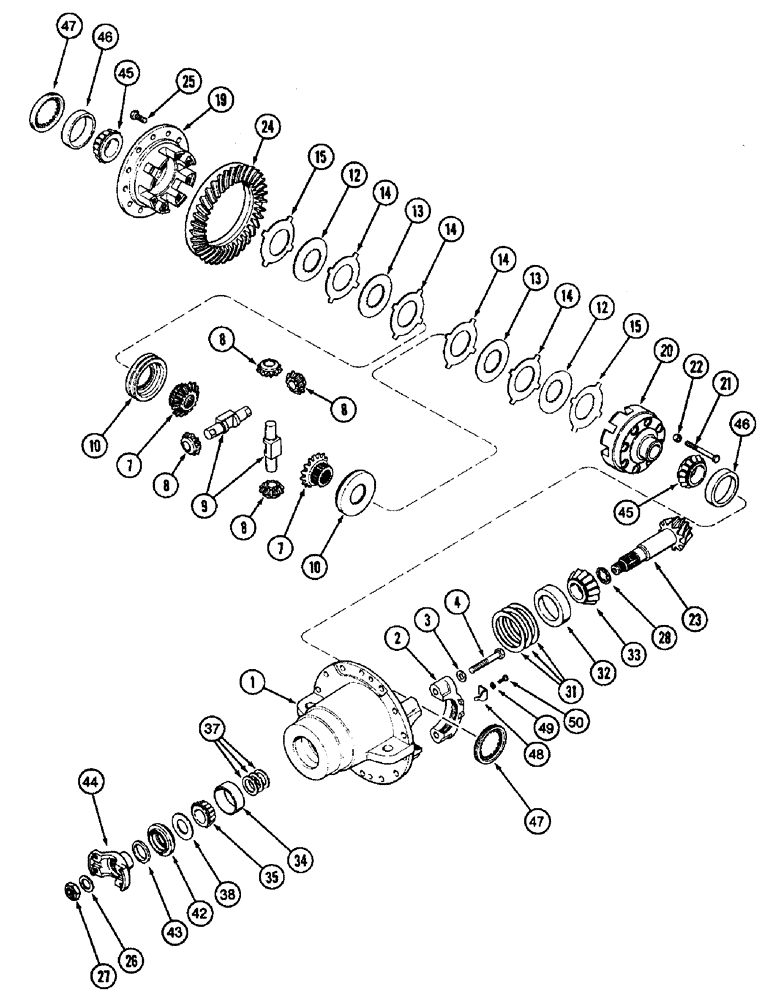

Запчасти Case IH 8940 (5-032) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING

243305A2

AXLE, FRONT

ASSEMBLY - 30 kph, 4:10 ratio, see Figures 5-28 - 5-38 (If used)

1шт.

243305A2R

REMAN-AXLE, MFD

Remanfactured - Axle - 8930/40/50 Prod. 11/96 Starting SN JJA0072001 30 KPH

1шт.

243305A2C

CORE-AXLE, MFD

Return Part Number

1шт.

243304A2

AXLE

ASSEMBLY - front, 40 kph, 3:73 ratio, see Figures 5-28 - 5-38 (If used), Includes: Ref. 1-35 and carrier Assy

1шт.

243304A2R

REMAN-AXLE, MFD

Reman - Axle - 7230/40/50 Production 2/97 & 8930/40/50 11/96 Starting SN JJA0072001 40 KPH

1шт.

243304A2C

CORE-AXLE, MFD

Return Part Number

1шт.

231012A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 30 kph, 4:10 ratio (Axle assembly 243302A1)

1шт.

247613A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 40 kph, 3:73 ratio (Axle assembly 243301A1), Includes: Ref. 1-22 and Carrier Assy

1шт.

231013A1

HOUSING

CARRIER ASSEMBLY - differential, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing, differential

2шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

1277225C2

DIFFERENTIAL

ASSEMBLY - front axle, Includes: Ref. 7 - 22 and Kit

1шт.

1277402C1

KIT

differential, gear, Includes: Ref. 7 - 15 and Kit

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

4шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - differential

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

2шт.

1968294C1

KIT

disc and plate, differential, Includes: Ref. 12 - 15

1шт.

Kit # 1968294C1 has 10 pieces, per print there is 2 of item # 15 in kit.

1шт.

12

NSS

NOT SOLD SEPARAT

DISC - dished

2шт.

13

NSS

NOT SOLD SEPARAT

DISC - flat

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - flat

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE - dished

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gear half, differential

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - half, differential

1шт.

21

1997853C1

BOLT

BOLT - special, differential case

8шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - bolt

8шт.

1968293C1

BEVEL GEAR

GEAR SET - ring and pinion, differential, 4.10 ratio (Axle assembly 243302A1), Includes: Ref. 23, 24

1шт.

128864A1

GEAR-SET

ring and pinion, differential, 3.73 ratio (Axle assembly 243301A1), Includes: Ref. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - ring, front differential

1шт.

25

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - hex head

12шт.

26

H224501

WASHER

flat, special, 7/8 inch

1шт.

27

232-46114

LOCK NUT,7/8"-14, GC

1шт.

28

251189A1

SPACER

pinion gear

1шт.

1277229C1

PACKAGE

KIT - shim, pinion adjusting, Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.003 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.005 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.010 inch

5шт.

32

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

tapered roller

1шт.

33

1968296C1

TAPERED BEARING

tapered roller

1шт.

34

1968289C1

BEARING ASSY

tapered roller

1шт.

35

1968288C1

BEARING ASSY

tapered roller

1шт.

243305A2

AXLE, FRONT

ASSEMBLY - 30 kph, 4:10 ratio, see Figures 5-28 - 5-38 (If used)

1шт.

243304A2

AXLE

ASSEMBLY - front, 40 kph, 3:73 ratio, see Figures 5-28 - 5-38 (If used), Includes: Ref. 37-50 and Carrier Asy

1шт.

231012A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 30 kph, 4:10 ratio (Axle assembly 243302A1)

1шт.

247613A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 40 kph, 3:73 ratio (Axle assembly 243301A1), Includes: Ref. 37-50 and Kit

1шт.

37

1961745C1

KIT

shim, pinion adjustment, Includes: Shims Listed Below, Includes: Shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.003 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.005 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.010 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.030 inch

5шт.

38

912712R1

WASHER

pinion oil seal

1шт.

42

H758326

OIL SEAL

oil, pinion shaft

1шт.

43

345427C1

SLINGER

RING - dust shield

1шт.

44

1961747C1

YOKE

UNIVERSAL JOINT YOKE pinion shaft

1шт.

45

1968291C1

ROLLER BEARING

CONE - tapered roller, differential mounting

2шт.

46

1968292C1

BEARING

CUP - tapered roller, 4-1/8 inch OD, differential mounting

2шт.

47

1277233C1

RING NUT,14T

differential bearing adjust

2шт.

48

1277234C1

CLIP

bearing adjusting ring

2шт.

49

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

50

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.
