Запчасти Case IH 8940 (5-030) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING

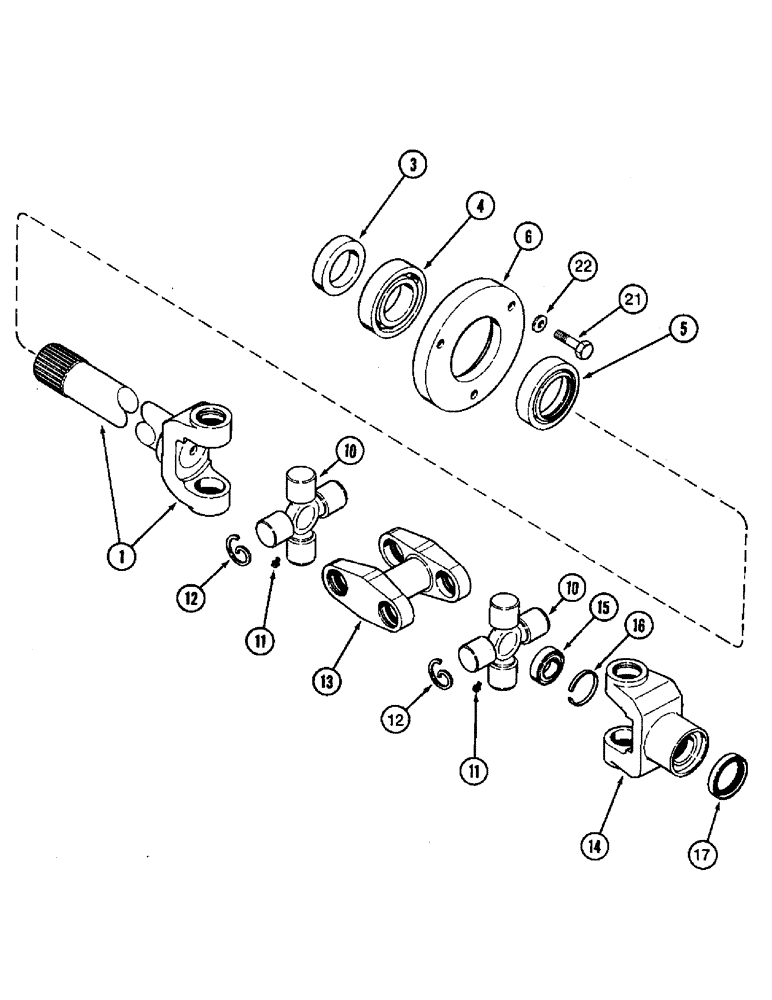

Схема запчастей Case IH 8940 - (5-030) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING
13
14
15
4
12
22
10
1
21
16
11
5
6
3
17
10
11
12

Артикул

Название

Примечание

Количество

243305A2

AXLE, FRONT

ASSEMBLY - 30 kph, 4:10 ratio, see Figures 5-28 - 5-38 (If used)

1шт.

243305A2R

REMAN-AXLE, MFD

Remanufactured - Axle - 8930/40/50 Prod. 11/96 Starting SN JJA0072001 30 KPH

1шт.

243305A2C

CORE-AXLE, MFD

Return Part Number

1шт.

243304A2

AXLE

ASSEMBLY - front, 40 kph, 3:73 ratio, see Figure 5-28 - 5-38 (If used), Includes: Ref. 1-22

1шт.

243304A2R

REMAN-AXLE, MFD

Reman - Axle - 7230/40/50 Production 2/97 & 8930/40/50 11/96 Starting SN JJA0072001 40 KPH

1шт.

243304A2C

CORE-AXLE, MFD

Return Part Number

1шт.

1

250732A1

YOKE

UNIVERSAL JOINT YOKE SHAFT ASSEMBLY - axle, left, includes items 1-5

1шт.

1

250733A1

YOKE

UNIVERSAL JOINT YOKE SHAFT ASSEMBLY - axle, right (Shown), Includes: Ref. 3, 4, 5 and Kit

1шт.

1277253C1

PACKAGE

KIT - bearing and seal, axle

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

5

A76014

OIL SEAL

oil

1шт.

6

247297A1

RETAINER

axle

1шт.

10

247298A1

BEARING ASSY

cross, bearing, Includes: Ref. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

13

231020A2

YOKE

UNIVERSAL JOINT YOKE YOKE - center, front axle

2шт.

14

231021A2

YOKE

UNIVERSAL JOINT YOKE YOKE ASSEMBLY - outer, front axle, Includes: Ref. 15, 16, 17

2шт.

15

1961753C1

SEAL

yoke, inner

1шт.

16

1277405C1

RING

retaining

1шт.

17

1287608C1

SEAL

yoke, outer

1шт.

21

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

6шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

6шт.

Выбрано товаров: 23
