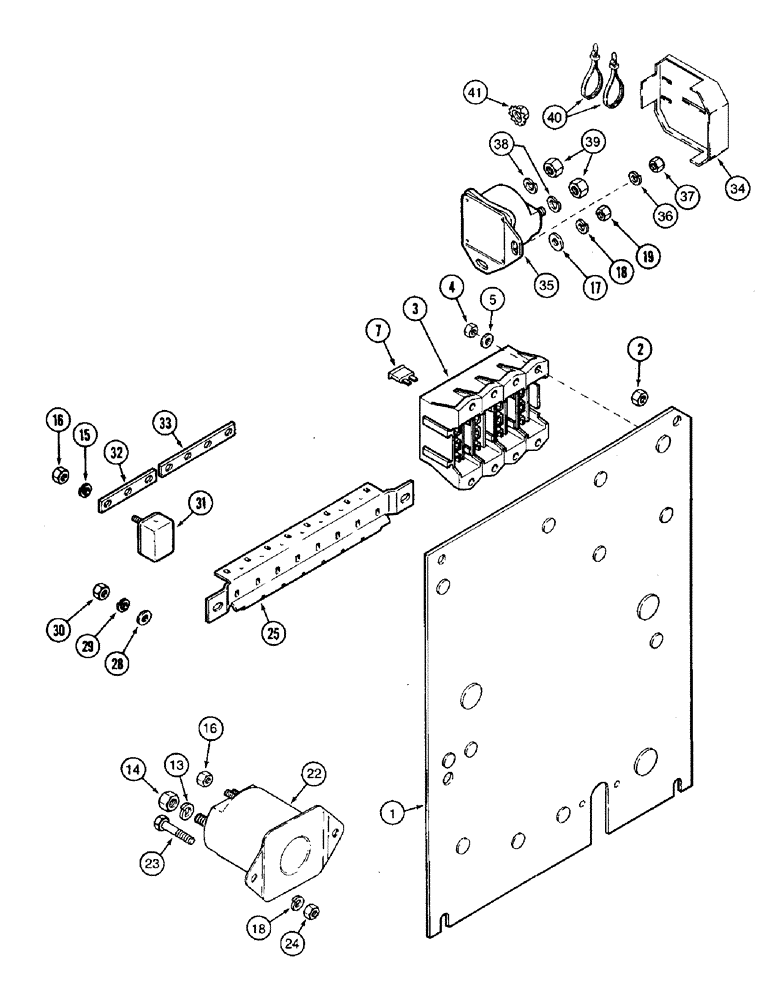

Запчасти Case IH 8930 (4-024) - FUSES, SOLENOIDS AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
1964622C3
PLATE ASSY.
mounting
1шт.
2
825-1406
NUT,M6, Cl 8
7шт.
3
245435C1
FUSE HOLDER
BLOCK ASSEMBLY - fuse
1шт.
4
225-14110
NUT,#10-24
4шт.
5
495-31022
WASHER,#10
5шт.
7
A149798
FUSE
tan, 5 ampere
1шт.
7
A149799
FUSE
brown, 7-1/2 ampere
1шт.
7
A149800
FUSE,10 Amp
red, 10 ampere
1шт.
7
A149801
FUSE,Lt Blue, 15 Amp
light blue, 15 ampere
1шт.
7
A149802
FUSE
yellow, 20 ampere
1шт.
14
425-105
NUT,5/16"-18, G5
1шт.
15
492-11010
LOCK WASHER,#10
1шт.
16
193-1000
NUT,Keps, w/LW,#10-32
hex, with external tooth lock washer, No. 10 NF
1шт.
17
896-11006
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
2шт.
18
892-11006
LOCK WASHER,M6
1шт.
19
825-1406
NUT,M6, Cl 8
2шт.
22
107655C1
SOLENOID SWITCH
SWITCH - magnetic, cab solenoid, power
1шт.
23
614-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
2шт.
24
829-1306
NUT,M6, Cl 10
2шт.
25
91954C1
SUPPORT
BRACKET - mounting, circuit breaker
1шт.
28
495-11028
WASHER,1/4", SAE
(9/32 x 5/8 x 1/16")
2шт.
29
492-11025
LOCK WASHER,1/4"
2шт.
30
425-104
NUT,1/4"-20, Cl 5
2шт.
31
245761C1
CIRCUIT-BREAKER
10 ampere
1шт.
31
245762C1
CIRCUIT-BREAKER,15A
15 ampere
1шт.
31
245763C1
CIRCUIT-BREAKER,20A
20 ampere
2шт.
31
245765C1
CIRCUIT-BREAKER,30A
30 ampere
4шт.
32
245861C1
BAR
breaker bus
1шт.
33
245862C1
BAR
buss, 4 hole
1шт.
178149A1
SOLENOID SWITCH
KIT - with barrier and cover, Includes: Ref. 34-40
1шт.
34
178148A1
COVER
solenoid switch
1шт.
35
183038A1
SOLENOID
with cover, ignition
1шт.
36
492-11010
LOCK WASHER,#10
1шт.
39
425-105
NUT,5/16"-18, G5
If used, may be replaced by item 41
2шт.
40
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch
2шт.
41
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
Replaces lock washer and nut, items 38 and 39, used on some models
2шт.
Выбрано товаров: 39
