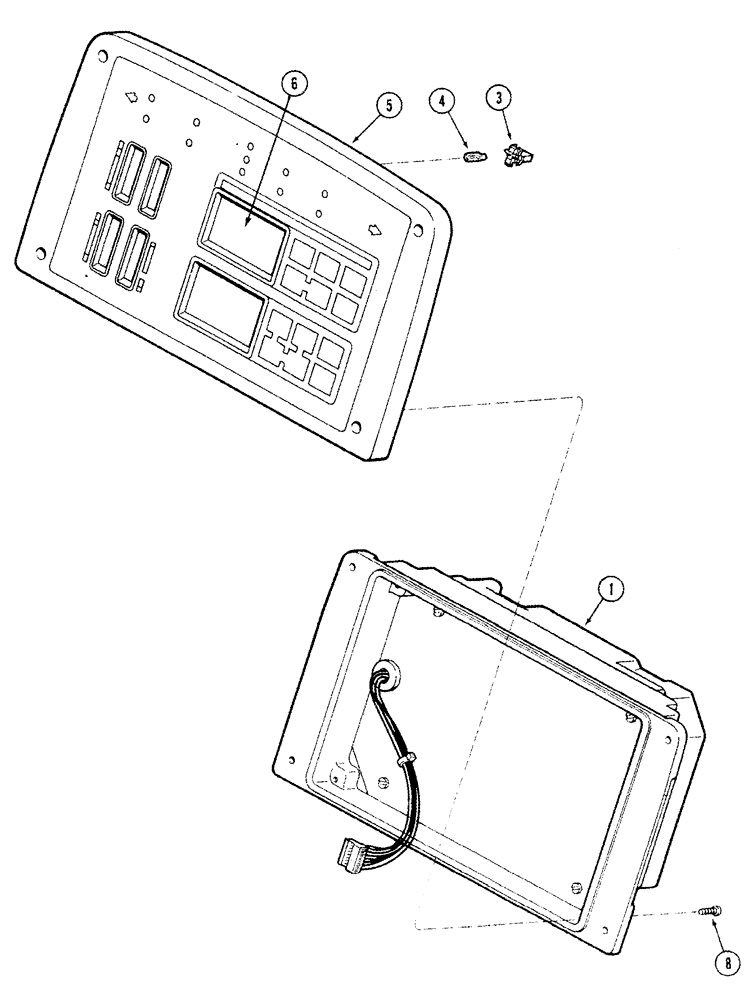

Запчасти Case IH 8930 (4-022) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1964859C6

CLUSTER

ASSEMBLY - instrument, new, Includes: Ref. 1-6

1шт.

1964859C6R

REMAN-INSTR CLUSTER

Reman-Instrument Cluster Assembly - Component Parts Shown on this Figure do not Apply to the Remanufactured Assembly.

1шт.

1964859C6C

CORE-MONITOR

Return Part Number - Cluster, use this Part Number to Return Instrument Cluster Core for Credit when using a Remanufactured Assembly

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - cluster

1шт.

3

A48889

LAMP SOCKET

SOCKET - bulb

1шт.

4

A48888

BULB

BULB - lamp, instrument

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - face, instrument cluster

1шт.

6

NSS

NOT SOLD SEPARAT

TACHOMETER - digital

1шт.

8

1971376C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan Phillips, No. 10-16 x 1 inch

4шт.
