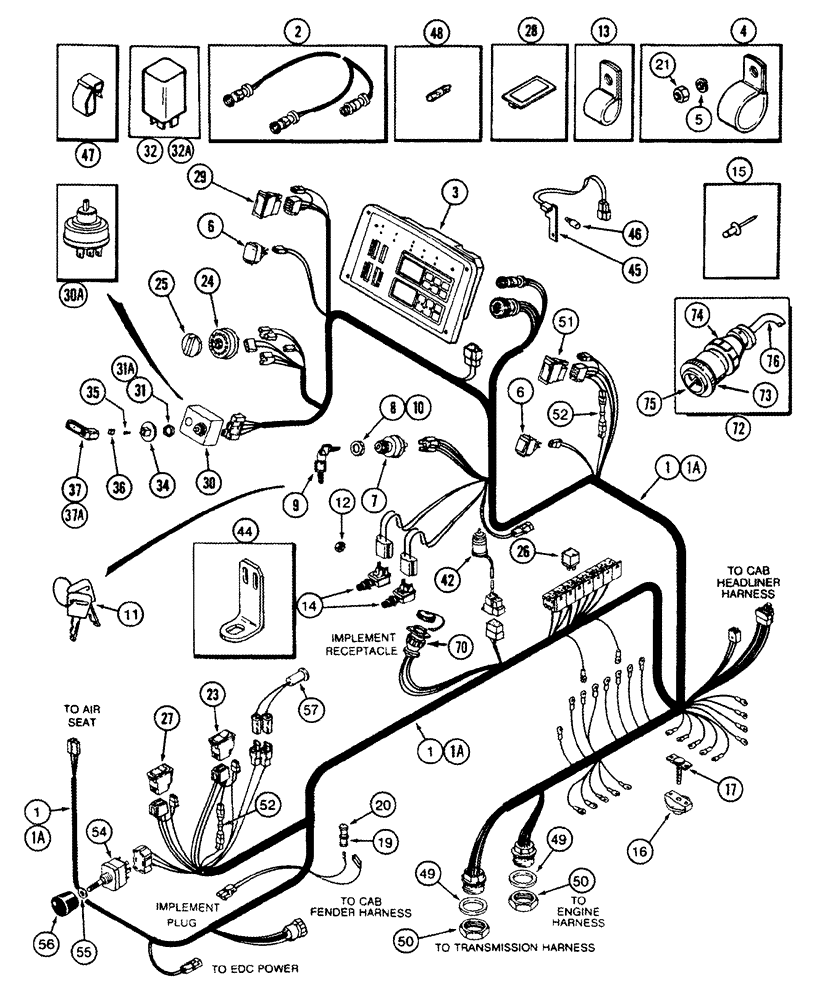

Запчасти Case IH 8930 (4-002) - LOWER CAB HARNESS, WITHOUT HITCH (04) - ELECTRICAL SYSTEMS

1

189571A2

HARNESS

cab, lower, prior to serial number JJA0090823

1шт.

1a

309113A1

HARNESS

cab, lower, serial number JJA0090823 and after

1шт.

2

A177090

HARNESS

monitor, implement

1шт.

3

1964859C6

CLUSTER

ASSEMBLY - instrument, new, parts list Figure 4-22

1шт.

3

1964859C6R

REMAN-INSTR CLUSTER

Reman-Instrument Cluster

1шт.

3

1964859C6C

CORE-MONITOR

Return Part Number, Instrument Cluster

1шт.

4

92385C1

CLIP

retaining

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

92365C1

SWITCH

horn and ether start

2шт.

7

282775A1

IGNITION SWITCH

ASSEMBLY - includes keys, includes padded keys item 11

1шт.

7

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - iginition, includes keys, Includes: Ref. 8, 9

1шт.

8

A77314

NUT

hex, special

1шт.

9

A77313

SET OF 2 KEYS

metal without padding

1шт.

10

1964785C1

NUT

mounting, ignition switch

1шт.

11

1964831C2

IGNITION KEY

padded, included with switch assembly 282775A1, if used

1шт.

12

122860A1

NUT

switch

1шт.

13

92385C1

CLIP

retaining, harness

1шт.

14

123014A1

SWITCH

brake, differential lock

2шт.

15

151-535

RIVET,Pop, 1/8" x .462"

Break mandrel, to mount three pin connector

4шт.

16

468647C2

BLOCK ASSY.

junction, parts list Figure 4-26

1шт.

17

1964561C1

BAR

junction block buss, parts list Figure 4-26

1шт.

19

1964773C1

CIGAR LIGHTER

ASSEMBLY - 12 volt, Includes: Ref. 20

1шт.

20

A177447

LIGHTER, CIGARETTE

ELEMENT - pop-out unit, small knob

1шт.

21

425-166

NUT,3/8"-16, G5, Hvy

heavy hex, 3/8 inch NC

3шт.

23

92346C1

SWITCH

differential lock, Includes: Switch, Socket, Bulb, and Lens

1шт.

91956C1

SWITCH ASSY

rocker, Includes: Socket and Bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, Includes: Bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

2 watt

1шт.

83884C1

SYMBOLS

SYMBOL LENS - green, decal, snap-in

1шт.

24

91921C1

SWITCH

lighting

1шт.

25

97107C3

BUTTON

KNOB - light switch

1шт.

26

1983394C2

RELAY

mini, 12 volt

1шт.

27

129130A1

SWITCH

MFD, Includes: Switch, Socket, Bulb, and Lens

1шт.

NSS

NOT SOLD SEPARAT

SWITCH - rocker, Includes: Socket and Bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, Includes: Bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

2 watt

1шт.

83884C1

SYMBOLS

SYMBOL LENS - green, decal, snap-in

1шт.

28

245918C1

LENS

PLUG - rectangular, blanking, if used

1шт.

29

92344C1

SWITCH

ASSEMBLY - high/low, Includes: Switch, Bulb, Socket, and Decal

1шт.

91855C1

SWITCH

rocker, Includes: Bulb and Socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

91856C1

SYMBOLS

SYMBOL DECAL - blue, lens, snap-in, high beam

1шт.

30

1987422C1

SWITCH

and flasher, prior to serial number JJA0090823

1шт.

30a

310652A1

FLASHER SWITCH

turn signal flasher, serial number JJA0090823 and after

1шт.

31

131-428

LOCK NUT,PAL, 3/4"-20

hex, self-locking, 3/4-20 inch, used with 1987422c1 switch

1шт.

31a

A20467

NUT

hex, used with 310652A1 switch

1шт.

32

92389C2

FLASHER UNIT

hazard, effective serial number JJA0090823 through JJA0090943

1шт.

32a

309001A1

FLASHER UNIT,12V

turn signal, heavy duty, serial number JJA0090944 and after

1шт.

33

780-34395

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 9.5

S/N JJA0090944 and after, Not shown

1шт.

34

97102C1

ADAPTER

lever, turn signal

1шт.

35

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

machine, pan head Phillips, No. 5 NC x 3/8 inch

1шт.

36

1329896C1

CLASP

CLIP - retaining, lever

1шт.

37

97103C3

LEVER

turn signal, prior to serial number JJA0090823

1шт.

37a

310654A1

LEVER

turn signal, serial number JJA0090823 and after

1шт.

42

92043C3

SWITCH

drive, creeper

1шт.

44

96890C2

BRACKET

creeper switch

1шт.

45

1983363C2

LAMP

LIGHT ASSEMBLY - cluster, Includes: Ref. 46

1шт.

46

F64363

BULB

lamp

1шт.

47

104389C1

CLIP

retaining, light

1шт.

48

3141107R1

BULB,W5/1.2, 12V, 1.2W

2 watt

4шт.

49

459330C1

LOCK WASHER

lock, No. 24

2шт.

50

459329C1

NUT

hex, No. 24

2шт.

51

137430A1

SWITCH

ASSEMBLY - override shutdown, Includes: switch, Socket, Bulb and Decal

1шт.

91855C1

SWITCH

rocker, Includes: Socket and Bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, Includes: Bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

2 watt

1шт.

137428A1

SYMBOLS

SYMBOL DECAL - red, lens, snap-in

1шт.

52

113699A1

RECTIFIER

locking, 2-5/8 inch long

2шт.

54

189574A2

TOGGLE SWITCH

toggle, PTO

1шт.

55

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

1шт.

56

223565A1

BALL KNOB

control, PTO switch

1шт.

57

183696A1

INDICATOR

LAMP - green, PTO

1шт.

70

225164C1

ELEC CONNECTOR

electrical, type GH, implement receptacle, female

1шт.

71

225168C1

TERMINAL CONNECTOR,Female, 2 - 3 mm2

electrical, female, 14-16 ga., type THI, not shown

3шт.

72

187103A1

ELEC CONNECTOR

auxiliary power, assembly, INCLUDES REFS 73-76

1шт.

73

225165C1

ELEC CONNECTOR

electrical, type GQ, male, see item 77 for female connector

1шт.

74

225153C1

CONTACT HOUSING

CONNECTOR - electrical, type GX, strain relief clamp

1шт.

75

225166C1

ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm

electrical, male blade, 14-16 ga., type TJ1, not shown

3шт.

76

NSS

NOT SOLD SEPARAT

CABLE - electrical, 14 guage, 3 strand, 450 mm (17-3/4 inch) long

1шт.

77

245485C1

ELEC CONNECTOR,Male, 3 Pin

receptacle, type DK, female, implement plug auxiliary power source, not shown

1шт.

78

225119C1

TERMINAL

TERMINAL - wire, type T1, 14 - 16 ga., used with 245485C1 connector, not shown

1шт.
