Запчасти Case IH 8930 (3-002) - FUEL INJECTION SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, 8930 TRACTOR ONLY (03) - FUEL SYSTEM

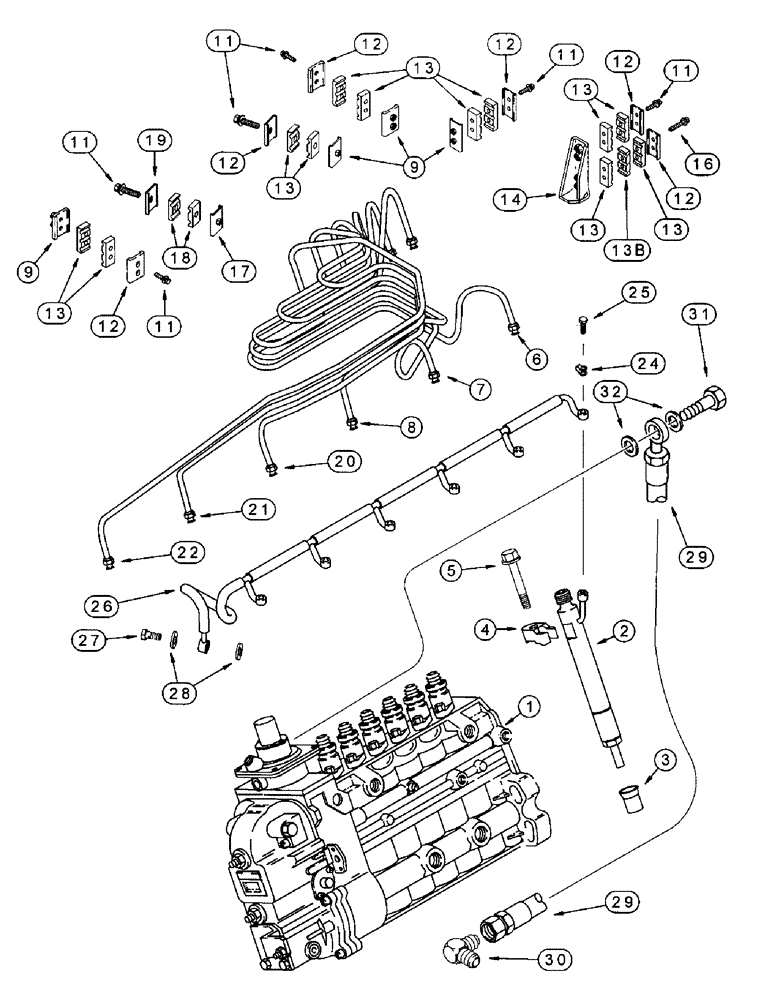

Схема запчастей Case IH 8930 - (3-002) - FUEL INJECTION SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, 8930 TRACTOR ONLY (03) - FUEL SYSTEM
5
13
13
24
13
29
29
11
12
4
13b
26
22
20
9
27
11
12
31
12
25
13
13
3
12
21
16
9
19
2
12
7
18
11
28
17
11
11
8
13
14
30
12
32
1
6

Артикул

Название

Примечание

Количество

1

J926882

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, with aneroid, parts list Figure 3-18

1шт.

1

JR926882

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC926882

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

2

J930525

INJECTOR ASSY.

fuel, parts list Figure 3-24

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, replaces J922018 bolt

6шт.

6

J930442

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J930443

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

7

J930356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 2 cylinder, For 6TA-830 After Cooled Engine.

1шт.

8

J930444

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

1шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

5шт.

12

J904519

SUPPORT

tube retaining

3шт.

13

J917747

CLAMP

fuel tube

6шт.

13b

J917748

CLAMP

fuel tube

1шт.

14

J917776

BRACE

BRACE - fuel tube

2шт.

16

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET - fuel tube

1шт.

18

J917746

CLAMP

fuel tube

2шт.

19

CURJ904711

CLAMP

BRACKET - fuel tube

1шт.

20

J931356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

This Injection Line is for a Non After Cooled Engine.

1шт.

20

J930358

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

This Injection Line is for a 6TA-830 After Cooled Engine.

1шт.

21

J930446

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J930447

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.

29

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump

1шт.

30

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

31

J918002

BANJO BOLT

banjo, hose to injection pump

1шт.

32

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.

Выбрано товаров: 36
