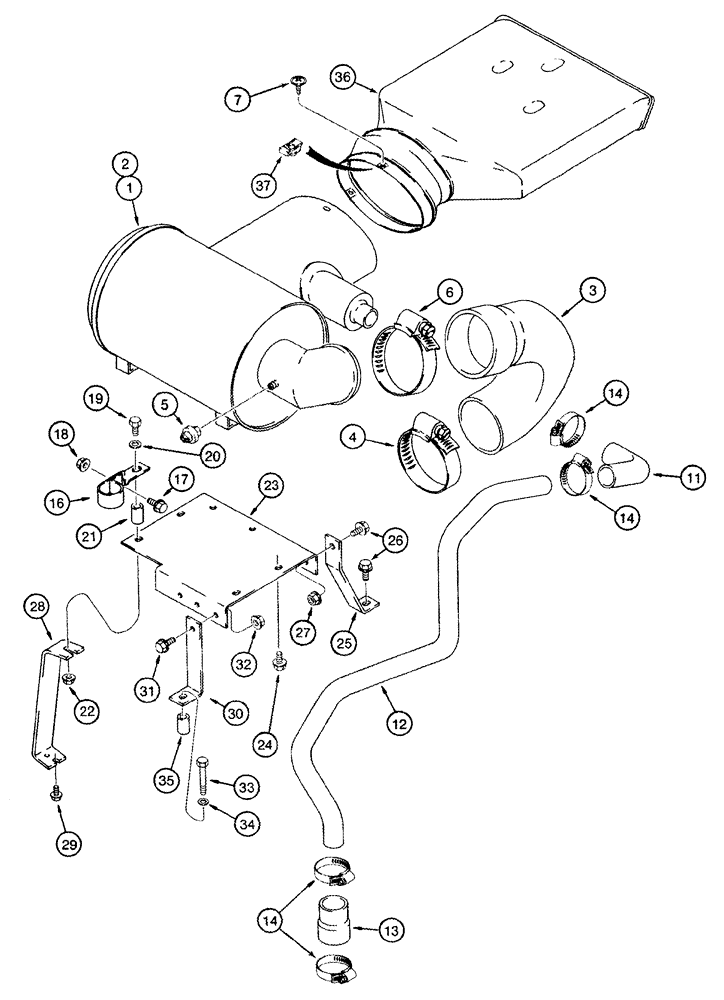

Запчасти Case IH 8930 (2-012) - AIR INDUCTION SYSTEM, WITHOUT DEAERATION SYSTEM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
113077A1
AIR CLEANER
Assembly, W/ Precleaner, Includes: Ref. 2, See Figure 2-14
1шт.
2
NSS
NOT SOLD SEPARAT
PRECLEANER - engine, included with air cleaner assembly
1шт.
3
1289073C3
LARGE HOSE
HOSE,LARGE air, Serial Range: cleaner-turbocharger
1шт.
4
214-3280
HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner
1шт.
5
P6137737
INDICATOR
SWITCH - restriction, air cleaner, replaces 1983640C1 switch
1шт.
6
214-3288
HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner
adj, 4-3/4 - 5-5/8 inch dia.
1шт.
7
1975782C1
SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"
Precleaner to air duct
3шт.
11
1998851C1
HOSE
90 degree, aspirator
1шт.
12
121746A1
TUBE
TUBE - aspirator
1шт.
13
1998858C1
HOSE
aspirator
1шт.
14
214-1428
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
4шт.
16
1334309C2
COLLAR CLAMP
aspirator tube, mounts to turbo shield
1шт.
17
905-10025
BOLT,Hex Flg, M10 x 25mm
1шт.
18
829-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 10
1шт.
19
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
1шт.
21
A176570
SPACER
clamp
1шт.
22
829-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 10
1шт.
23
1348516C3
SUPPORT
BRACKET - plate, air cleaner
1шт.
24
905-10020
BOLT,Hex Flg, M10 x 20mm
3шт.
25
1348518C1
SUPPORT
BRACKET - air cleaner, mounts to cylinder head
1шт.
26
905-10025
BOLT,Hex Flg, M10 x 25mm
2шт.
27
829-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 10
1шт.
28
1340702C1
SUPPORT
air cleaner
1шт.
29
905-8012
BOLT,Hex Flg, M8 x 12mm
1шт.
30
1348517C1
SUPPORT
BRACKET - air cleaner mounting, mounts to cylinder head
1шт.
31
905-10025
BOLT,Hex Flg, M10 x 25mm
1шт.
32
829-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 10
1шт.
33
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
1шт.
35
A176570
SPACER
clamp
1шт.
36
142742A1
DUCT
air intake
1шт.
37
96900C1
SPRING NUT,U, #10-16, Panel type
3шт.
20
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
1шт.
34
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
1шт.
Выбрано товаров: 33
