Запчасти Case IH 8930 (7-010) - HYDRAULIC TRAILER BRAKE, IF EQUIPPED (07) - BRAKES

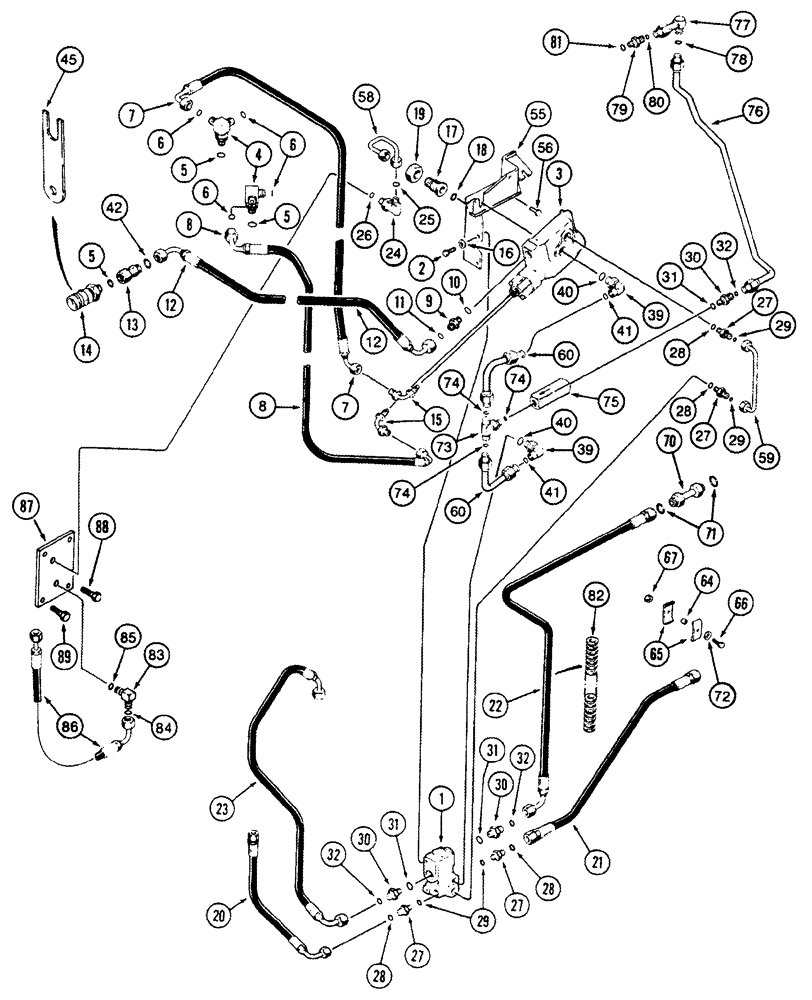

Схема запчастей Case IH 8930 - (7-010) - HYDRAULIC TRAILER BRAKE, IF EQUIPPED (07) - BRAKES
28
58
45
14
25
71
72
60
30
7
32
60
28
42
6
85
70
80
66
10
12
20
7
78
21
22
56
55
6
74
31
3
77
41
32
73
5
29
13
88
27
27
18
59
65
27
41
39
8
19
9
5
8
81
83
86
6
1
74
16
28
4
40
11
30
84
74
15
75
2
82
23
40
29
28
32
30
27
5
24
76
12
17
31
31
64
89
26
39
87
79
67
29

Артикул

Название

Примечание

Количество

1

1533774C2

HYDRAULIC VALVE

ASSEMBLY - priority, Includes: Kit

1шт.

1986932C1

PACKAGE

KIT - seal repair, trailer brake priority valve

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

3

1343653C2

VALVE

trailer brake, Includes: Kit

1шт.

1986883C1

SEAL KIT

seal repair, trailer brake valve

1шт.

4

1975204C1

FITTING,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

special tee, INCLUDES REFS 5, 6

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

1955121C1

HOSE ASSY.

1346 mm (53 inch) long, trailer brake, left-hand

1шт.

8

1955122C2

HOSE

737 mm (29-1/64 inch) long, trailer brake, right-hand

1шт.

9

1975213C2

ADAPTER

trailer brake coupler, Includes: Ref. 10, 11

1шт.

10

1328179C1

O-RING,15.4mm ID x 2.1mm Width

15.4 ID x 2.1 mm

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

103774A2

HOSE

1156 mm (45-1/2 inch) long, coupler

1шт.

13

1975266C1

HYD TUBE,12 mm OD

TUBE - coupler adapter

1шт.

14

3131463R91

QUICK MALE COUPLING

trailer brake

1шт.

15

1975290C1

HYD TUBE,0.312" OD

TUBE - brake supply

2шт.

17

1975206C1

FITTING

adapter return, Includes: Ref. 18

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

825-1424

NUT,M24, Cl 8

hex, 24 mm - 3

1шт.

20

1955123C1

HOSE ASSY.

419 mm (16-1/2 inch) long, priority pilot inlet

1шт.

21

1955126C2

HOSE

641 mm (25-1/4 inch) long, steering pilot

1шт.

22

1955134C2

HOSE ASSY.

1588 mm (62-1/2 inch) long, steering supply

1шт.

23

1955135C1

HOSE ASSY.

953 mm (37-1/2 inch) long, priority valve supply

1шт.

24

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 25, 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 28, 29

4шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 31, 32

3шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adj O-ring boss, Incl Ref 40, 41

2шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

103118A1

SUPPORT ASSY.

trailer brake

1шт.

55

1955283C2

SUPPORT ASSY.

BRACKET - cable and valve mounting

1шт.

56

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full Thd

2шт.

58

1955333C1

HYD TUBE,10 mm OD

trailer brake valve return

1шт.

59

102562A1

TUBE,0.375" OD, 190, 35 mm Length

TUBE - trailer brake pilot

1шт.

60

102563A1

TUBE,0.5" OD, 70.17 mm Length

TUBE - trailer brake priority

2шт.

64

3072723R1

SPACER

clamp

1шт.

65

535307R1

CLAMP

tube

2шт.

66

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

67

832-41306

NUT,M6 x 1, Cl 10

1шт.

70

1348300C1

TUBE,0.5" OD, 104.2 mm Length

steering supply, Includes: Ref. 71

1шт.

71

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

72

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12 x 1.6 mm

1шт.

73

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

3/4-16 adj O-ring branch x 13/16-16 inch face x face

1шт.

74

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

75

1348540C1

CHECK VALVE

check

1шт.

76

106510A1

HYD TUBE,0.5" OD, 353.7,92.8 mm Length

TUBE - trailer brake pressure, prior to serial number JJA0064978

1шт.

76

102564A1

TUBE

TUBE - trailer brake pressure, serial number JJA0064978 and after

1шт.

77

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

ELBOW - 90 degree, 13/16-16 inch face seal x swivel face seal, used with 106510A1 tube, Includes: Ref. 78

1шт.

78

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

79

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, Includes: Ref. 80, 81

1шт.

80

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

82

1342026C2

PIPE

SLEEVE - corrugated, bulk, 32 (1-1/4) x 37 (1-7/16) x 565 mm (22-1/4 inch) long, replaces 1976749C1 sleeve

1шт.

83

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 84, 85

1шт.

85

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

86

1976746C1

HOSE,9.53mm ID x 533.4mm L, SAE 100R3

533 mm (21 inch) long

1шт.

Note there is a dealer installed hydraulic trailer brake kit available through the wholegoods system. part is 246117a1.

1шт.

87

195383A1

LARGE PLATE

PLATE, LARGE COVER - brake housing

1шт.

88

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

89

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

81

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

84

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 70
