Запчасти Case IH 8930 (6-100) - REAR WHEEL WEIGHT, P.I.N. JJA0083000 AND AFTER (06) - POWER TRAIN

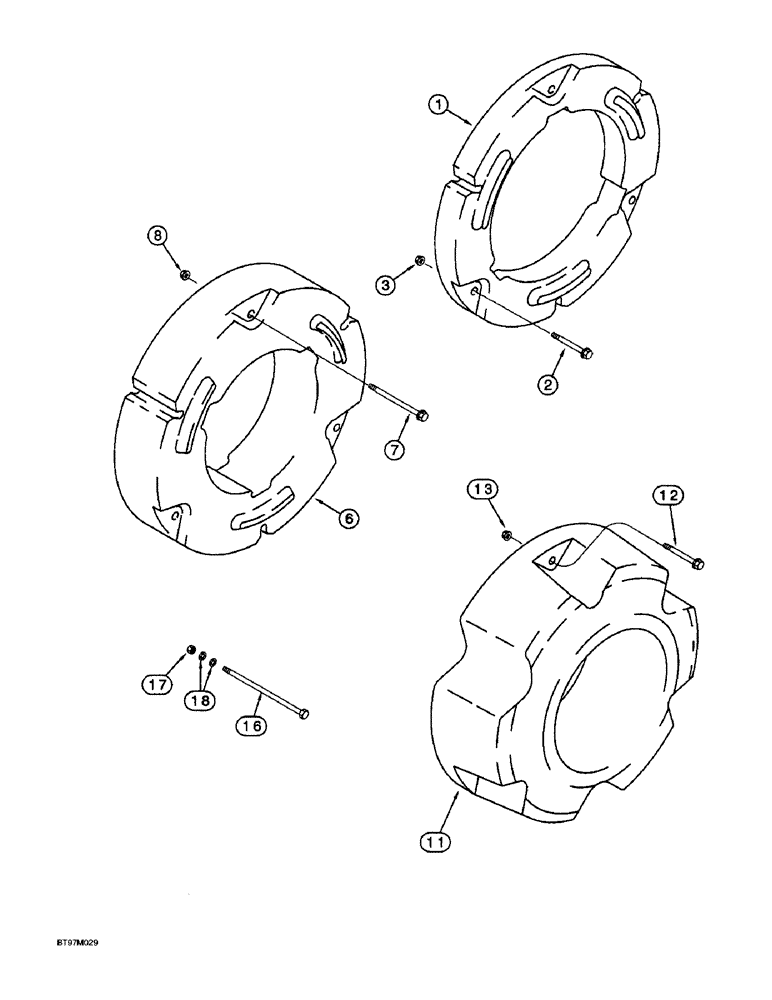

Схема запчастей Case IH 8930 - (6-100) - REAR WHEEL WEIGHT, P.I.N. JJA0083000 AND AFTER (06) - POWER TRAIN
8
12
11
7
13
16
18
17
1
2
3
6

Артикул

Название

Примечание

Количество

294441A1

WEIGHT, WHEEL

WHEEL WEIGHT KIT - rear, 200 lb, order from Machinery Price List, Includes: Ref. 1, 2, 3

1шт.

Weight kit mounts weight to wheel.

1шт.

1

291595A1

WEIGHT

rear wheel, 200 lb, order complete kit from Machinery Price List

2шт.

2

844-16110

BOLT,Hvy Hex, M16 x 110mm, Cl 8.8

BOLT - heavy hex flange, 16 - 2.0 x 110 mm, replaces 905-16110 bolt

6шт.

3

829-2416

FLANGE NUT,M16 x 2, Flg, Cl 10

6шт.

294442A1

WEIGHT, WHEEL

WHEEL WEIGHT KIT - rear, 500 lb, order from Machinery Price List, Includes: Ref. 6, 7, 8

1шт.

Weight kit mounts weight to wheel.

1шт.

6

221481A2

WEIGHT

rear wheel, 500 lb, order complete kit from Machinery Price List

2шт.

7

844-16180

BOLT,Hex, M16 x 180mm, Cl 8.8

BOLT - hex flange, 16 - 2.0 x 180 mm, class 8.8

6шт.

8

829-2416

FLANGE NUT,M16 x 2, Flg, Cl 10

6шт.

294443A1

WEIGHT, WHEEL

WHEEL WEIGHT KIT - rear, 1000 lb, order from Machinery Price List, Includes: Ref. 11, 12 ,13

1шт.

Weight kit mounts weight to wheel.

1шт.

11

199403A2

WEIGHT

rear wheel, 1000 lb, order complete kit from Machinery Price List

2шт.

12

844-16110

BOLT,Hvy Hex, M16 x 110mm, Cl 8.8

BOLT - heavy hex flange, 16 - 2.0 x 110 mm, replaces 905-16110 bolt

6шт.

13

829-2416

FLANGE NUT,M16 x 2, Flg, Cl 10

6шт.

297751A1

WHEEL

KIT - dual rear weight, 500 lb, order from Machinery Price List, Includes: Ref. 6, 7, 8

1шт.

Weight kit mounts weight to wheel.

1шт.

6

221481A2

WEIGHT

rear wheel, 500 lb, order complete kit from Machinery Price List

2шт.

7

844-16180

BOLT,Hex, M16 x 180mm, Cl 8.8

BOLT - hex flange, 16 - 2.0 x 180 mm

6шт.

8

829-2416

FLANGE NUT,M16 x 2, Flg, Cl 10

6шт.

297752A1

WHEEL

KIT - dual weight, 1000 lb, order from Machinery Price List, Includes: Ref. 11, 12, 13

1шт.

Weight kit mounts weight to wheel.

1шт.

11

199403A2

WEIGHT

rear wheel, 1000 lb, order complete kit from Machinery Price List

2шт.

12

844-16110

BOLT,Hvy Hex, M16 x 110mm, Cl 8.8

BOLT - heavy hex flange, 16 - 2.0 x 110 mm

6шт.

13

829-2416

FLANGE NUT,M16 x 2, Flg, Cl 10

6шт.

16

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch (Used to mount 200 lb weight to 200 or 500 lb weight)

6шт.

16

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

hex, 5/8 NC x 8-1/2 inch (Used to mount 500 lb weight to 200 or 500 lb weight)

6шт.

17

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

hex flange, 5/8 inch NC

6шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

12шт.

Выбрано товаров: 29
